Powertrain Control Module (PCM)
Download the full database via torrent (~1.1 TB)

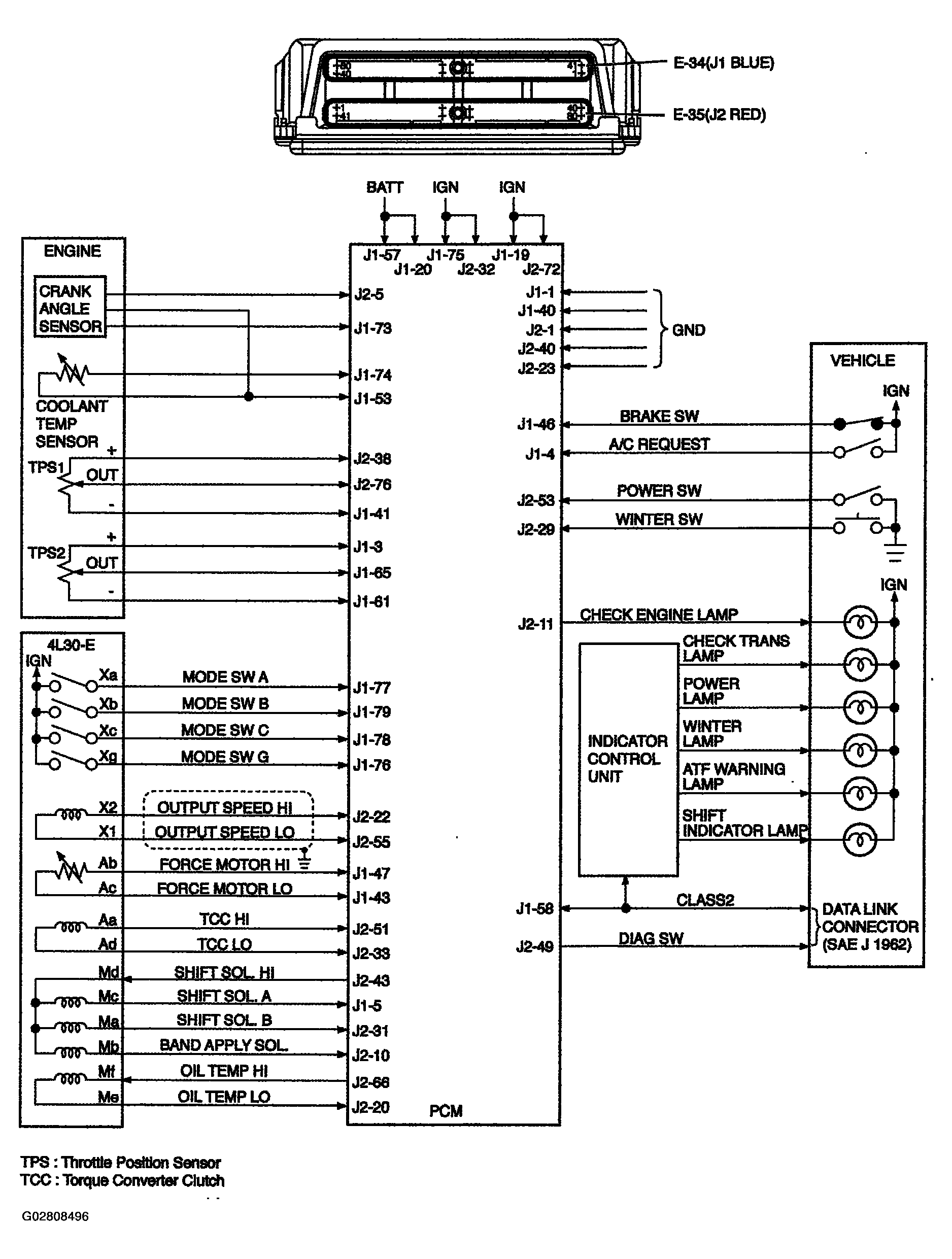

Fig 1: Identifying Powertrain Control Module (PCM)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
