Battery Terminal Under Load Test

To check battery terminal voltage under load, connect voltmeter across battery terminals and operate starter. See Fig 1 . If voltmeter reads about 10 volts, go to next test. A voltage reading of less than 10 volts indicates excessive current flow in circuit. Remove starter for bench testing. See BENCH TESTING  .

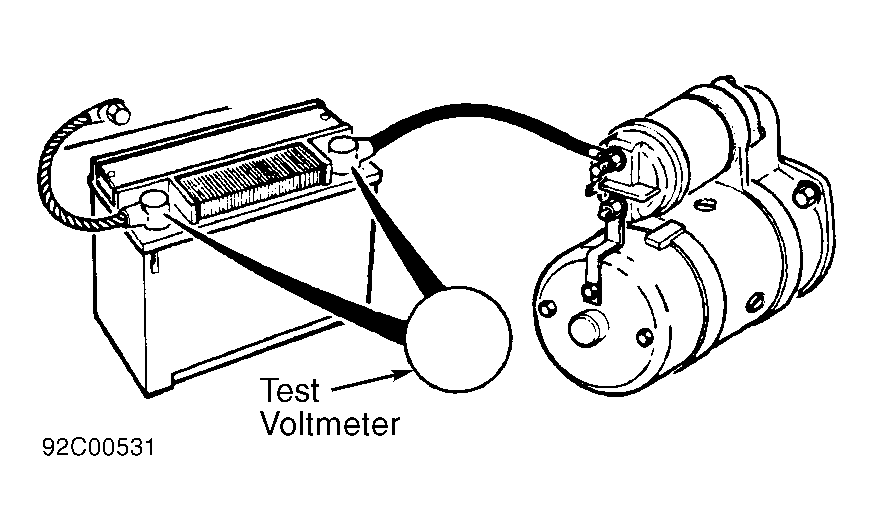

Fig 1: Testing Battery Terminal Voltage Under Load

Courtesy of JAGUAR CARS, INC.
