Engine Specifications

Download the full database via torrent (~1.1 TB)

3.7L ENGINE

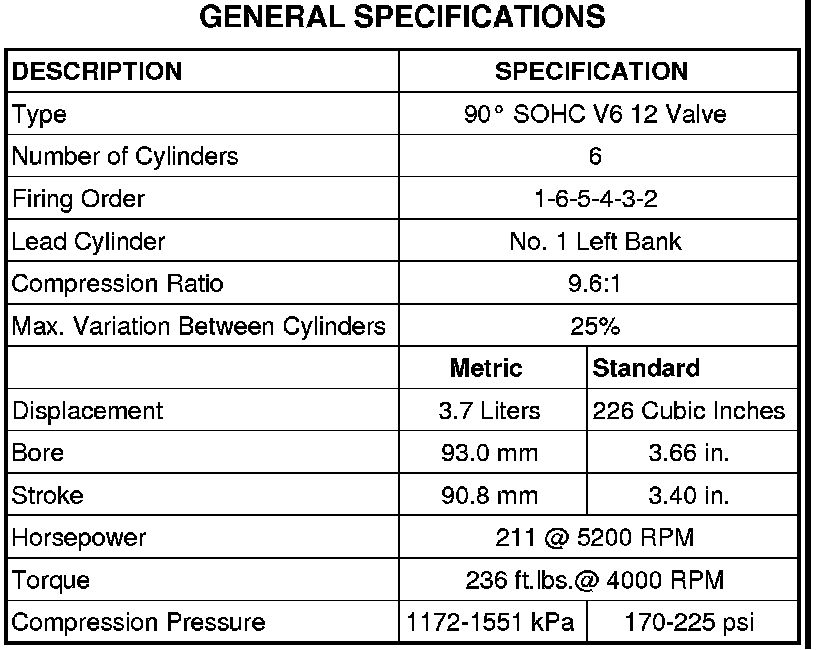

General Specifications:

Cylinder Block:

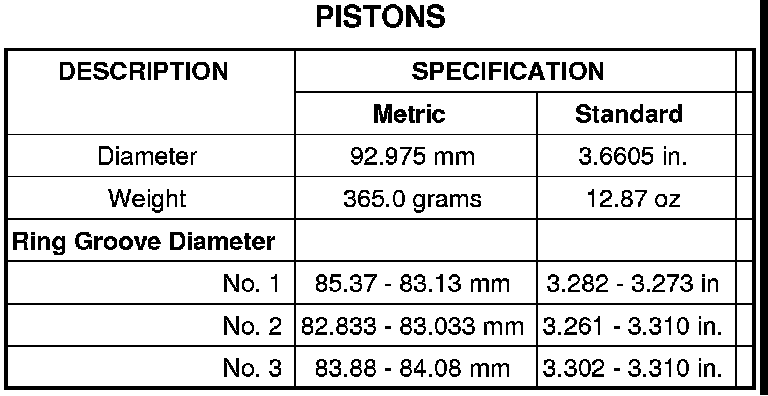

Pistons:

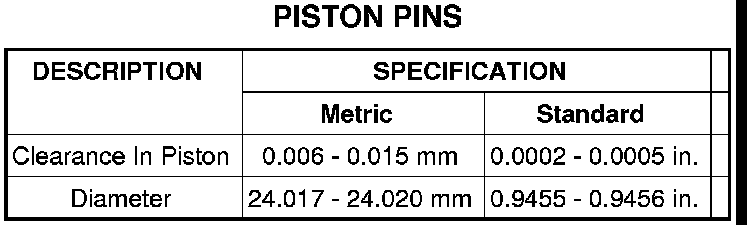

Piston Pins:

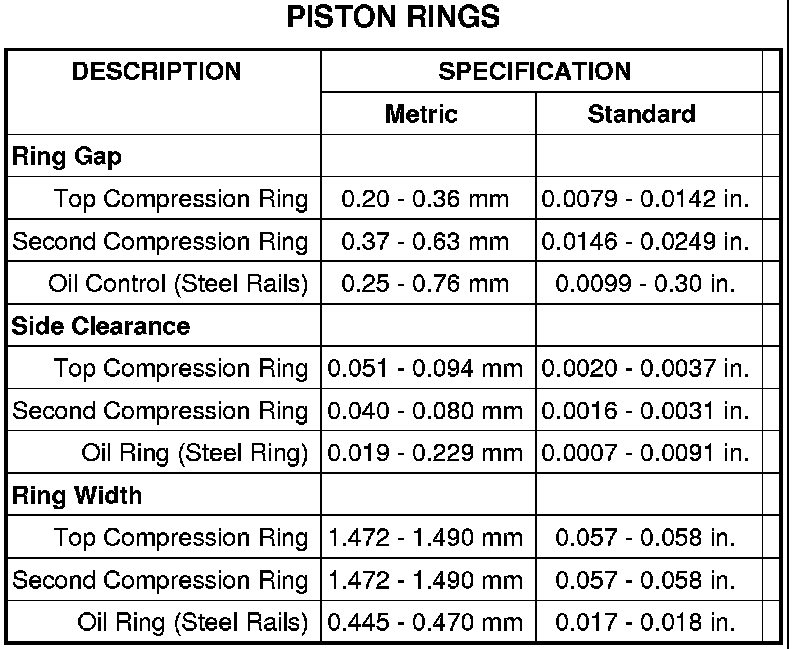

Piston Rings:

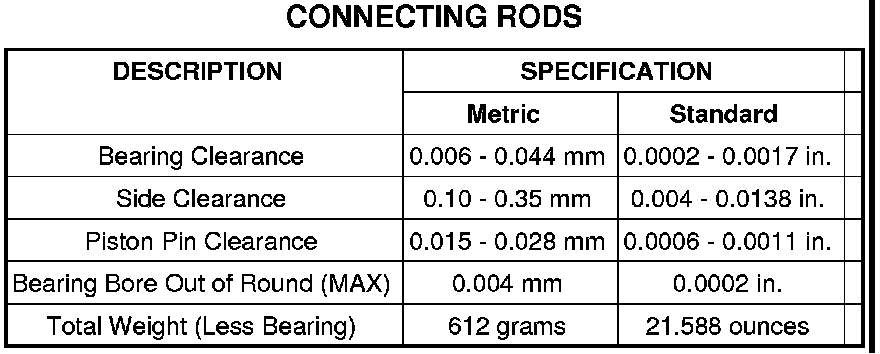

Connecting Rods:

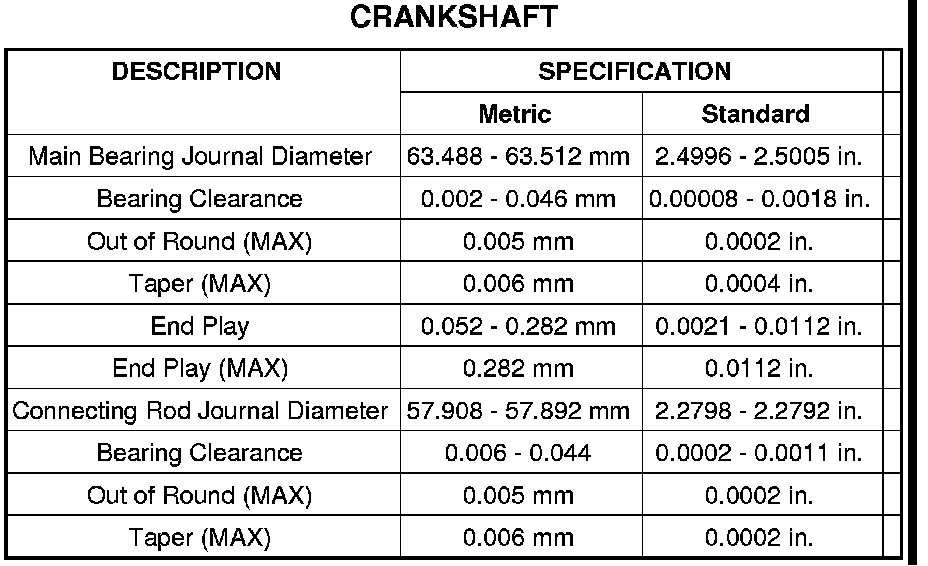

Crankshaft:

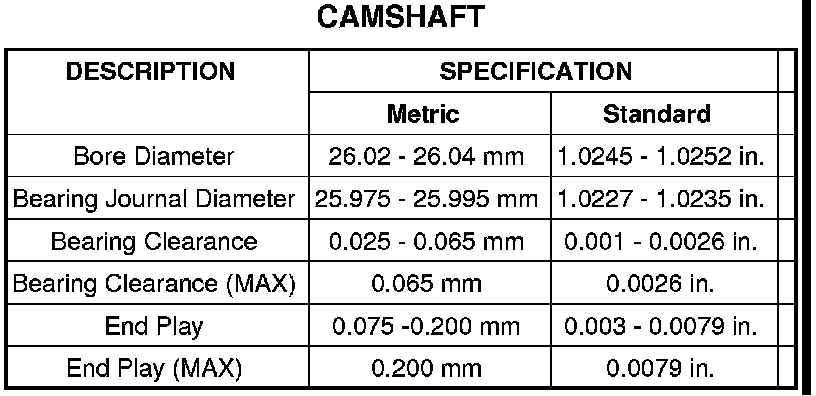

Camshaft:

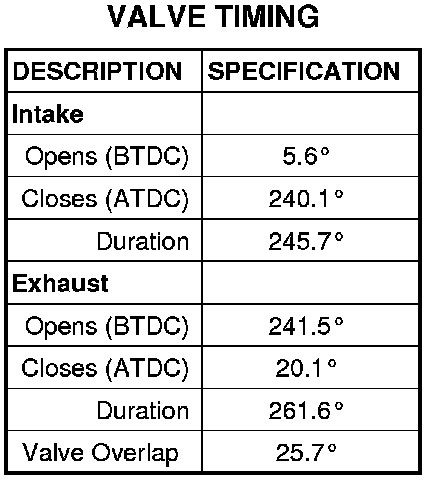

Valve Timing:

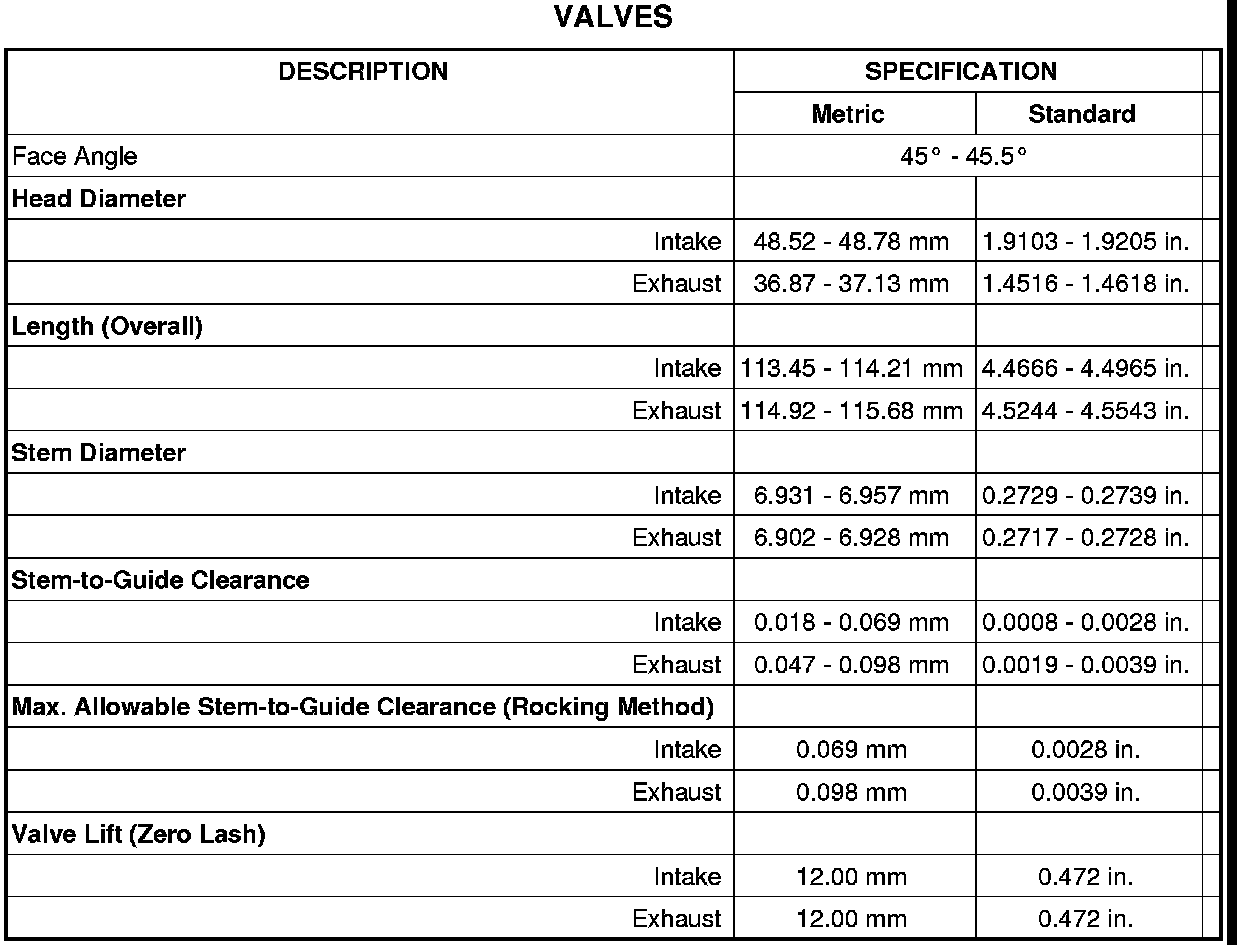

Valves:

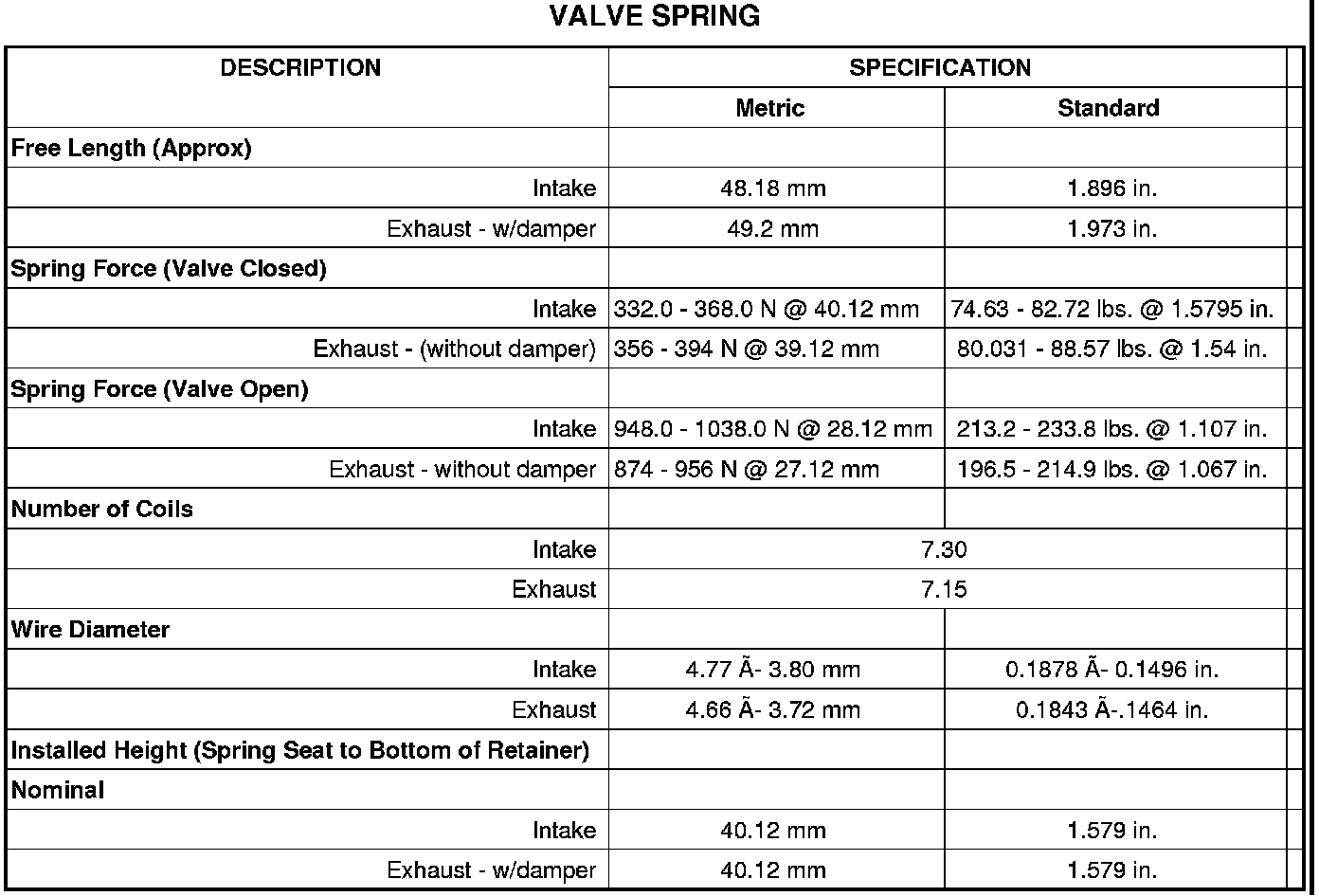

Valve Spring:

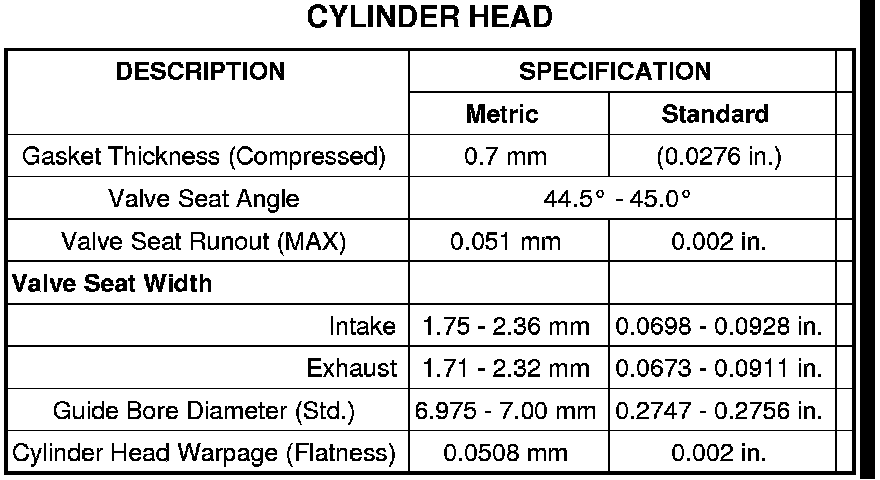

Cylinder Head:

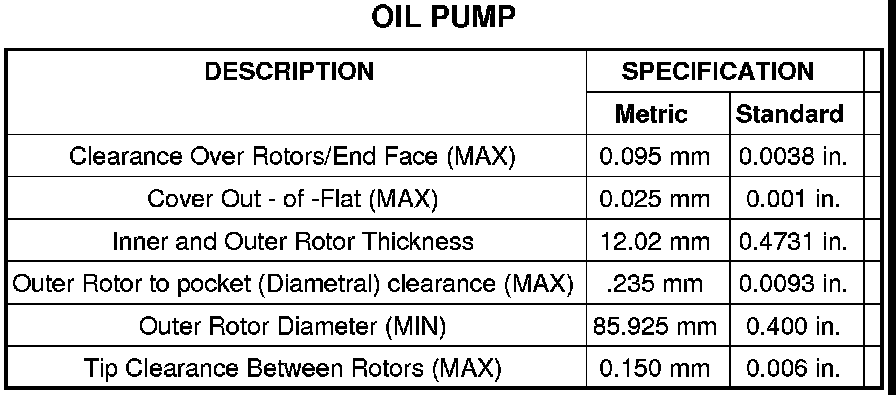

Oil Pump:

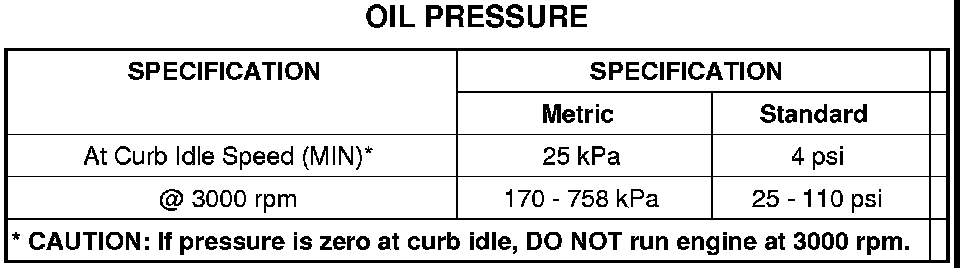

Oil Pressure:
