Transmission Control Module - Installation

Download the full database via torrent (~1.1 TB)

INSTALLATION

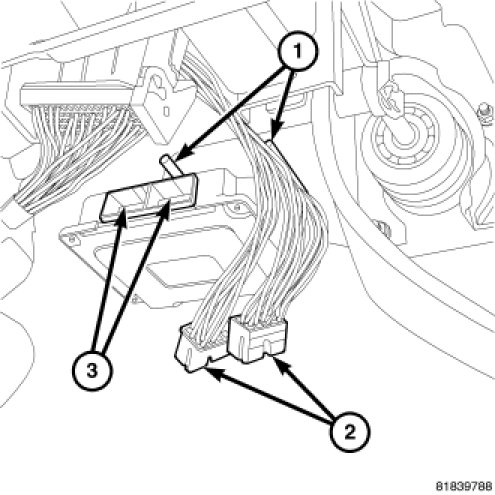

1. Install TCM mounting bracket holes (1) over the two studs on the bulkhead.

2. Install the two nuts to mounting studs (1) on the bulkhead and tighten to 15 Nm (130 in. lbs.).
3. Plug in electrical connectors (2) to TCM (3).

NOTE: If a new TCM is installed a learn procedure must be performed.
