Control Module, Transfer Case
Control Module, Transfer Case
Download the full database via torrent (~1.1 TB)

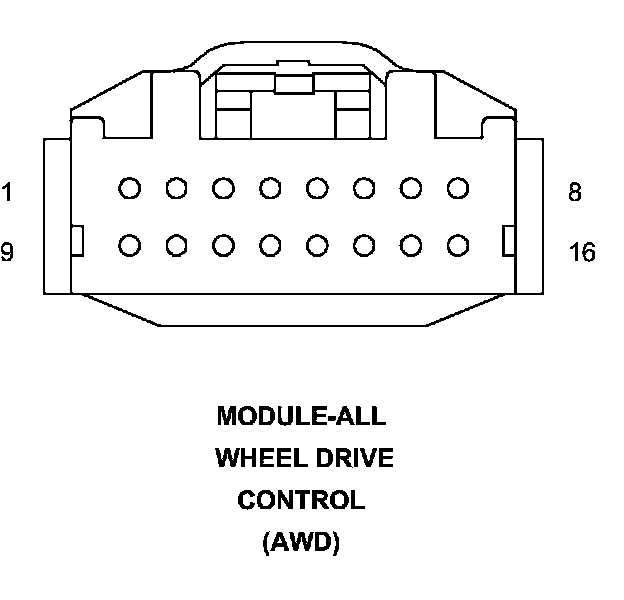

Connector (AWD) - (BODY) 16 WAY

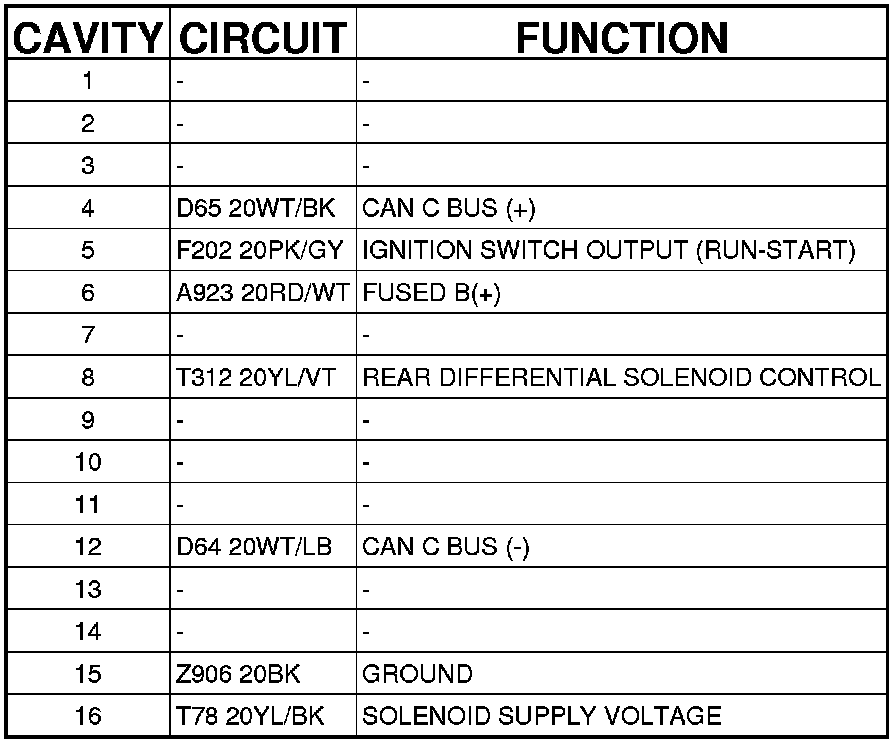

MODULE-ALL WHEEL DRIVE CONTROL (AWD) - (BODY) 16 WAY
