Power Distribution Module: Locations

Download the full database via torrent (~1.1 TB)

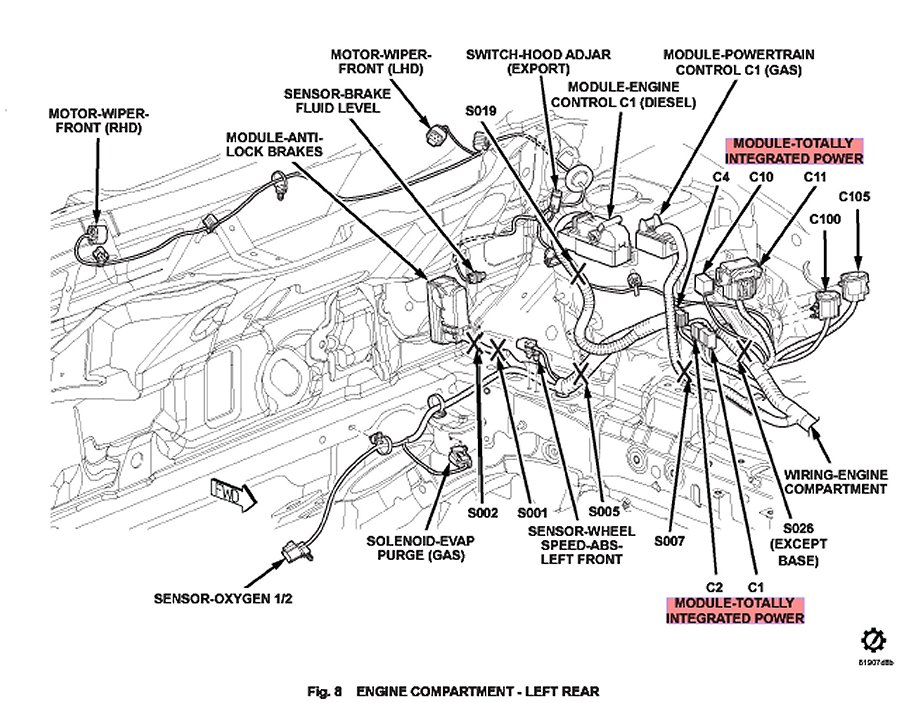

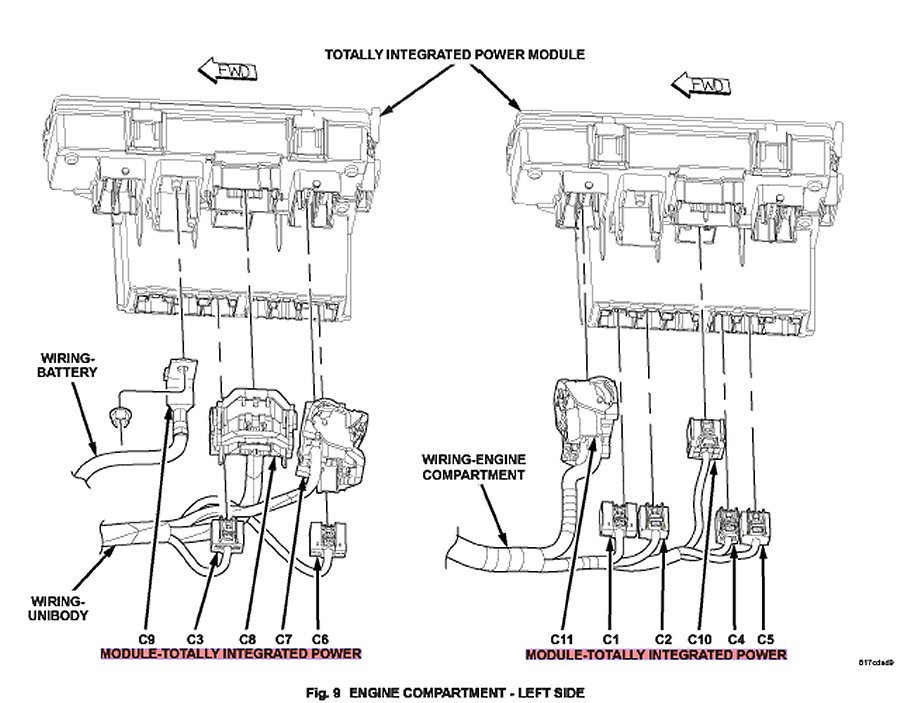

Totally Integrated Power Module (TIPM)
