Wheel Alignment

Download the full database via torrent (~1.1 TB)


Alignment Specifications

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set with the vehicle at curb height. Refer to Ride Height

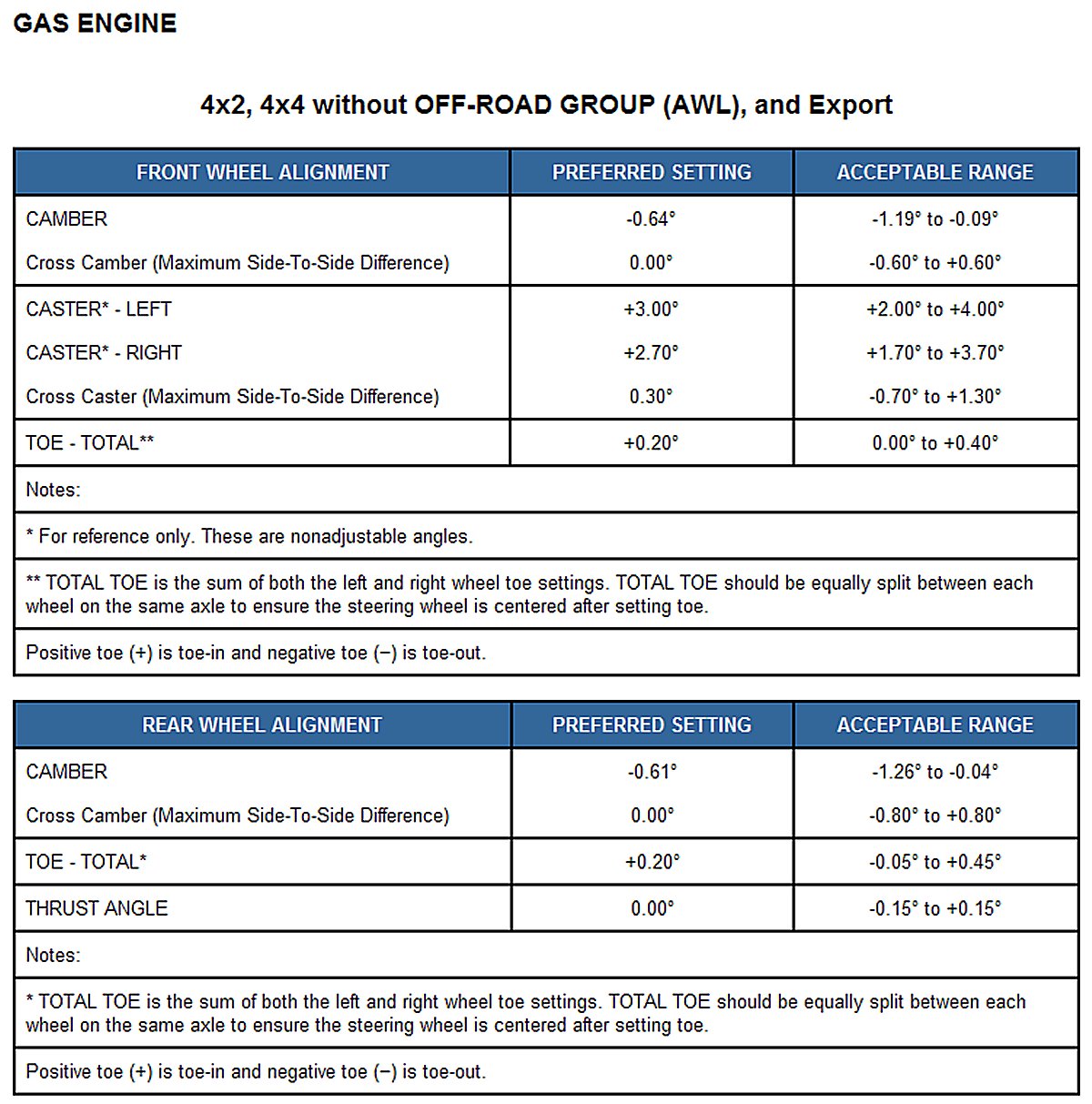

4X2, 4X4 without Off-Road Group (AWL), and Export

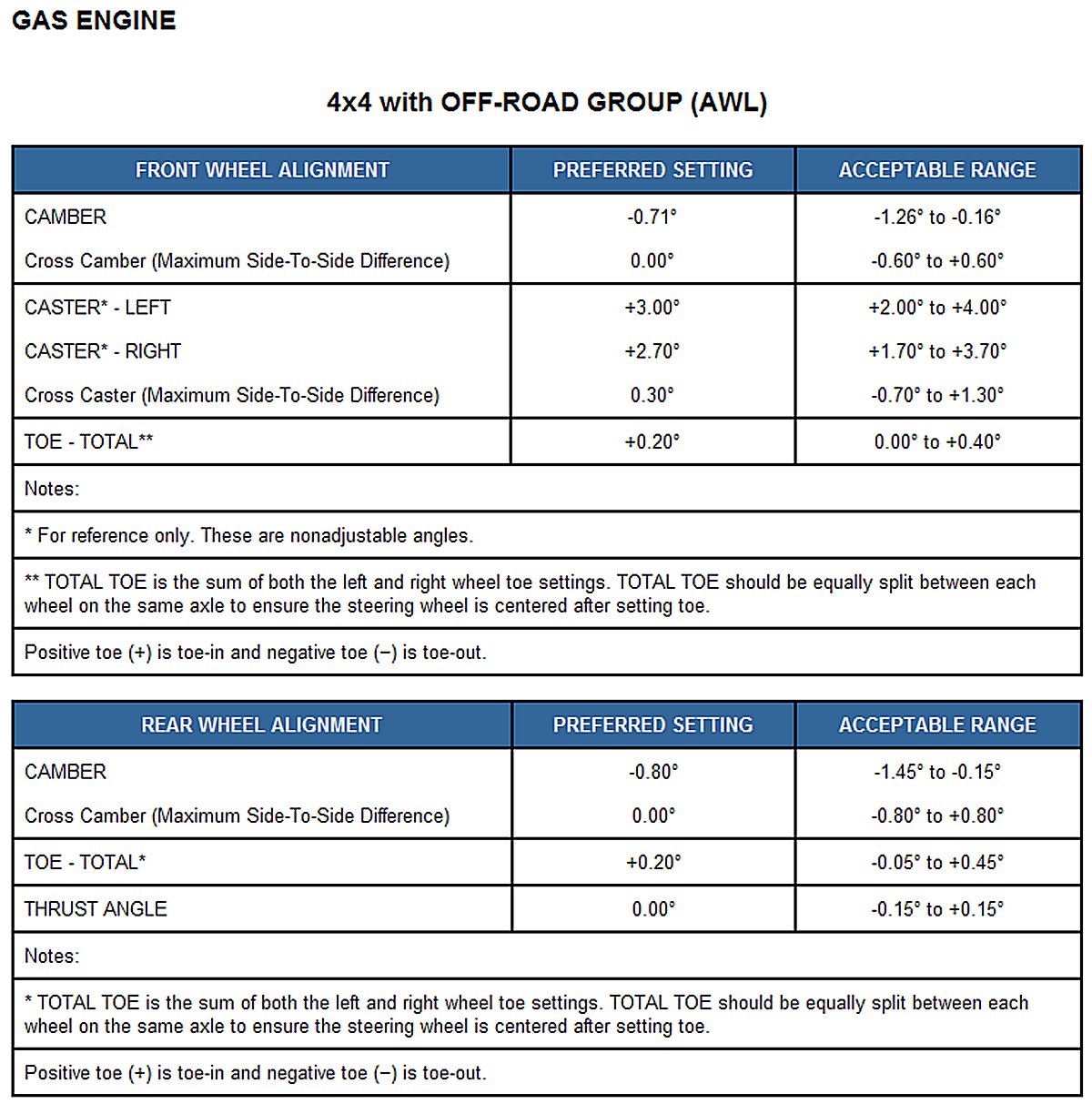

4X4 with Off-Road Group (AWL)
