Timer/Control Unit: Service and Repair

ELECTRONIC TIME AND ALARM CONTROL SYSTEM

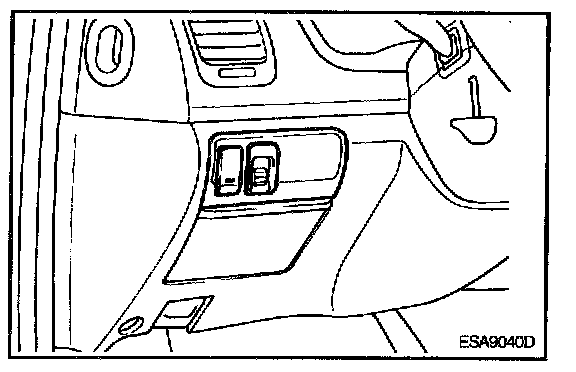

1. Remove the lower crash panel.

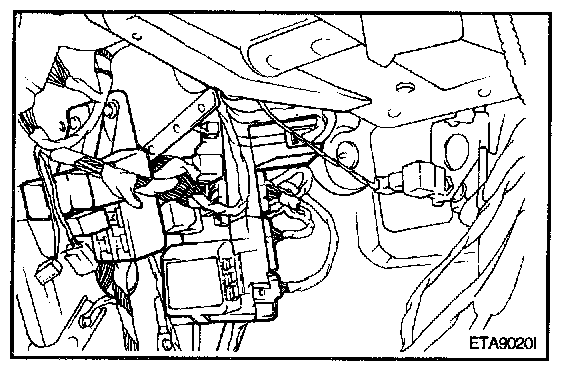

2. Remove the ETACM from the junction block and disconnect the connectors.
3. Installation is the reverse of removal.
