Charging Systems: General: Generator: Inspection: Rectifier

Check for continuity between each diode with an ohmmeter.

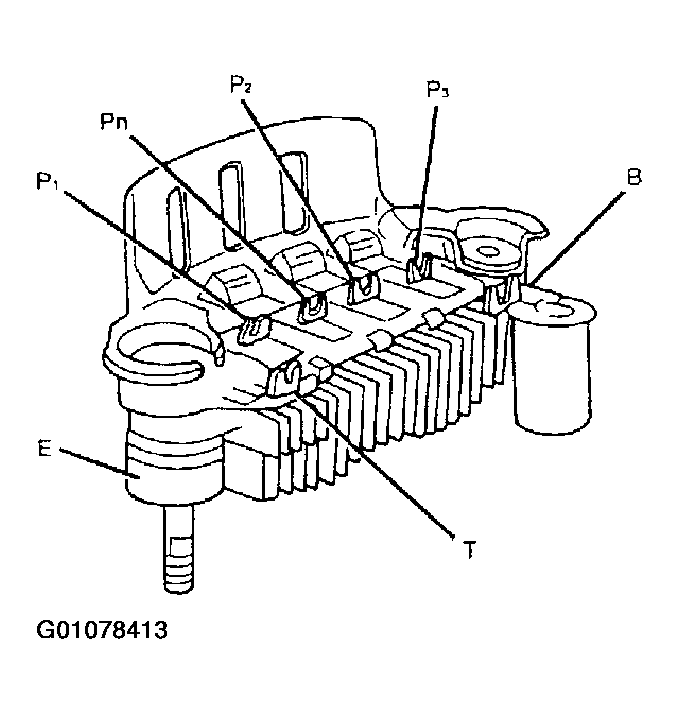

Fig 1: Checking For Continuity Between Each Diode
Courtesy of KIA MOTORS AMERICA, INC.
Replace if necessary.

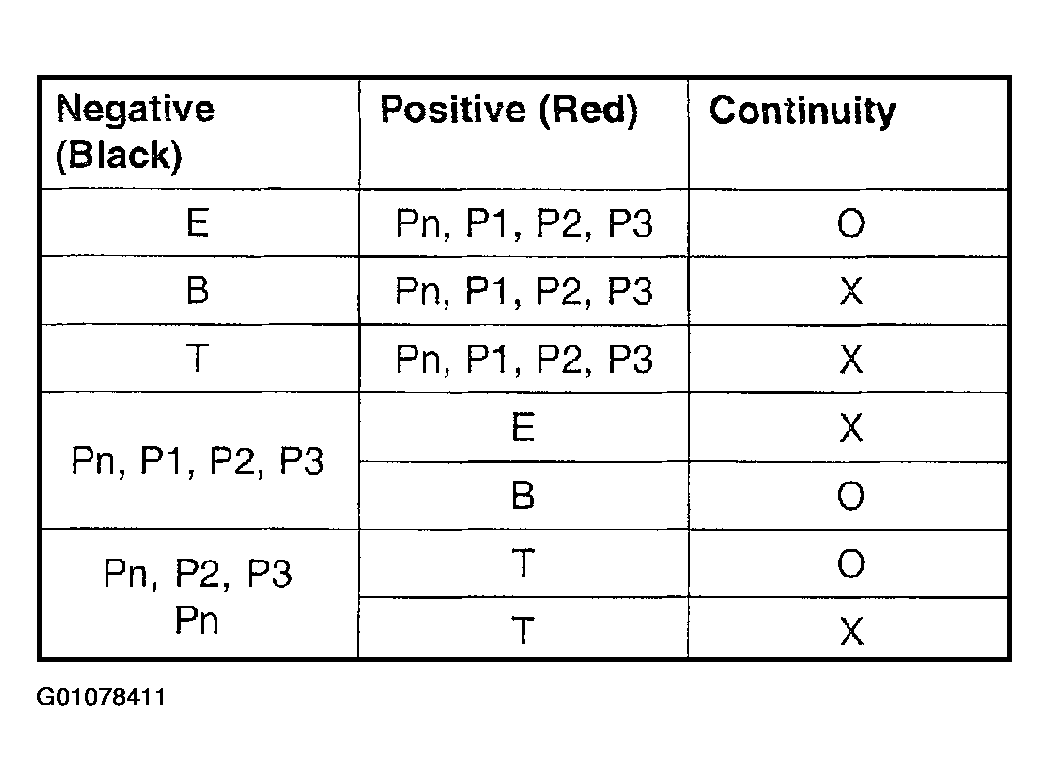

Fig 2: Identifying Diode Circuits & Terminals (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

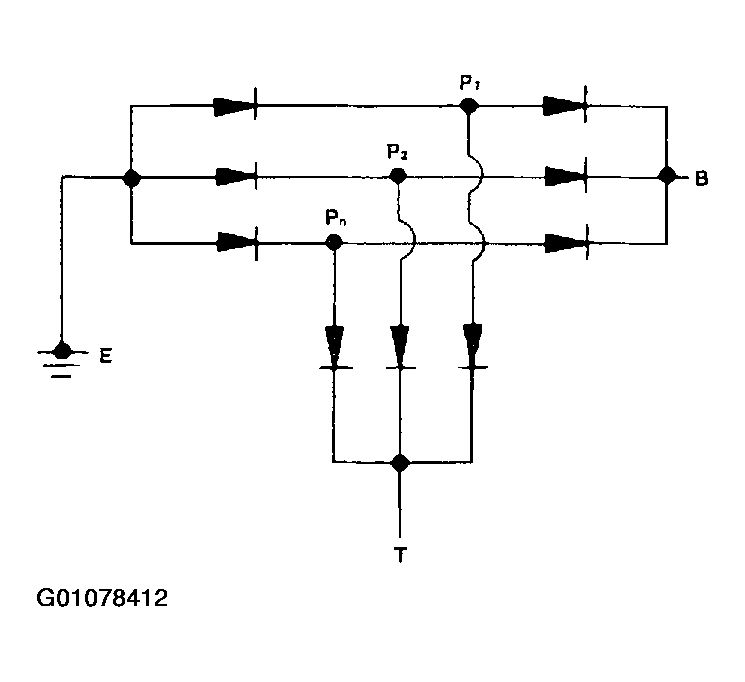

Fig 3: Identifying Diode Circuits & Terminals (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
