Cruise Control Module: Testing and Inspection

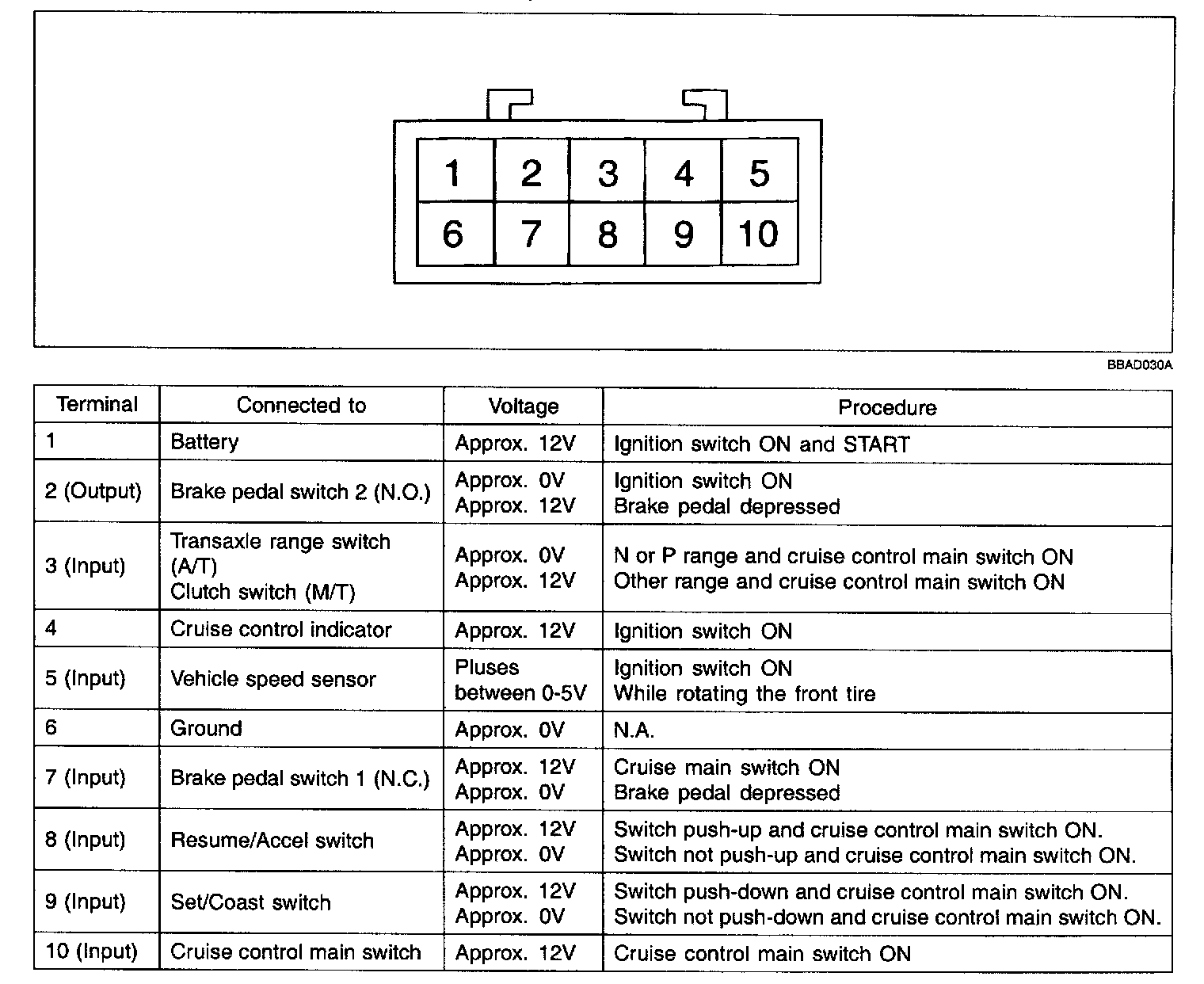

INSPECTION1. Connect a voltmeter between cruise control unit terminals and ground (Connector Q01 connected)
2. Turn ignition switch "ON" and check that terminal voltages are as described.
1. Connect a voltmeter between cruise control unit terminals and ground (Connector Q01 connected)
2. Turn ignition switch "ON" and check that terminal voltages are as described.
