Home >> Kia >> 2004 >> Spectra L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cooling System

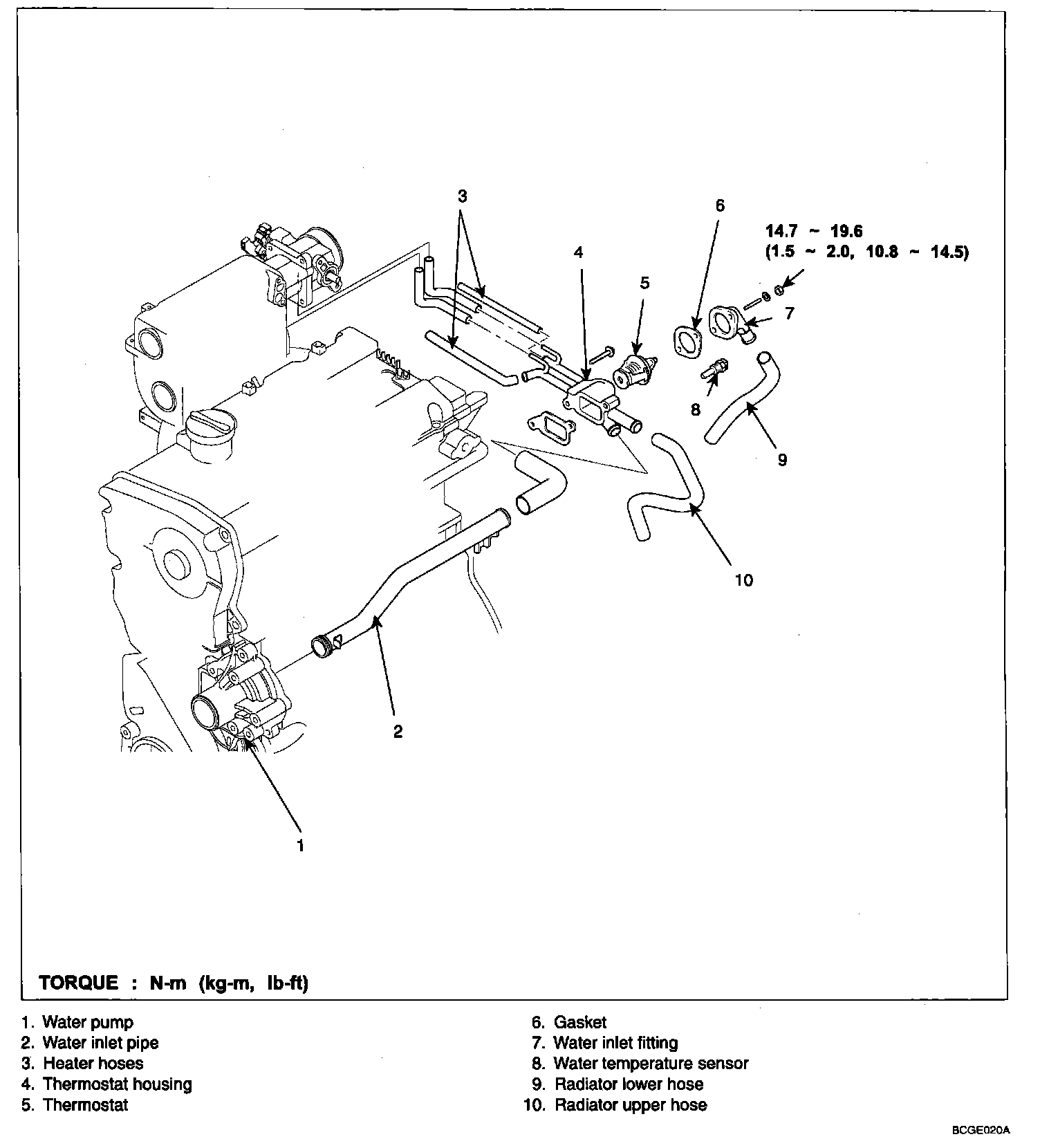

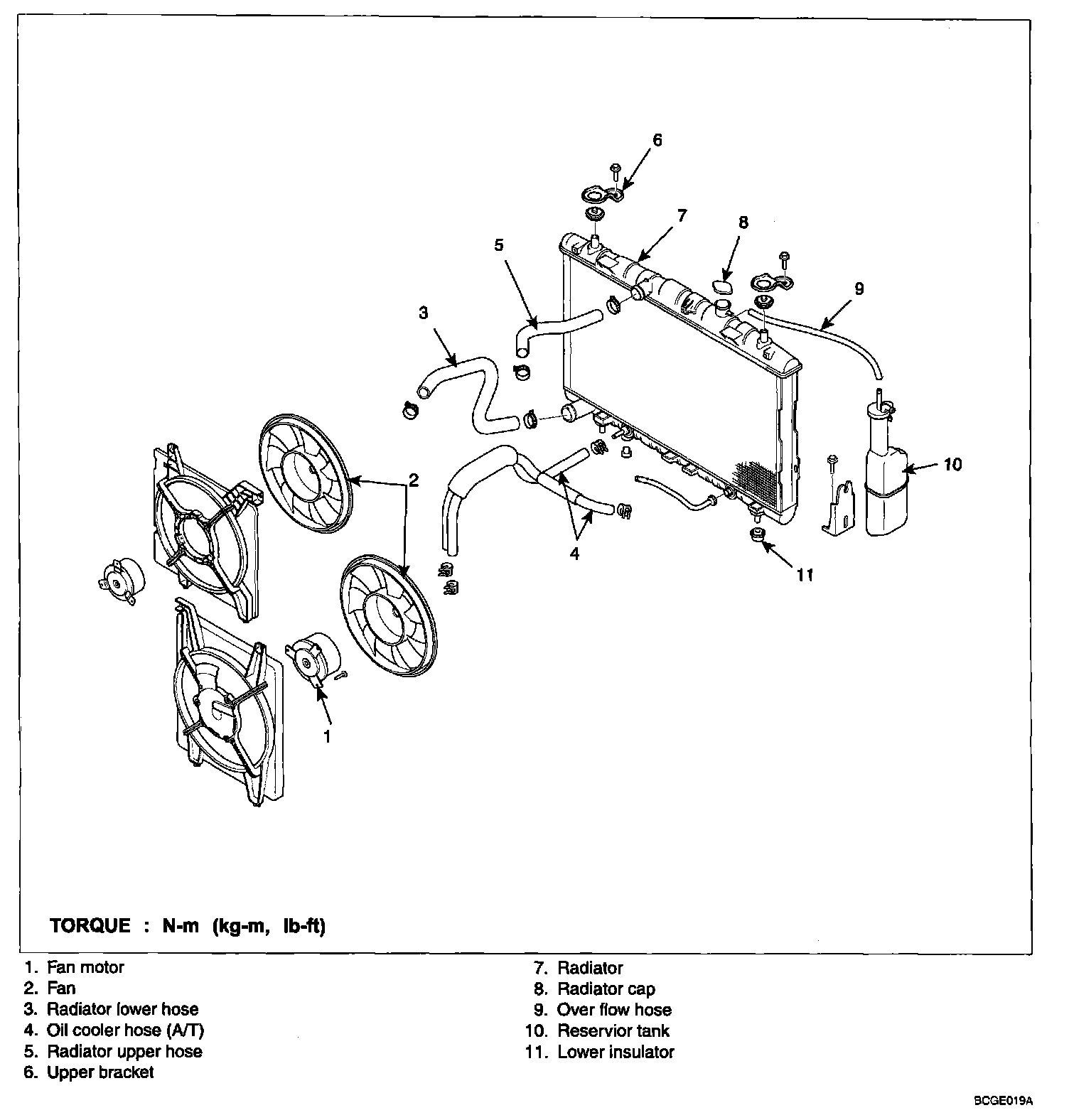

Cooling System

Download the full database via torrent (~1.1 TB)

Part 1:



Part 2:
