Knock Sensor: Installation

Download the full database via torrent (~1.1 TB)
  1. Install sensor and tighten bolt.
  2. Install wire harness.
  3. Reinstall intake manifold support bracket.

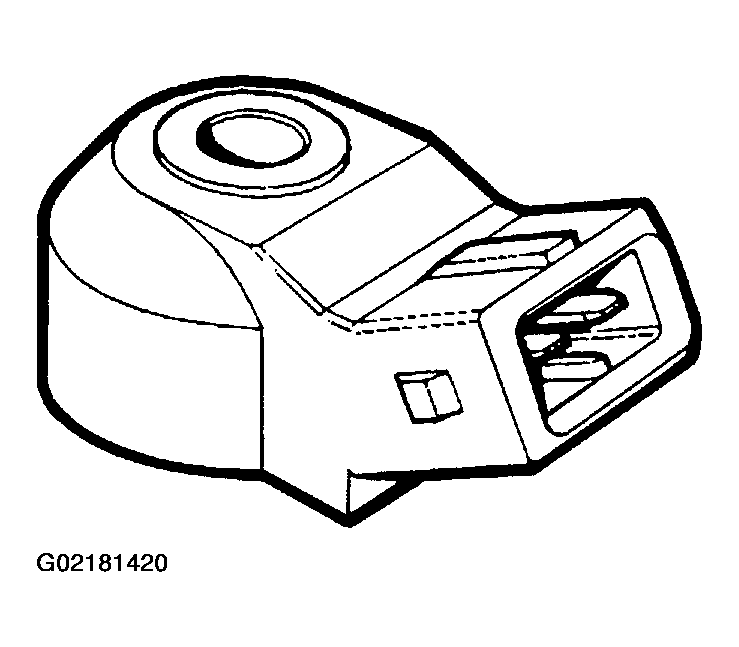

    Fig 1: Illustrating Connector
    G02181420Courtesy of KIA MOTORS AMERICA, INC.
