Scan Tool Testing and Procedures

TROUBLE DIAGNOSTICS WHEN USING DIAGNOSIS TOOL

1. The BCM is supported by the diagnostic tool.
The diagnosis tool is used to review input/output values and drive actuators.
2. Use the appropriate diagnosis tool functions to access the BCM.

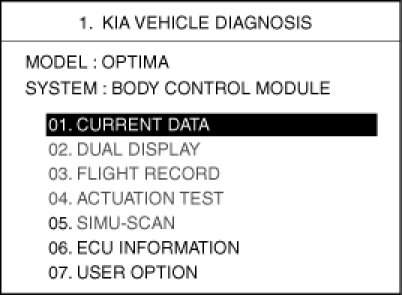

3. To consult the present input/out value of BCM, "02. INPUT/OUTPUT MONITORING". It provides information of BCM input/output conditions of power supply, turn signal/brake lamp, headlamp, door, locks, outside mirror, wiper, auto-light and transmitters etc.

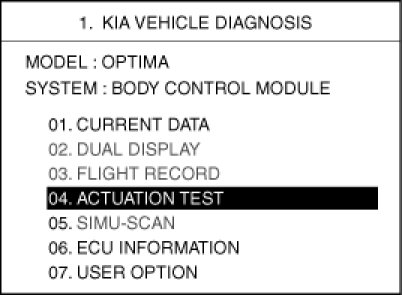

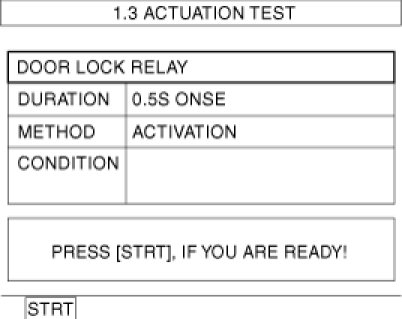

4. Select "04. ACTUATION TEST".
