Brad's Car Manuals
: A 3rd party mirror of CHARM + LEMON car manuals
Home
>>
Kia
>>
2008
>>
Optima L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Engine Control Module
Engine Control Module
Download the full database via torrent (~1.1 TB)

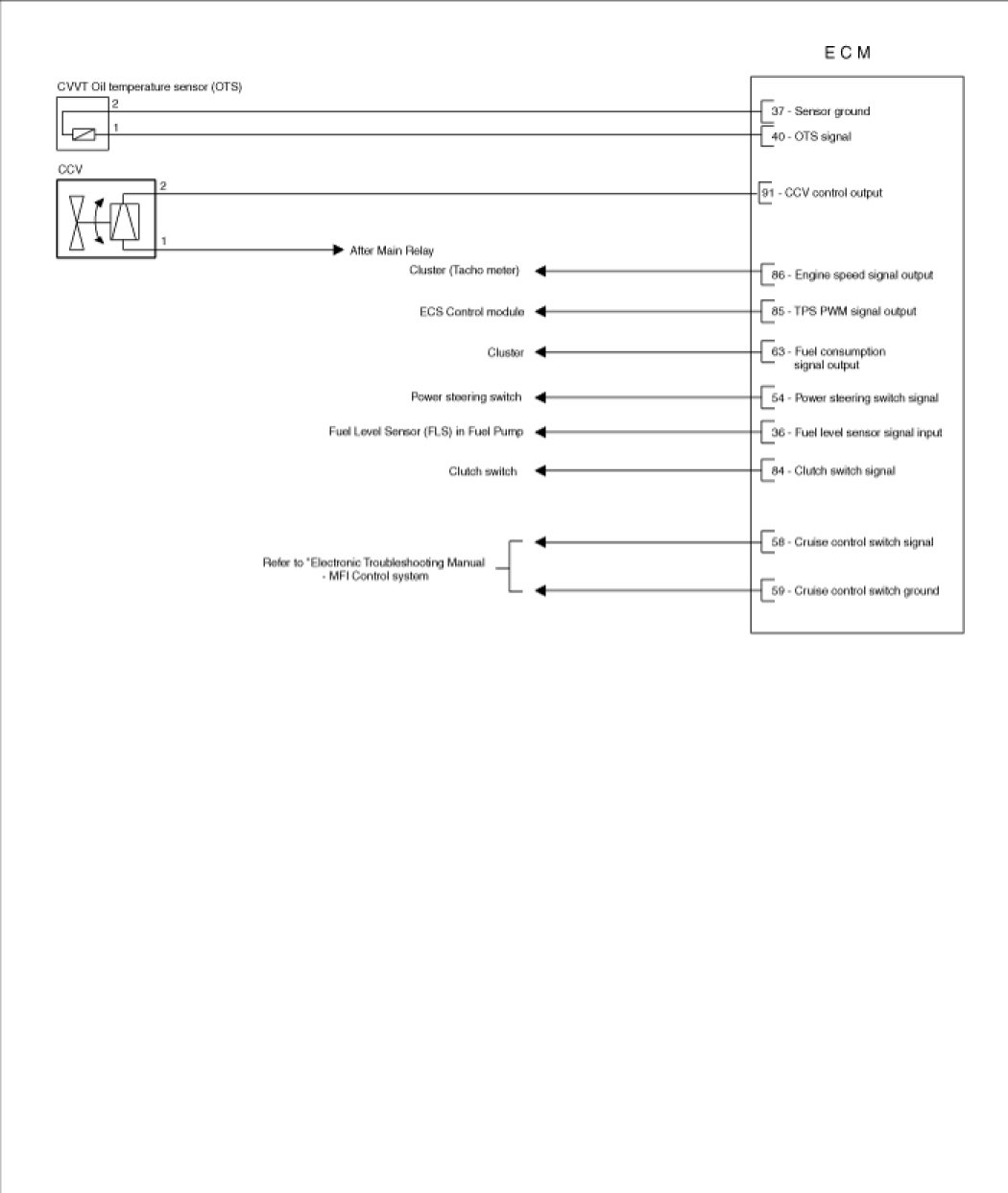

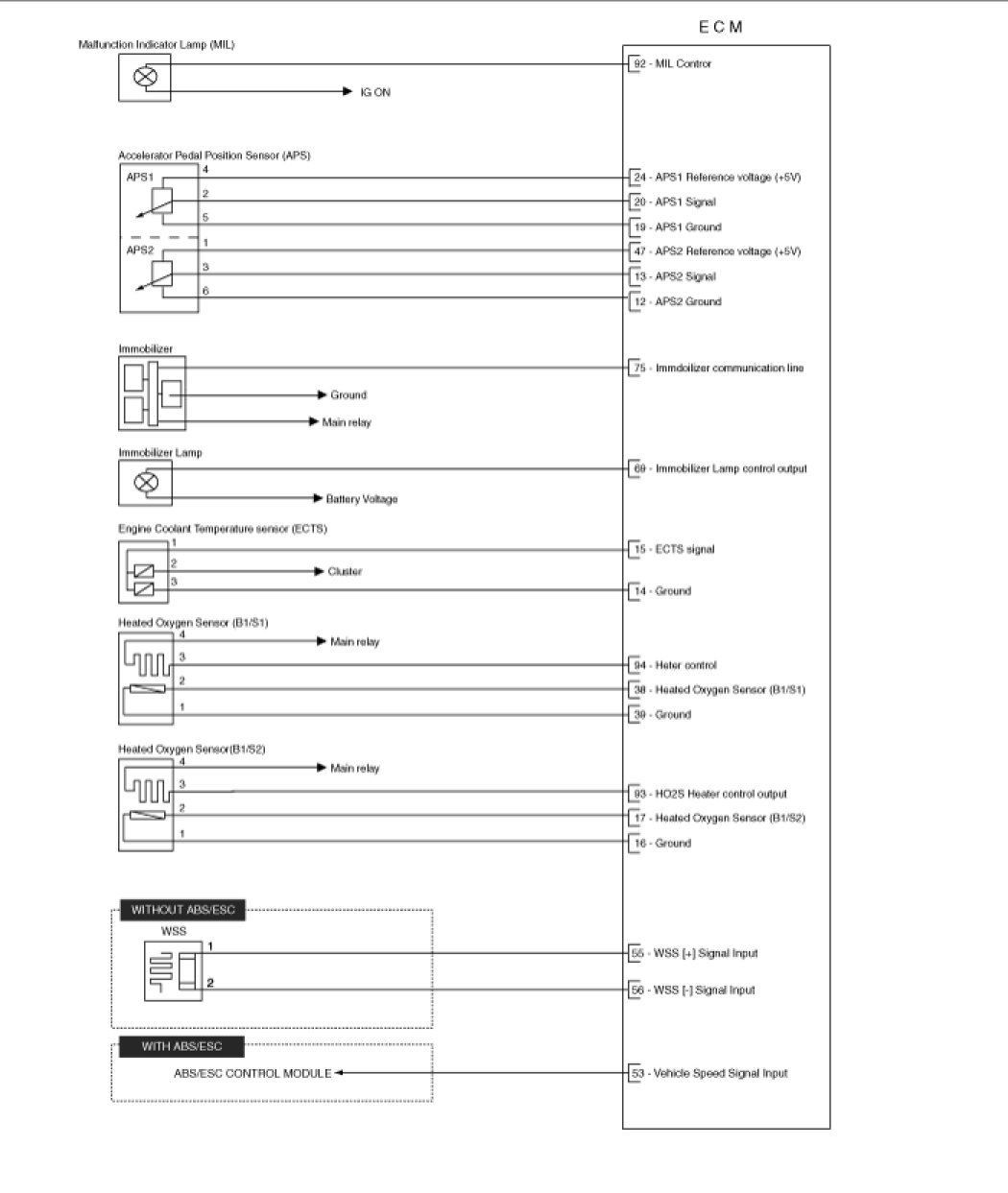

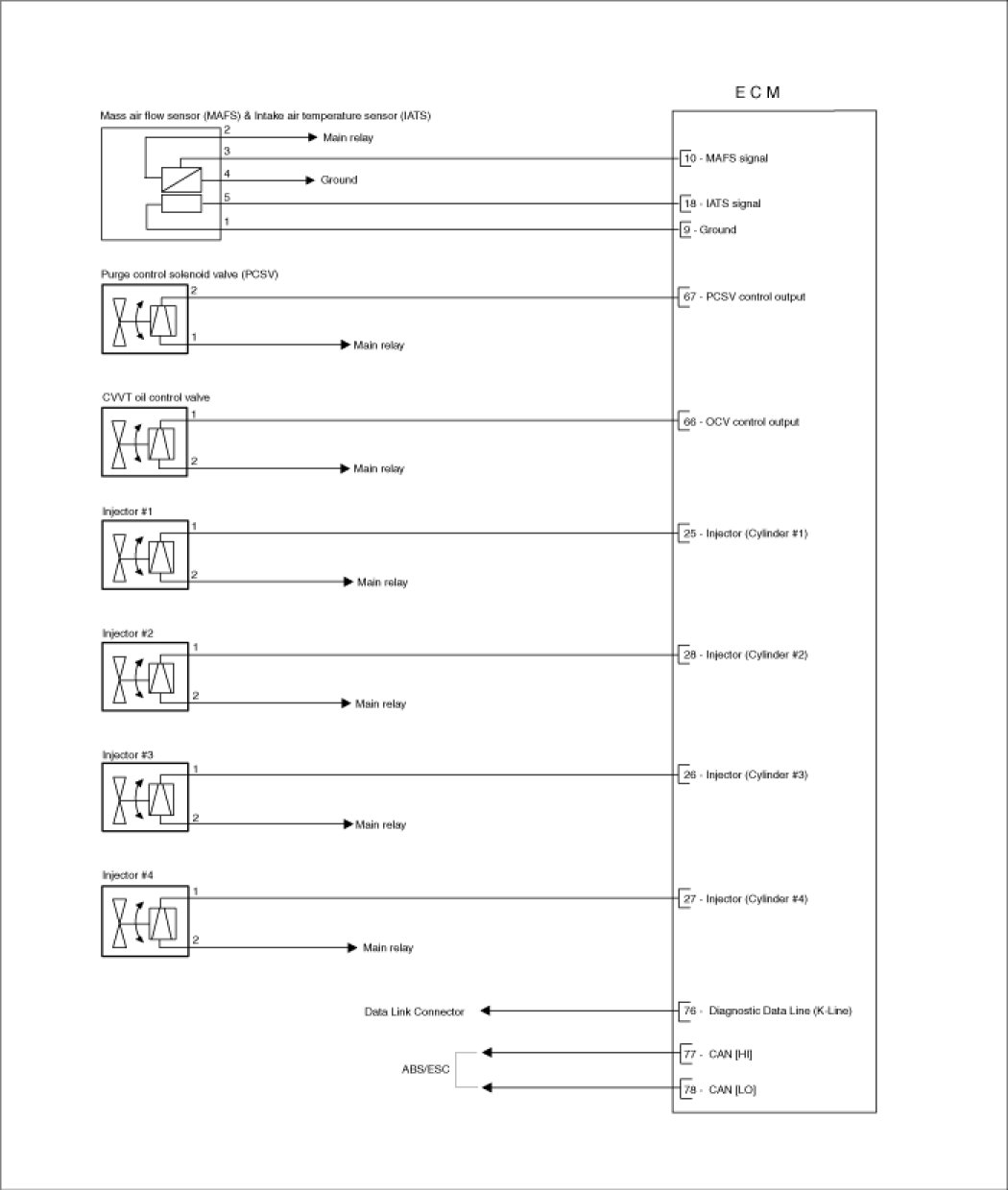

CIRCUIT DIAGRAM
