Alignment: Specifications

Download the full database via torrent (~1.1 TB)




SPECIFICATIONS

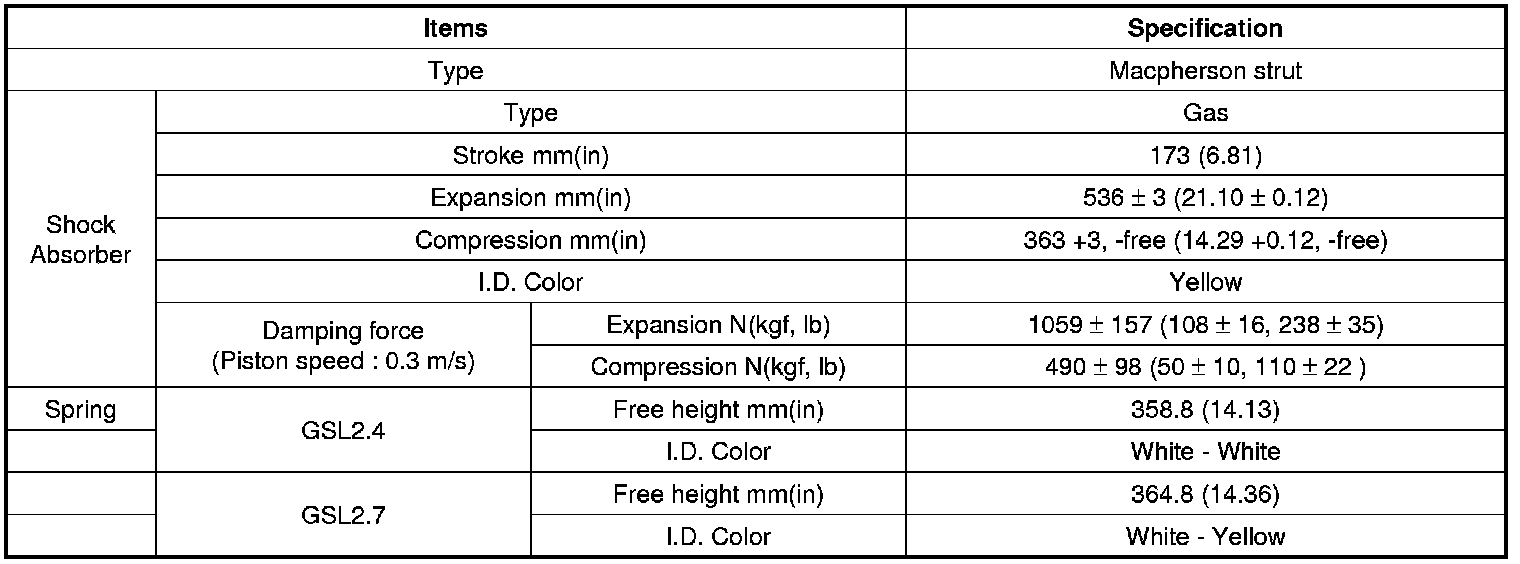

FRONT SUSPENSION SYSTEM

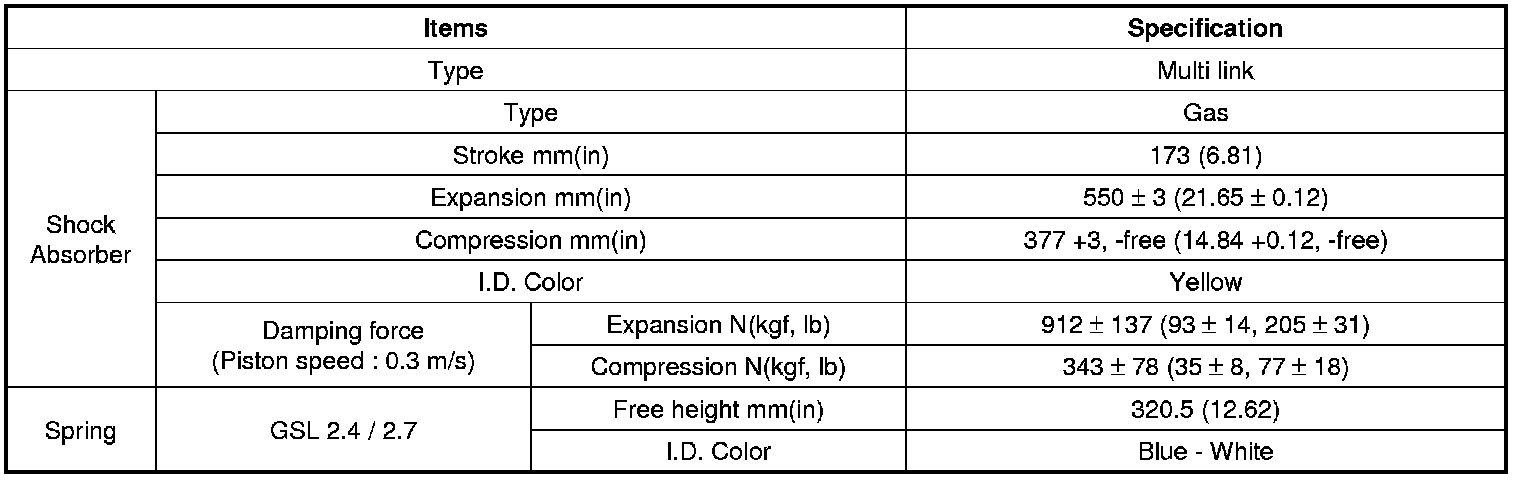

REAR SUSPENSION SYSTEM





WHEELS AND TIRES

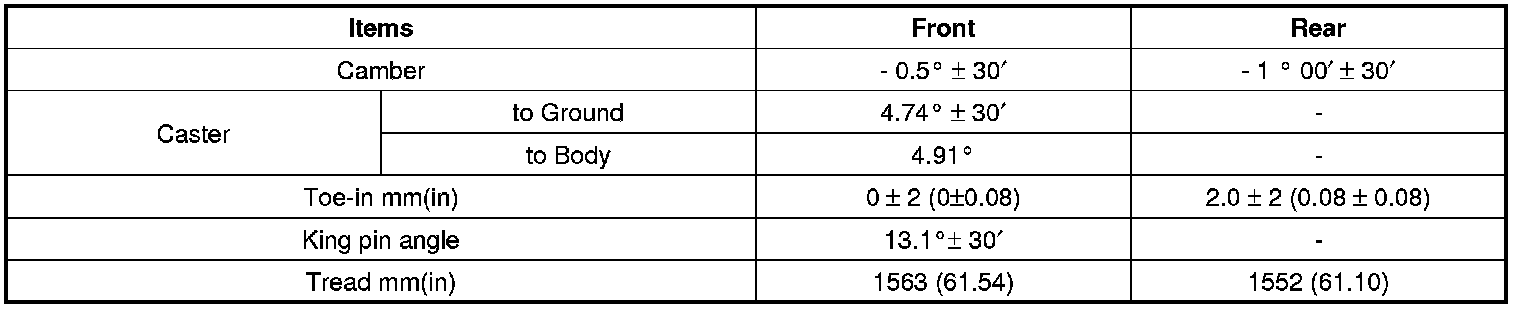

WHEEL ALIGNMENT






TIGHTENING TORQUE

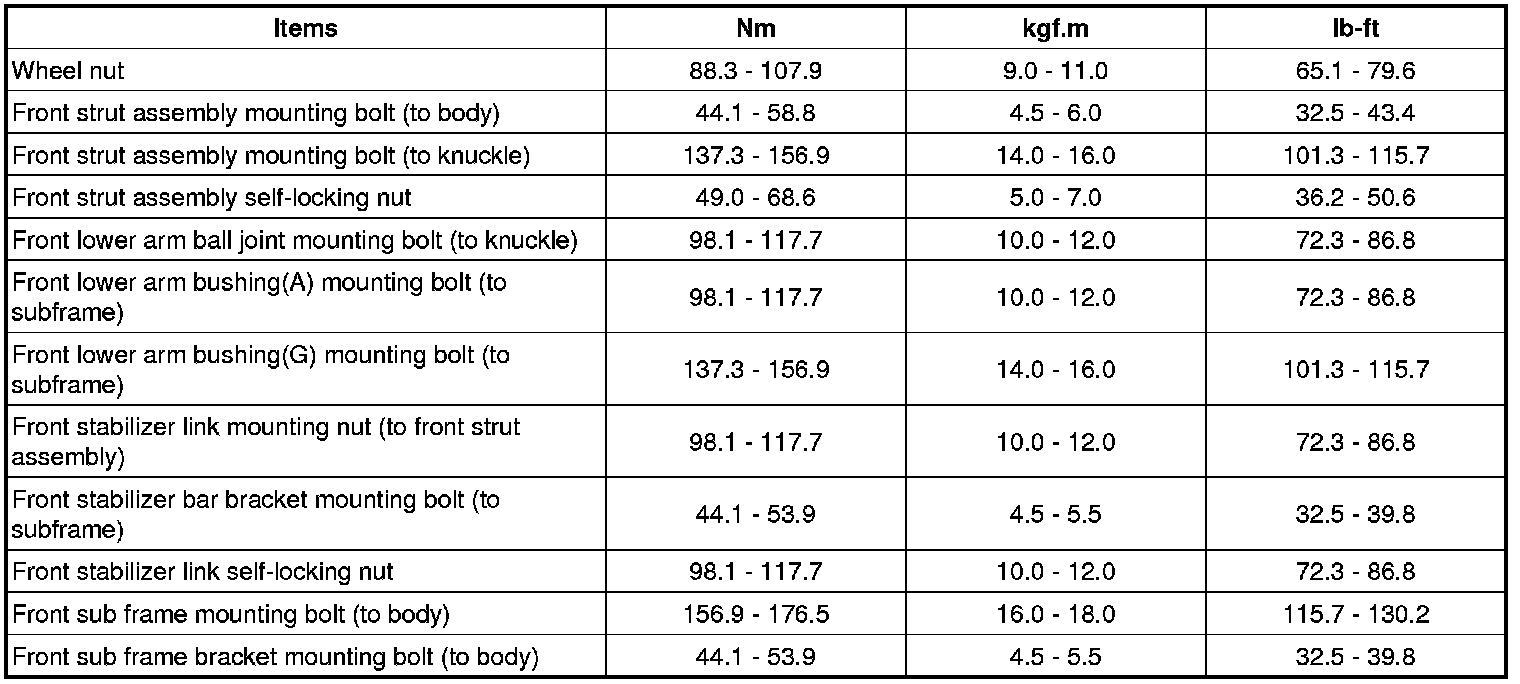

FRONT SUSPENSION

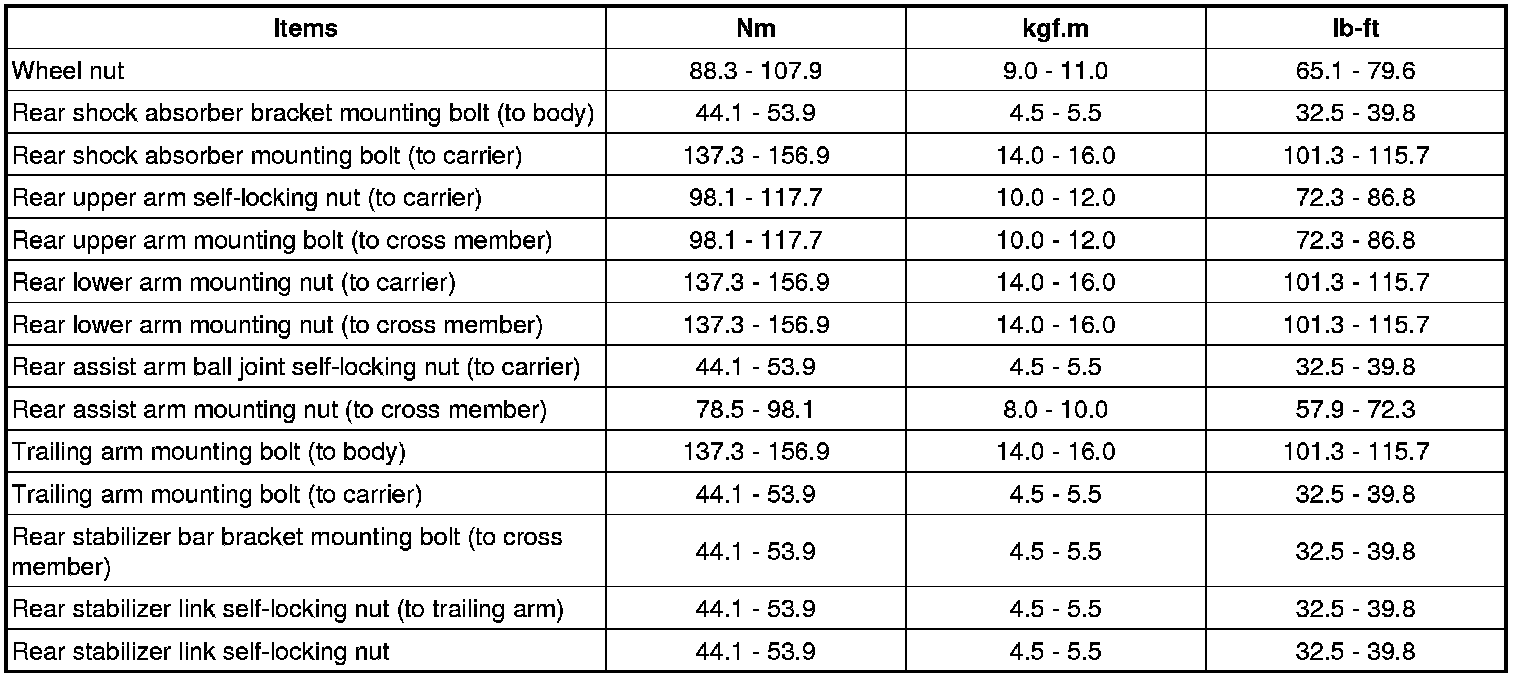

REAR SUSPENSION






CAUTION:
Replace the self-locking nuts with new ones after removal.

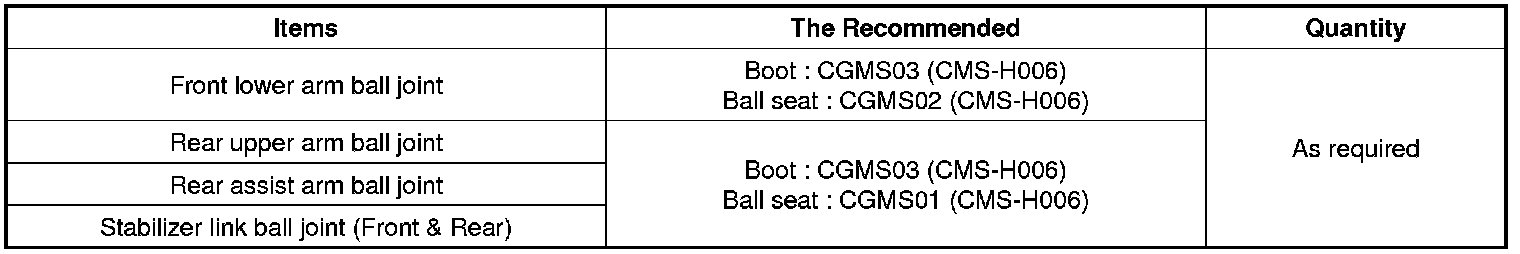

LUBRICANTS
