BCM (Body Control Module) - ETACS Module
BCM (Body Control Module) - ETACS Module
Download the full database via torrent (~1.1 TB)

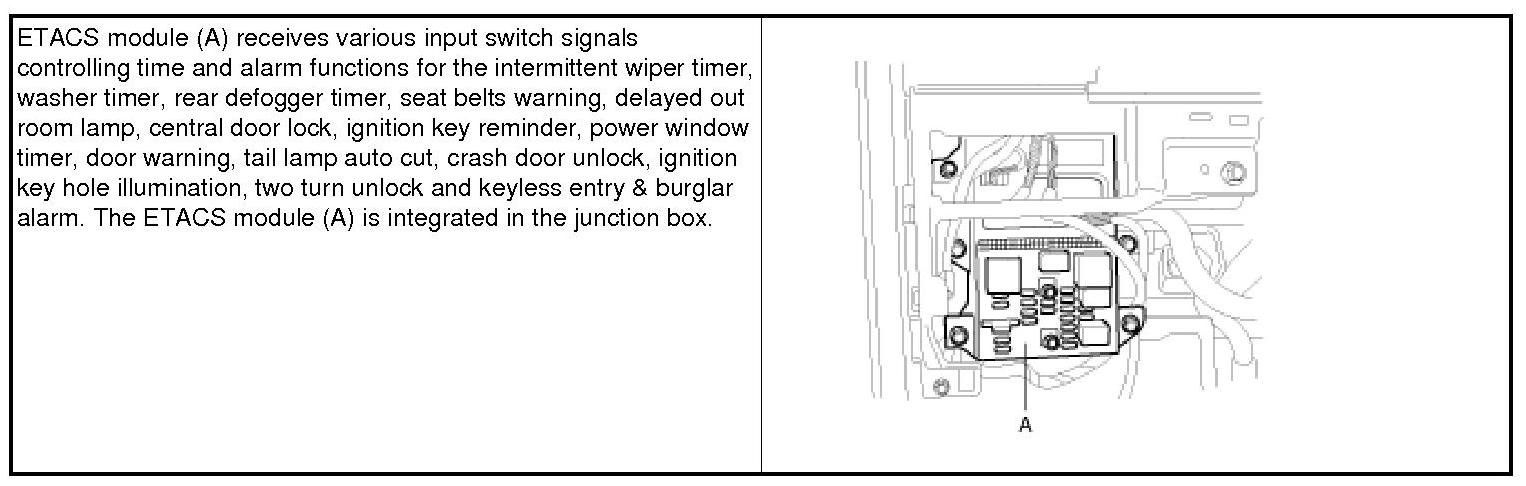

DESCRIPTION

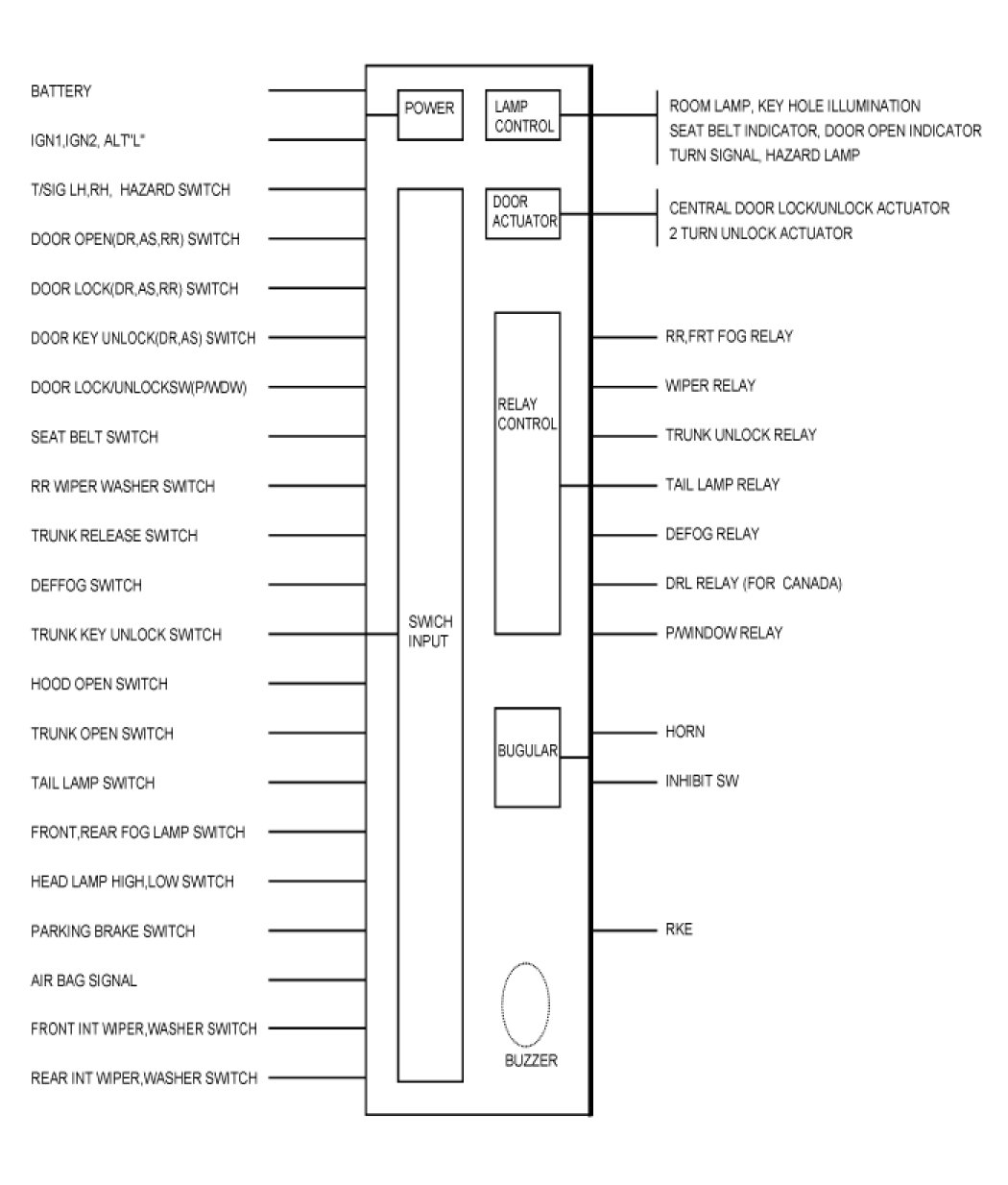

SYSTEM BLOCK DIAGRAM
