Body Control Module: Service and Repair

Download the full database via torrent (~1.1 TB)

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the driver's lower crash panel .

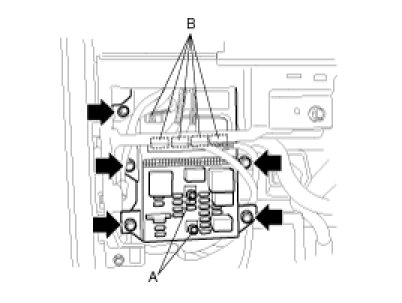

3. Disconnect the ETACM connectors (B).
4. Loosen the connector mounting bolts (A).

5. Loosen the mounting bolts

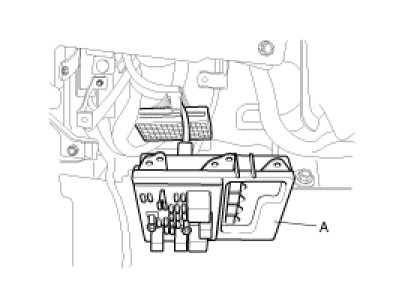

6. Remove the ETACM(A) after disconnecting the connector.

7. Installation is the reverse of removal procedures.
