Pinout Values and Diagnostic Parameters

Download the full database via torrent (~1.1 TB)

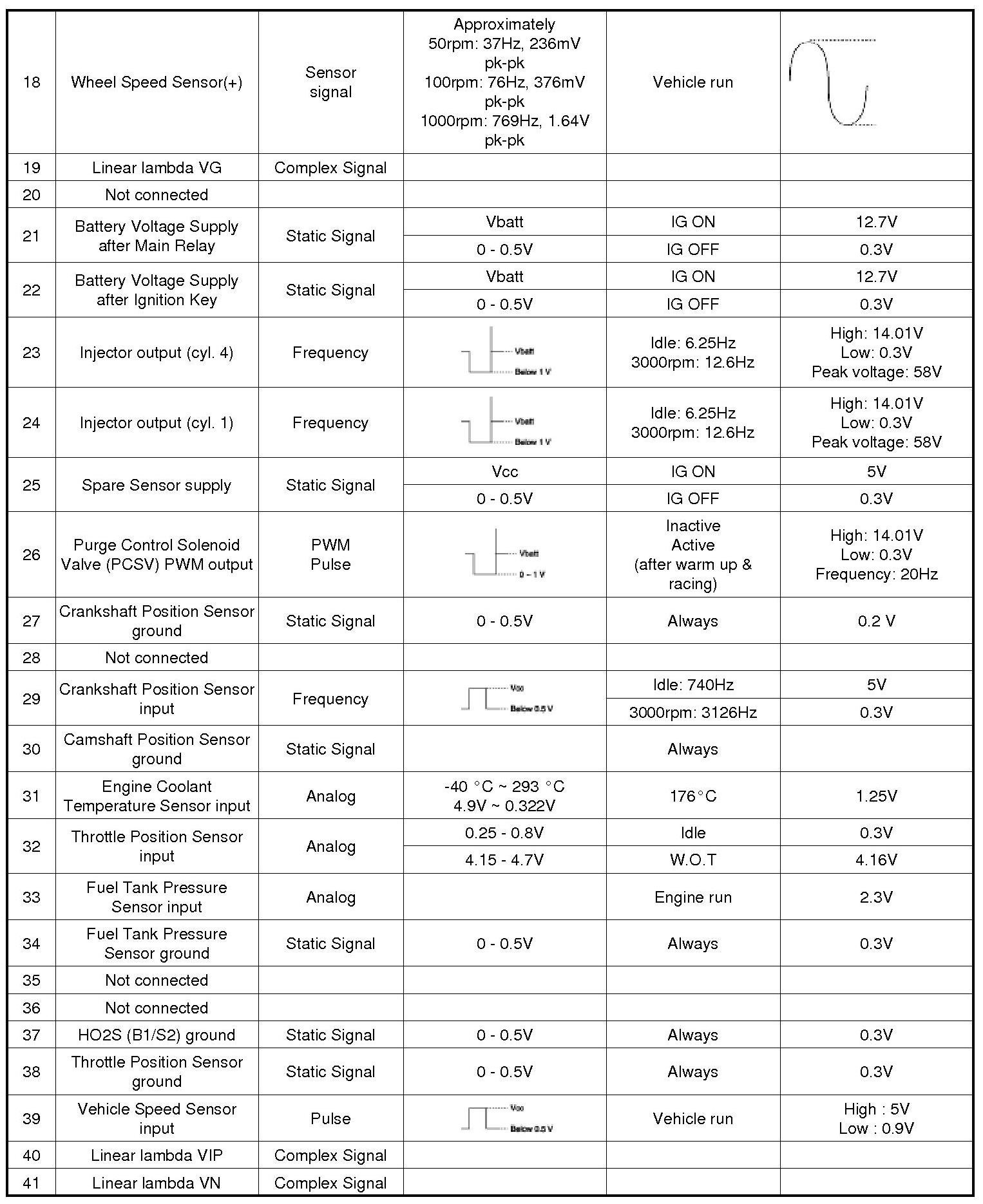

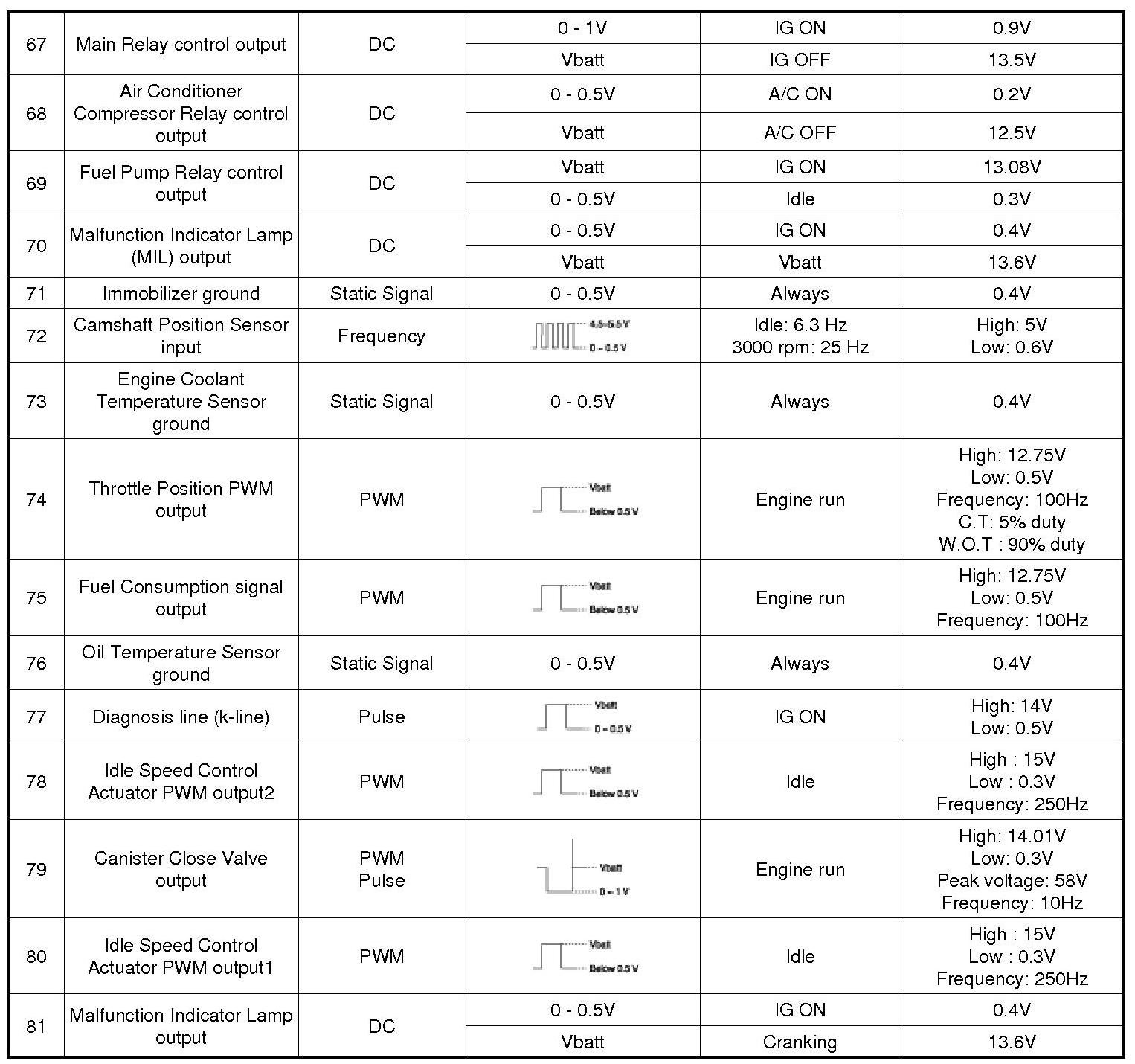

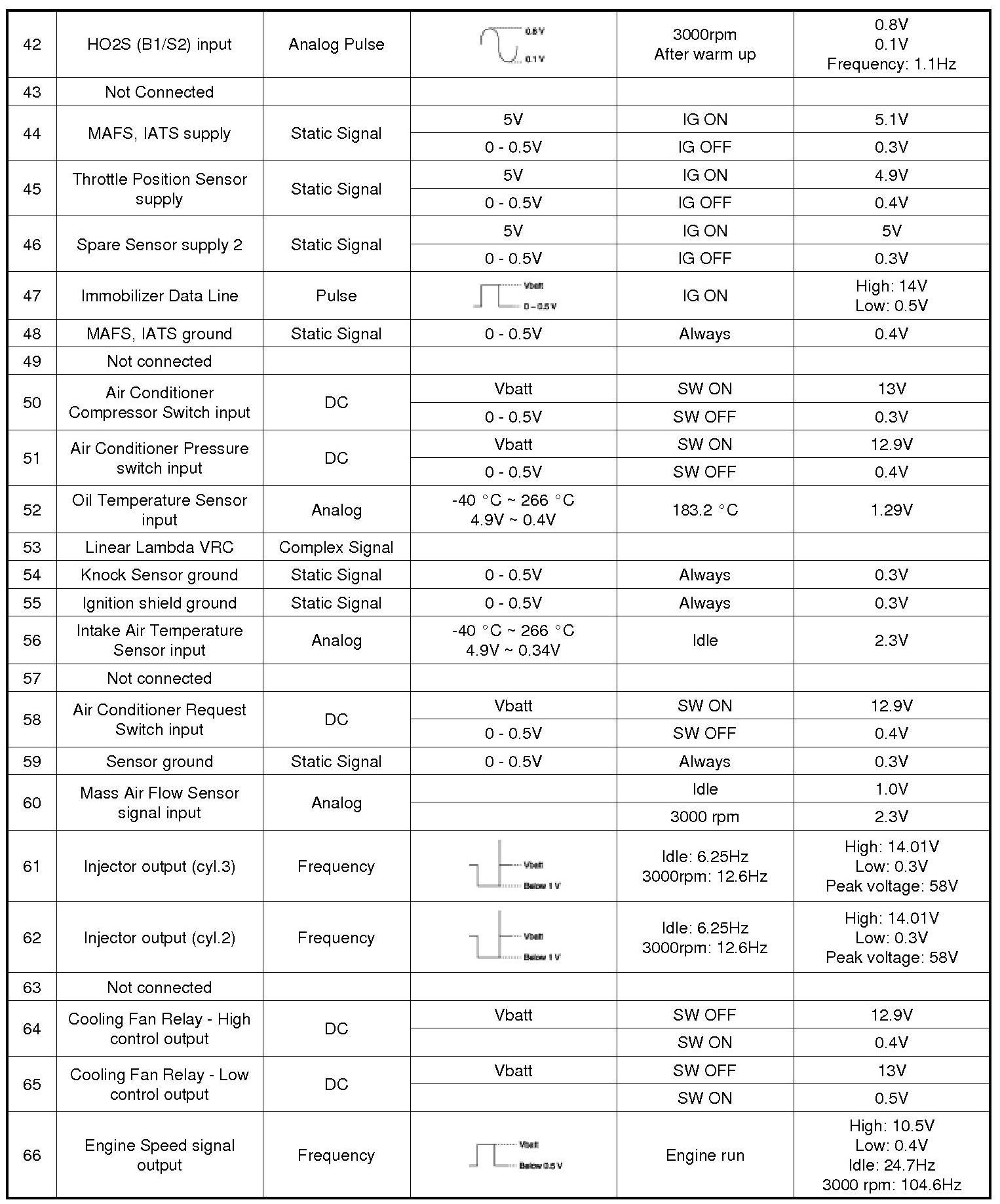

ECM TERMINAL INPUT/OUTPUT SIGNAL
