SPECIFICATIONS
INPUT SENSORS
Throttle Position Sensor (TPS)
> Type: Variable resistor type

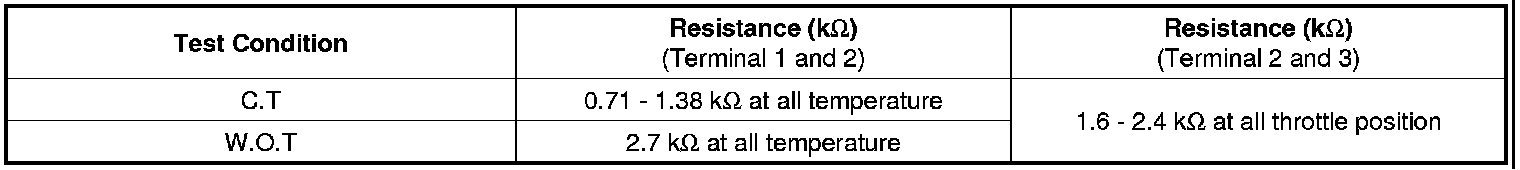

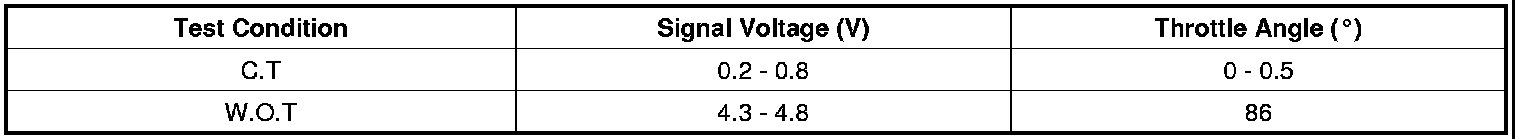

> Specification
