Shift Lever: Components

Download the full database via torrent (~1.1 TB)
Fig 1: Identifying Shift Lever Components (1 Of 2)
G04862687Courtesy of KIA MOTORS AMERICA, INC.

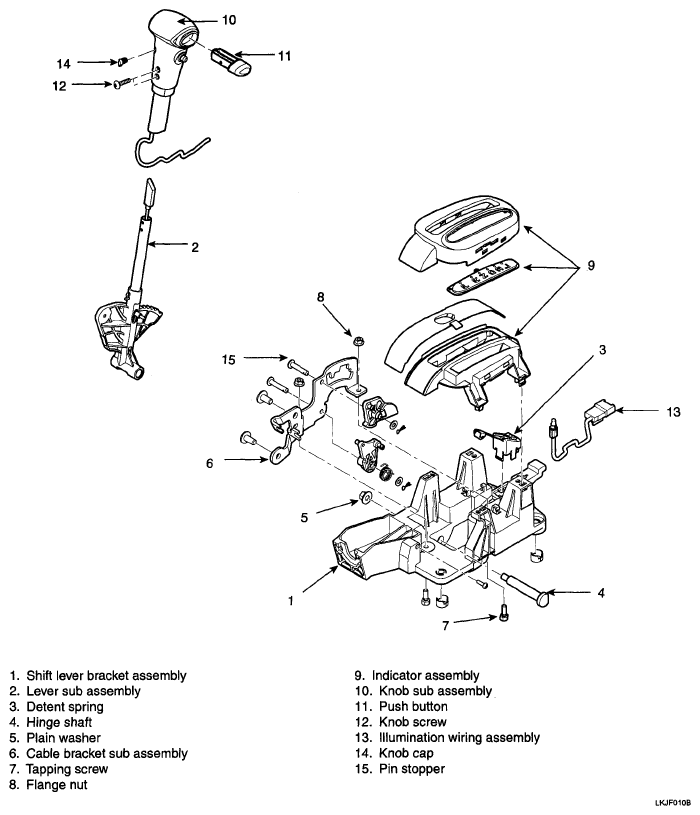

Fig 2: Identifying Shift Lever Components (2 Of 2)
G04862688Courtesy of KIA MOTORS AMERICA, INC.
