Transmission Position Sensor/Switch: Specifications
Download the full database via torrent (~1.1 TB)
Specifications
- Type: Combination of output signals from 4 terminals

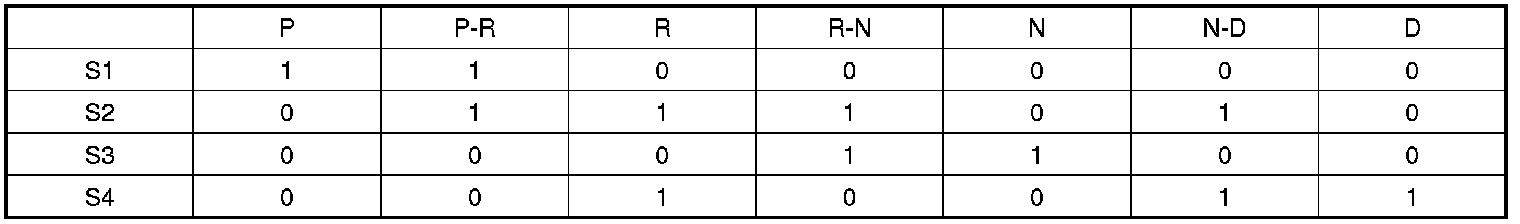

Signal Code Table
