Forte LX, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System
>>
Camshaft Position Sensor (CMPS)
>>
Troubleshooting
>>
Wave Form
Wave Form
Download the full database via torrent (~1.1 TB)

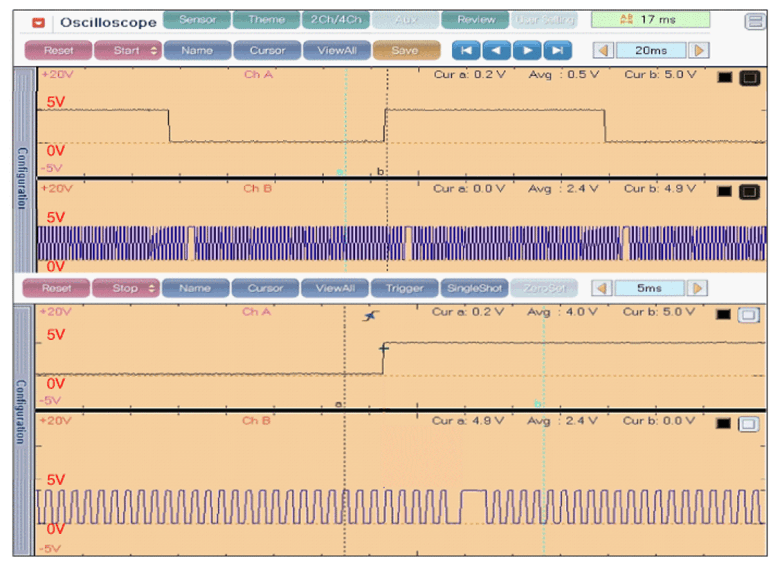

Fig 1: Display - Camshaft Position Sensor Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
