Forte LX, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System
>>
Injector
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
Download the full database via torrent (~1.1 TB)

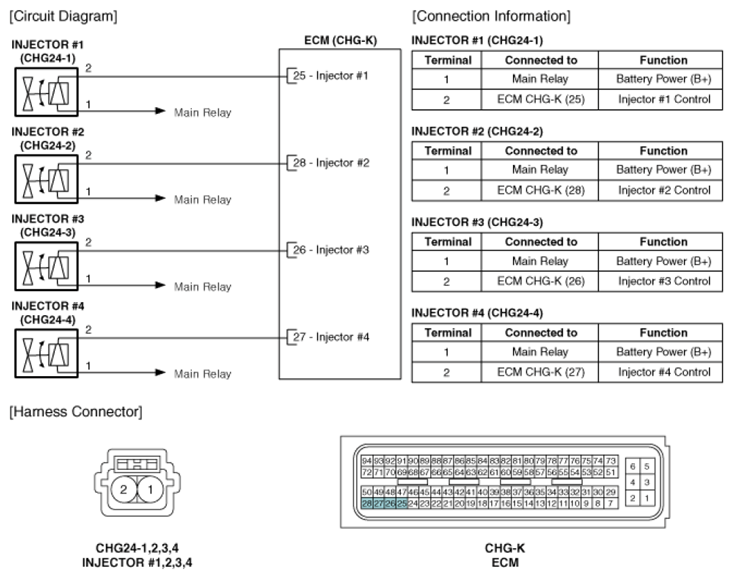

Fig 1: Injector - Circuit Diagram & Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
