Keyless Entry Module
Keyless Entry Module
Download the full database via torrent (~1.1 TB)

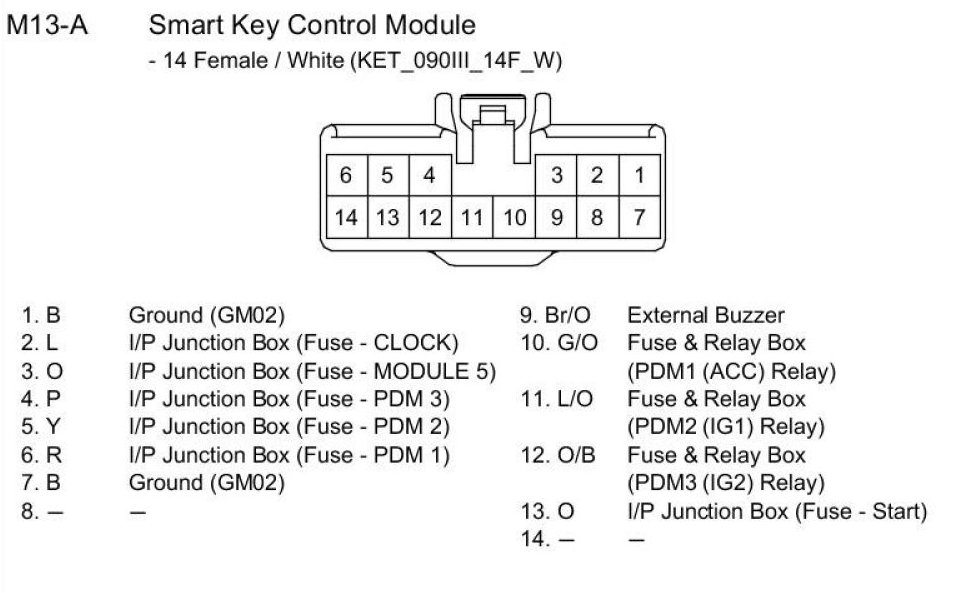

M13-A Smart Key Control Module:

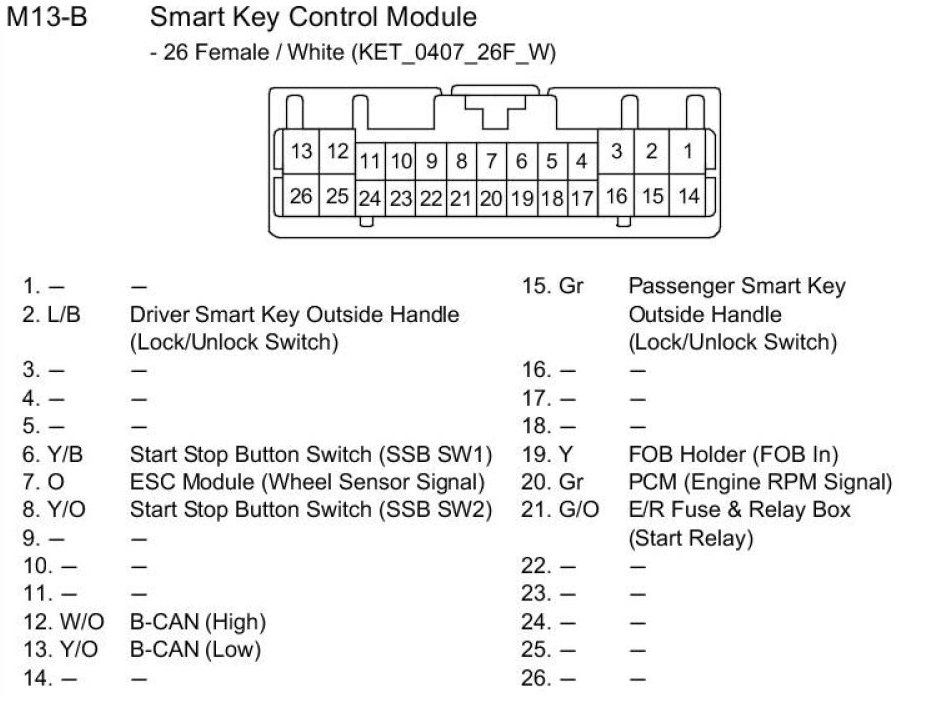

M13-B Smart Key Control Module:

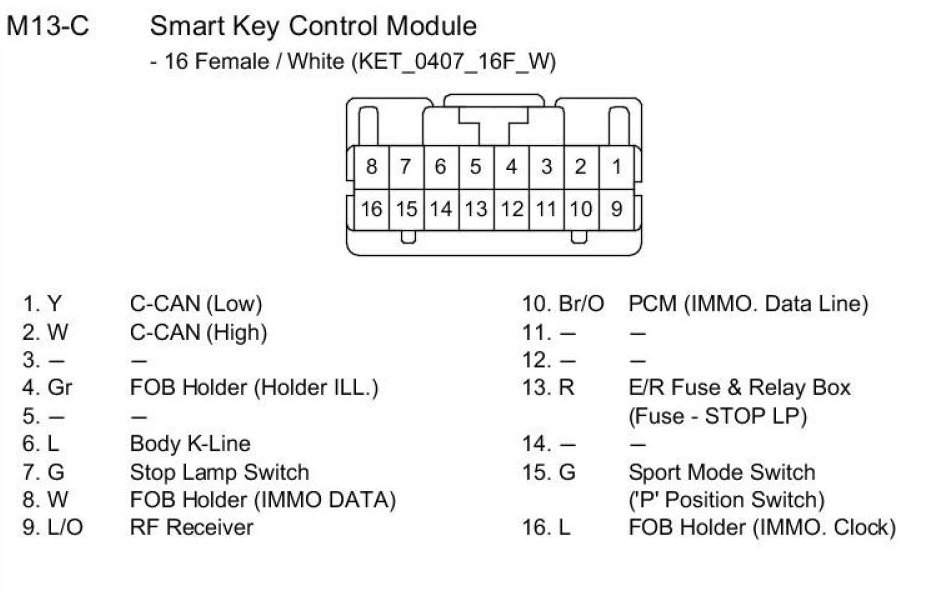

M13-C Smart Key Control Module:

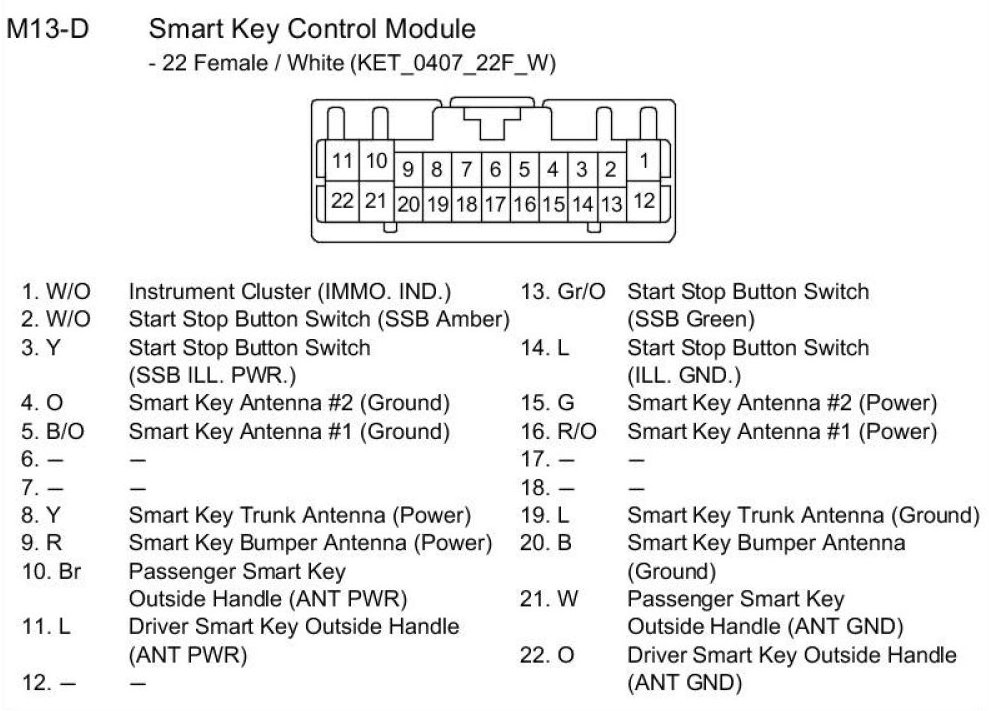

M13-D Smart Key Control Module:
