Engine Control Module

Download the full database via torrent (~1.1 TB)




ECM Terminal And Input/Output signal

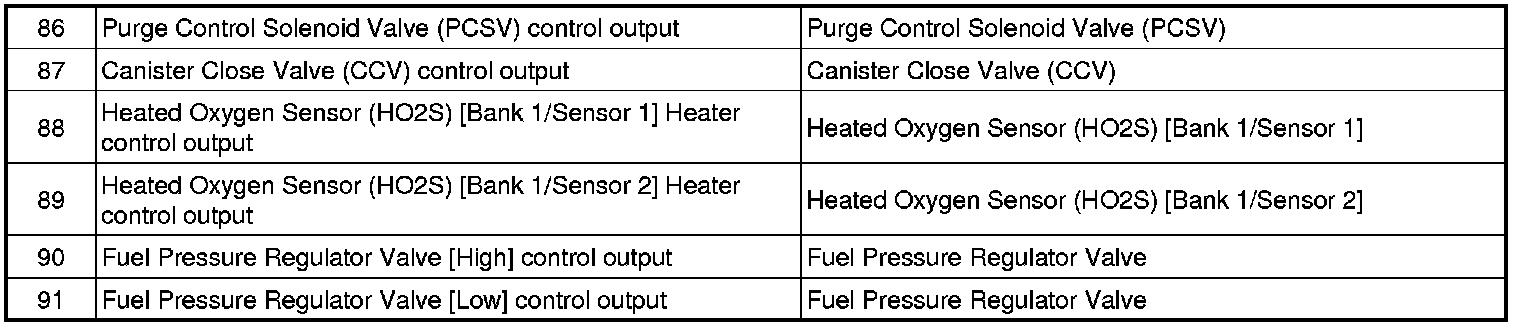

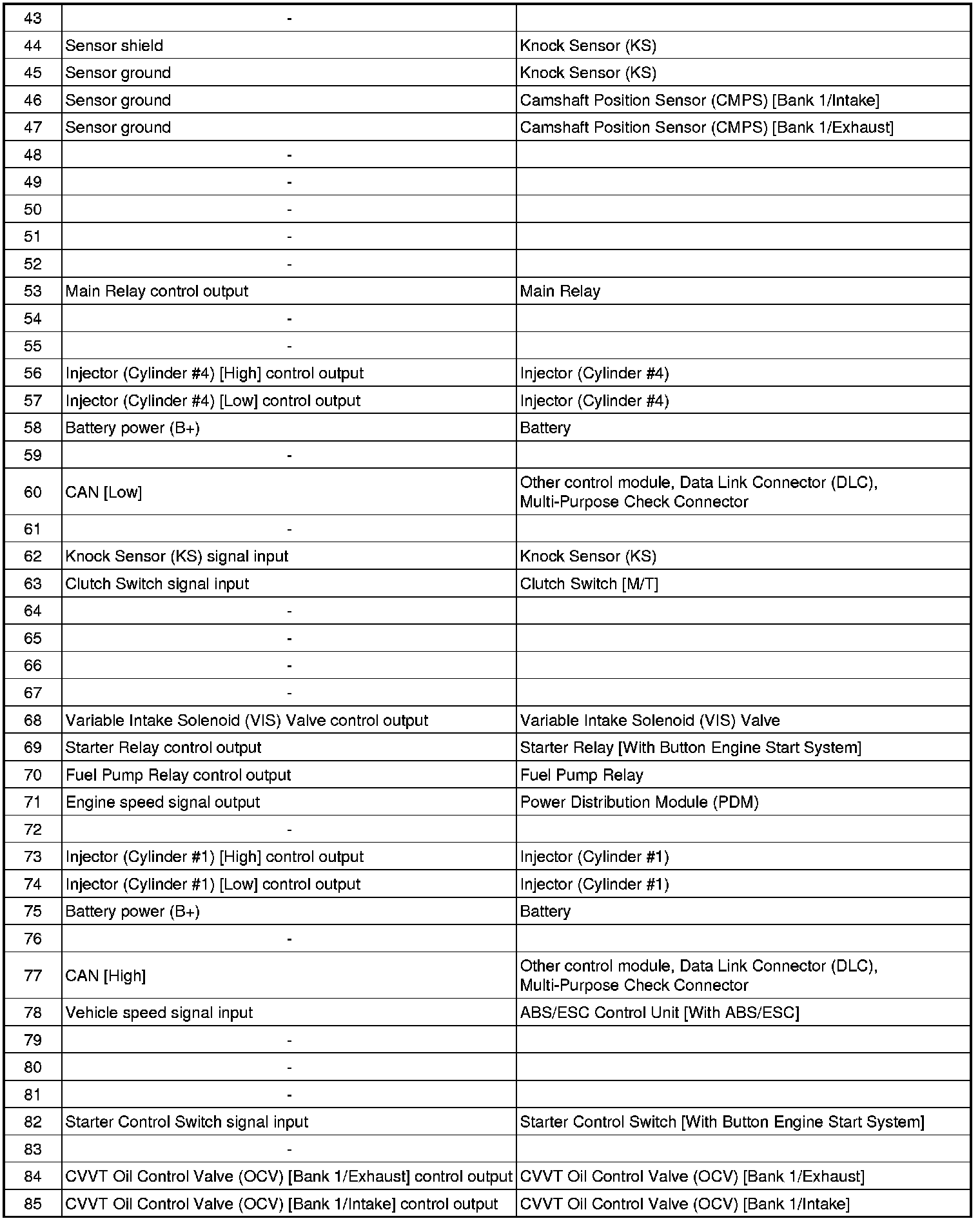

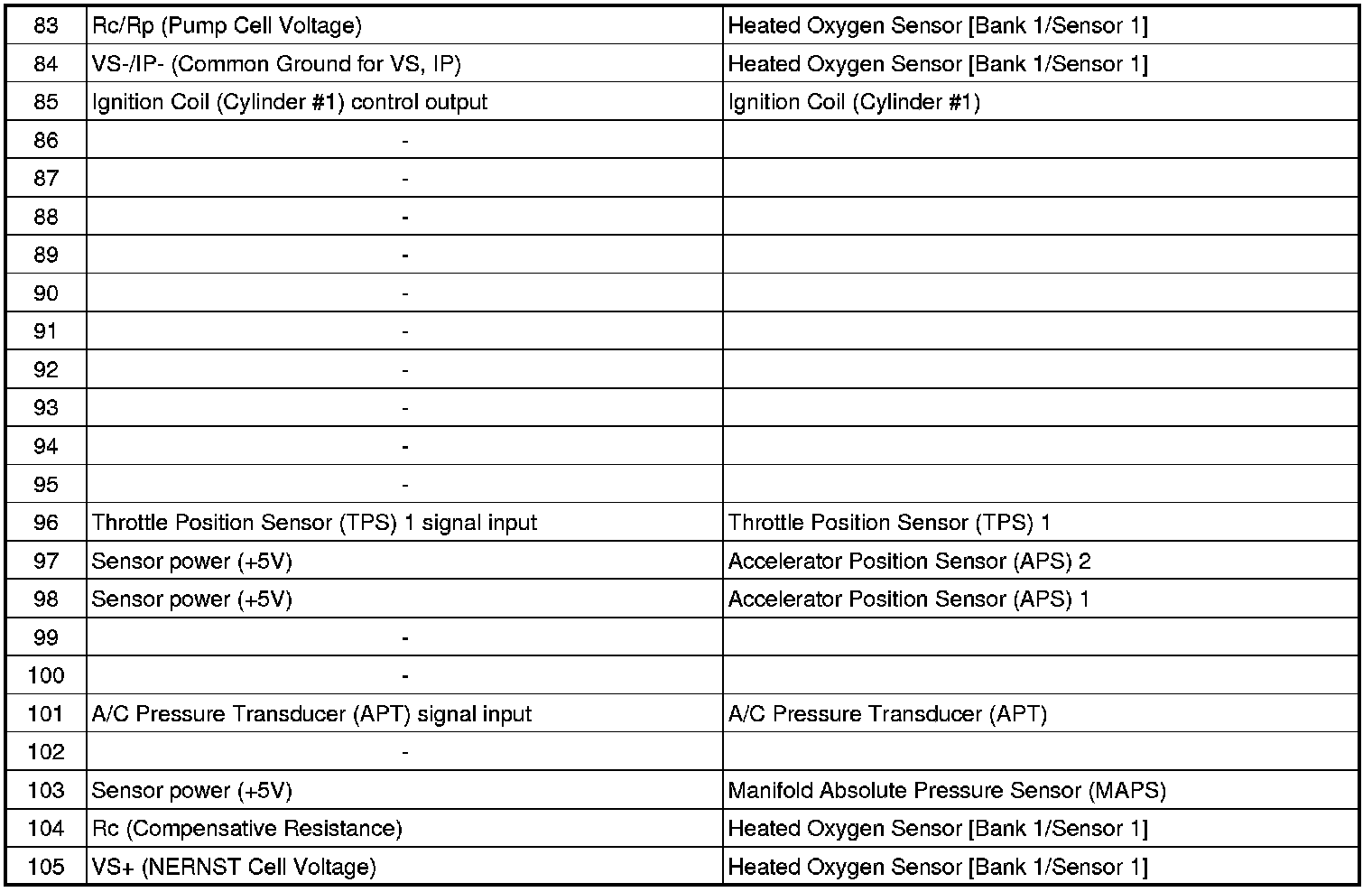

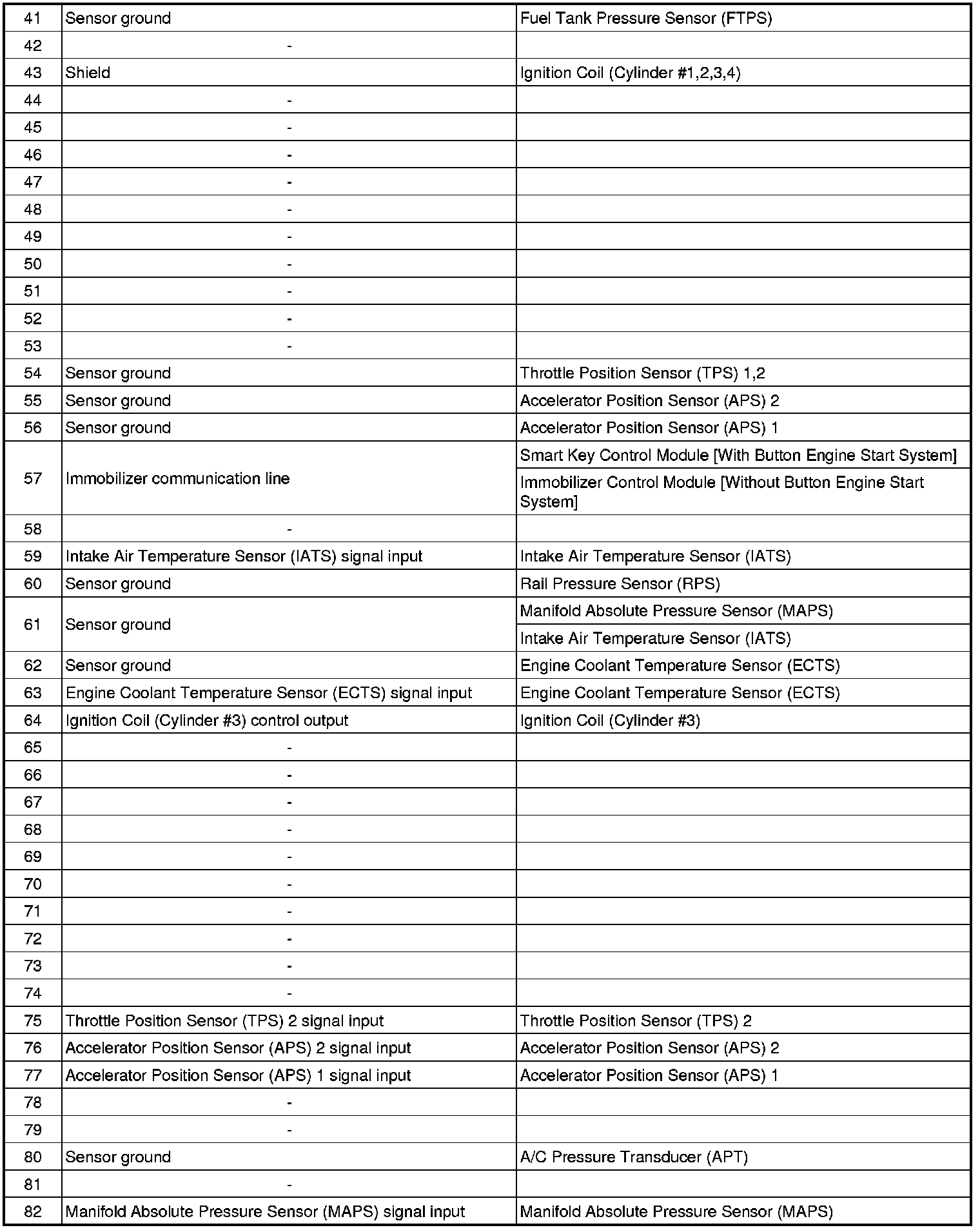

ECM Terminal Function

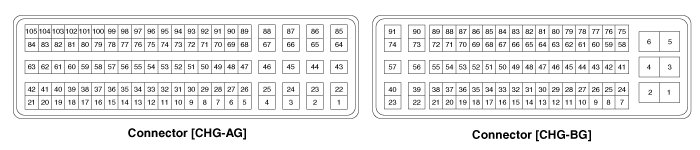

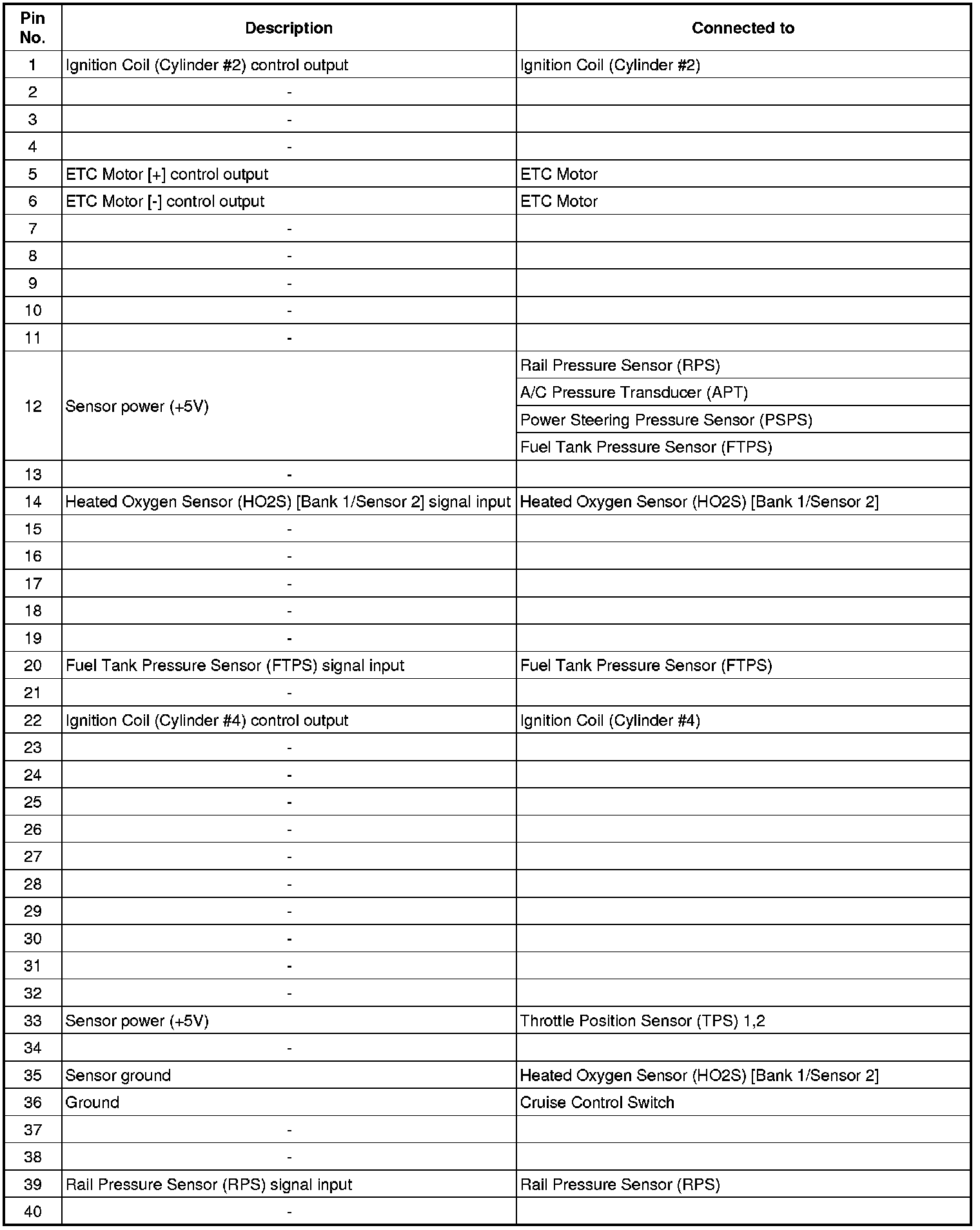

Connector [CHG-AG]

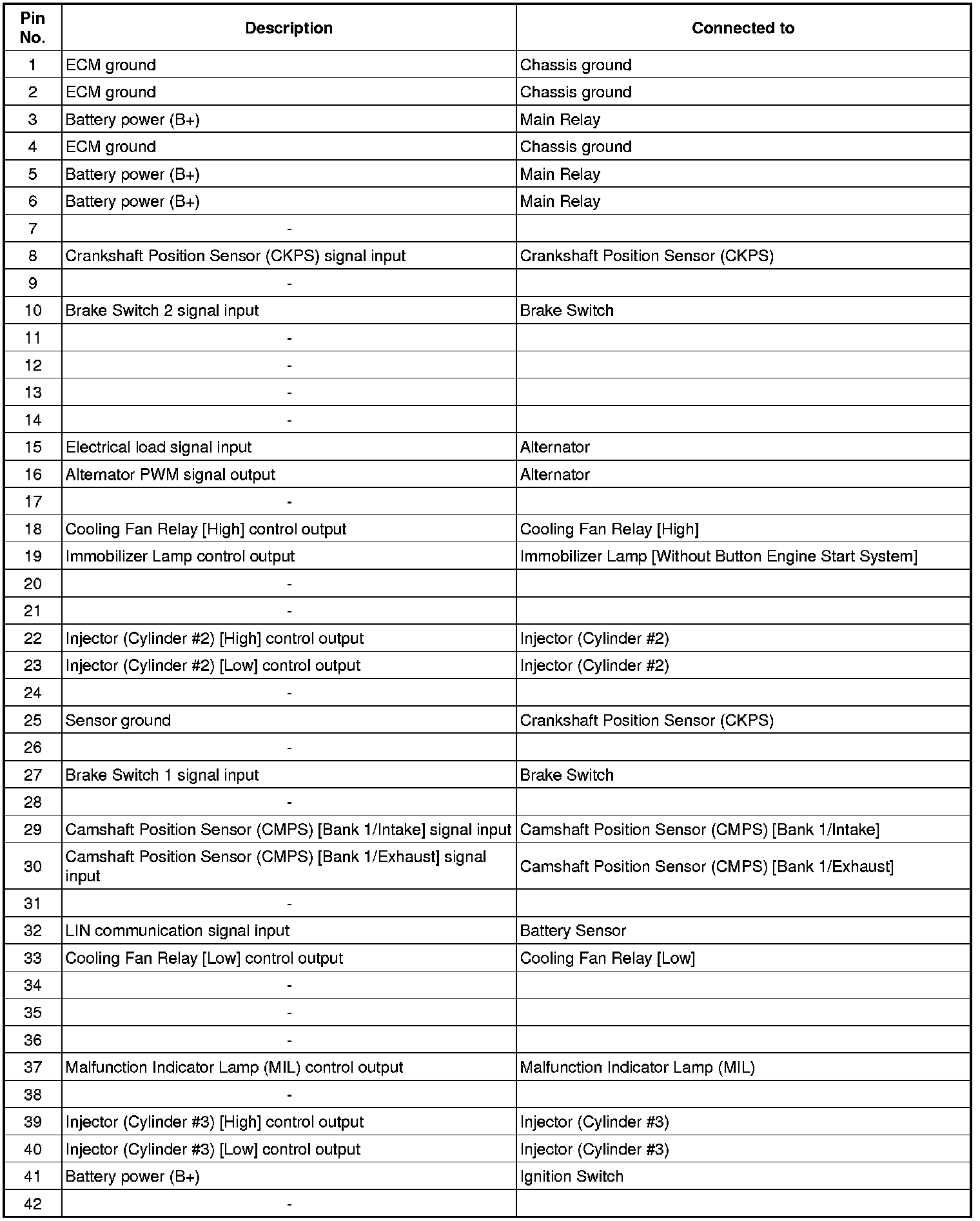

Connector [CHG-BG]

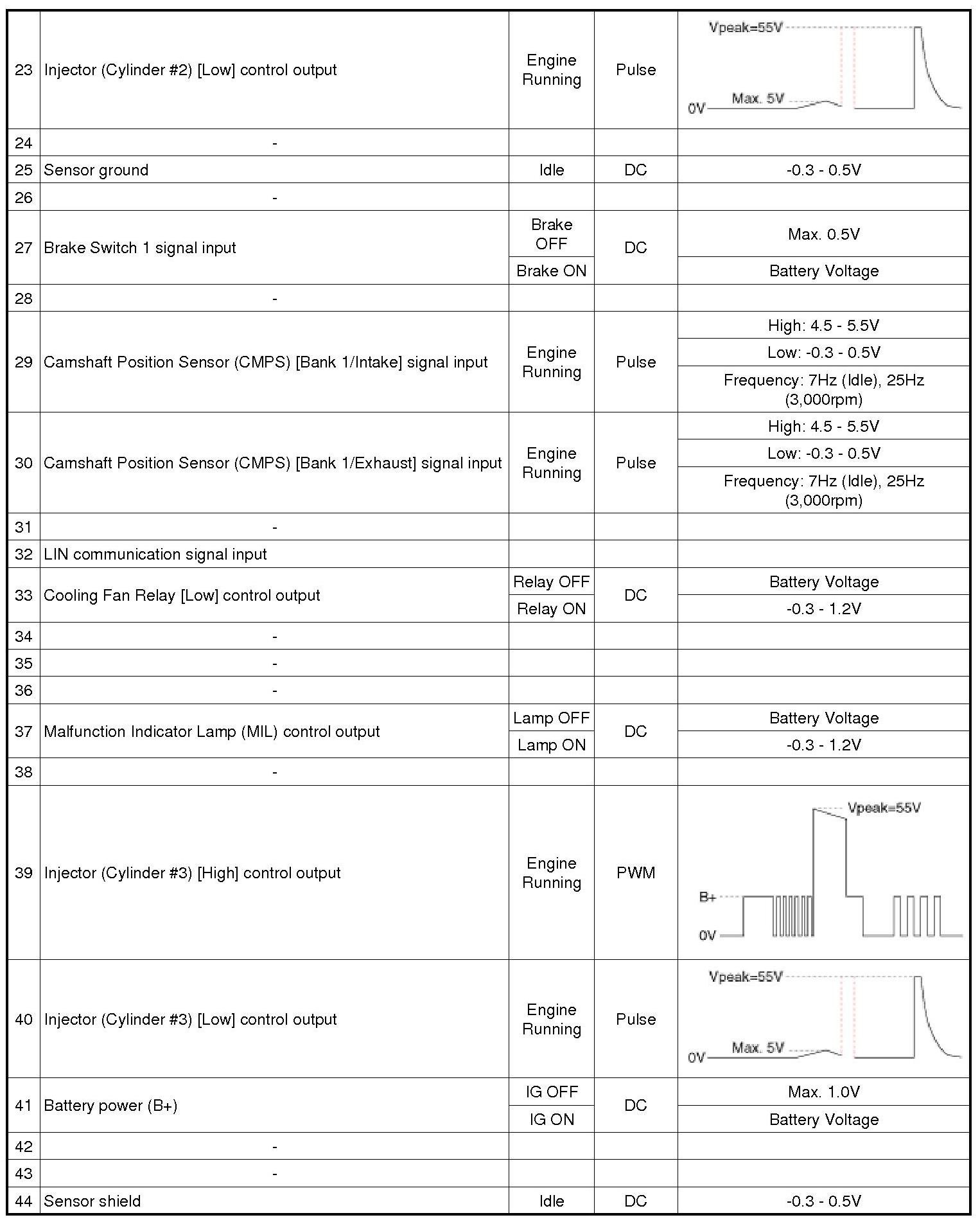

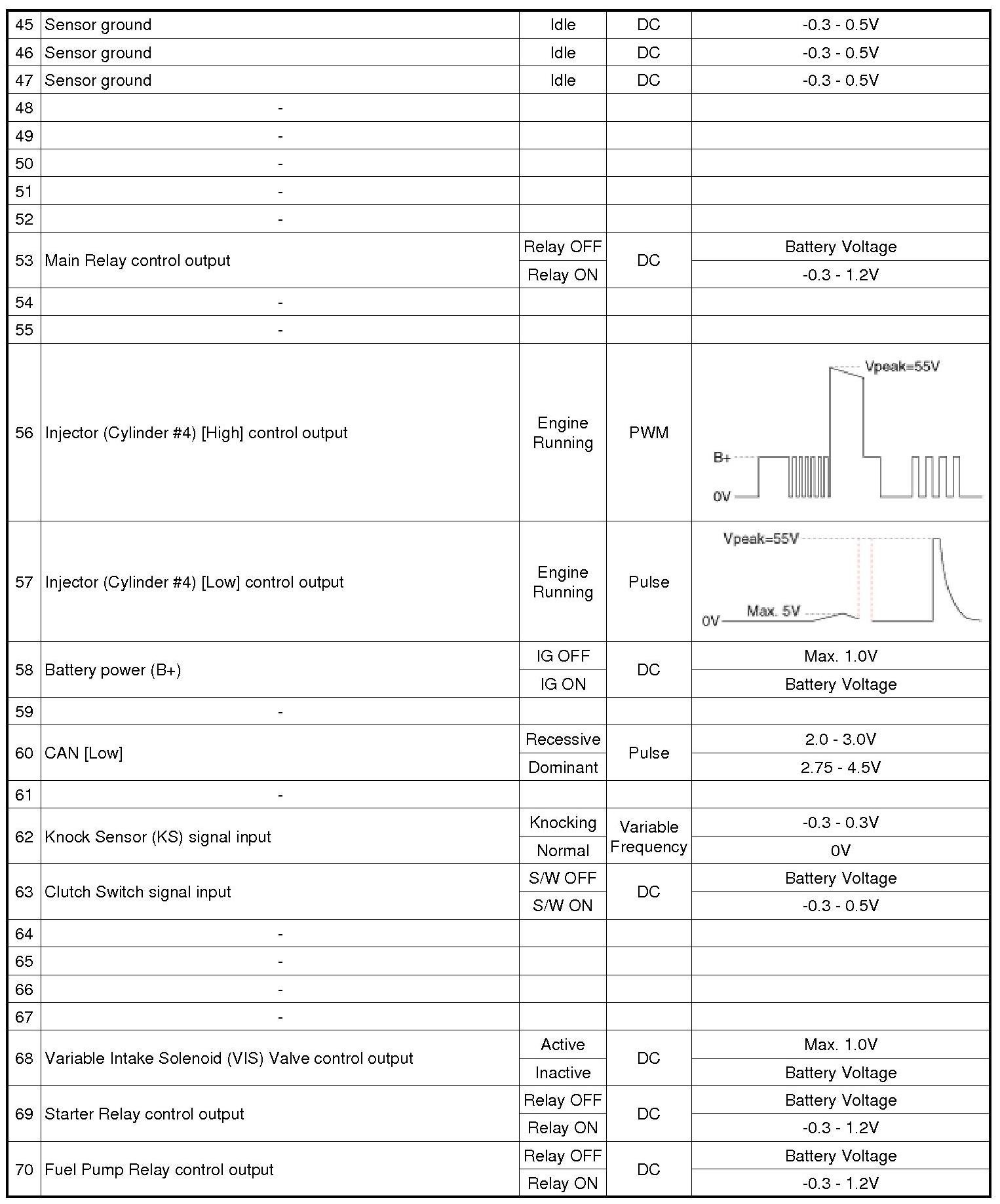

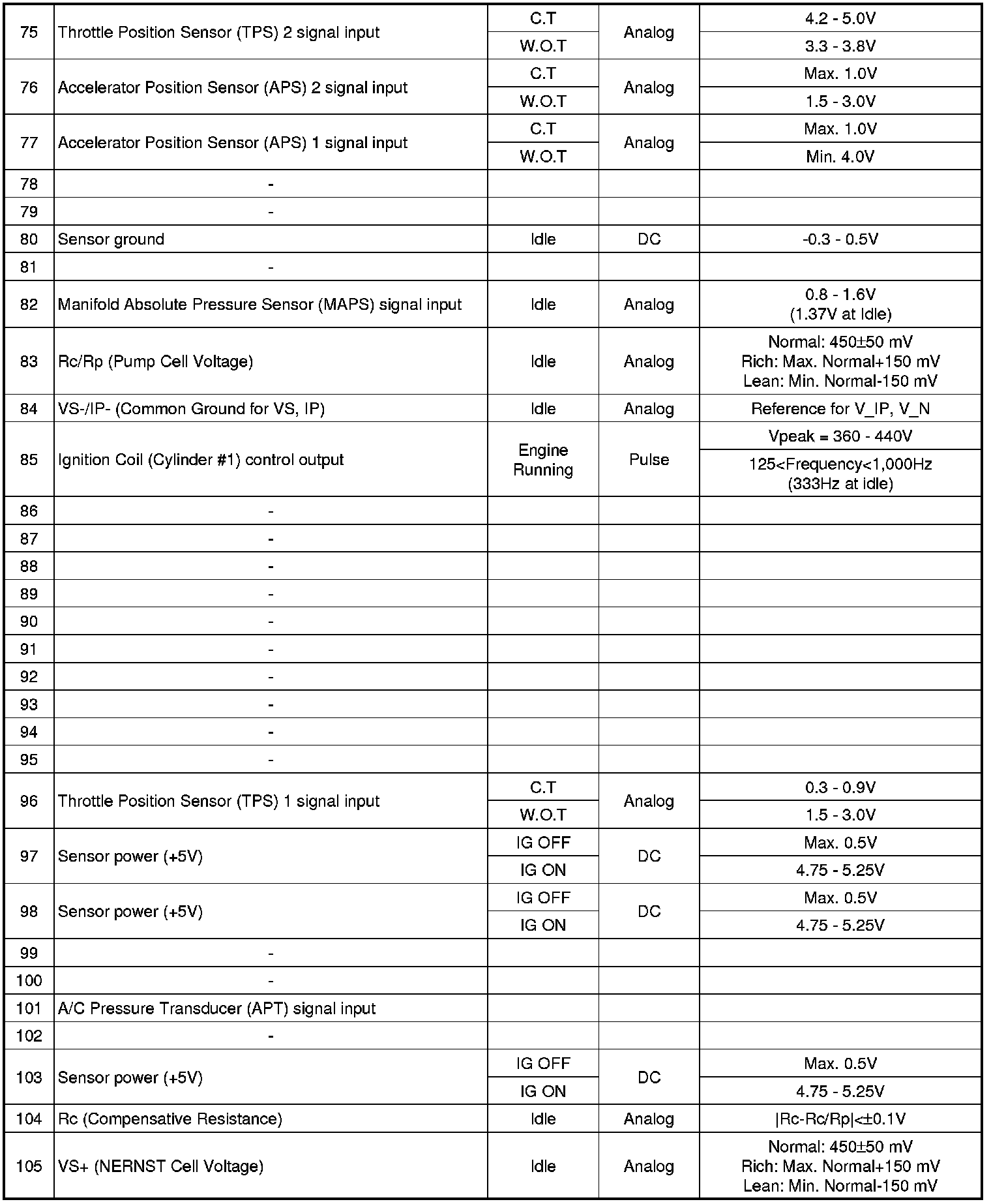

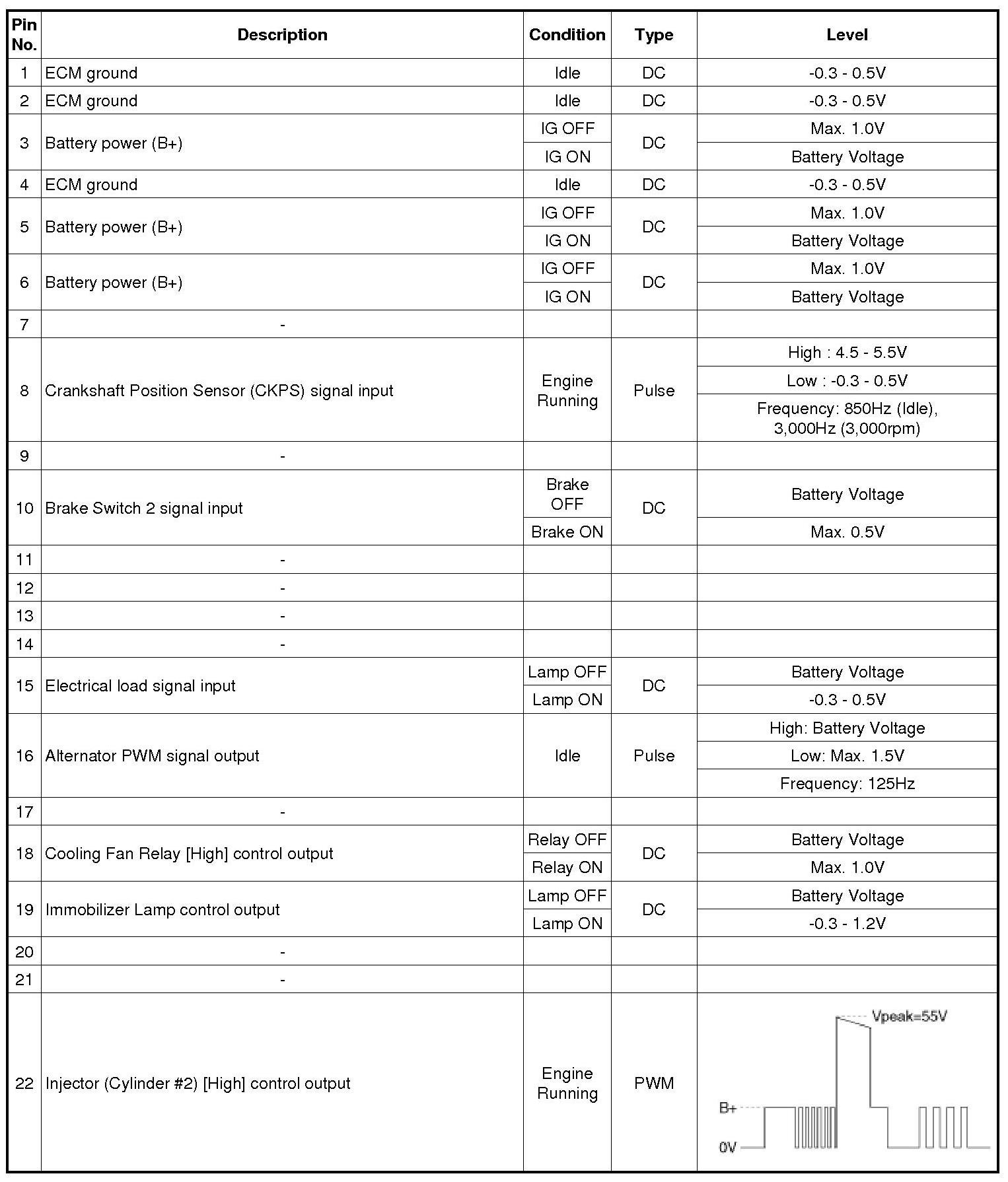

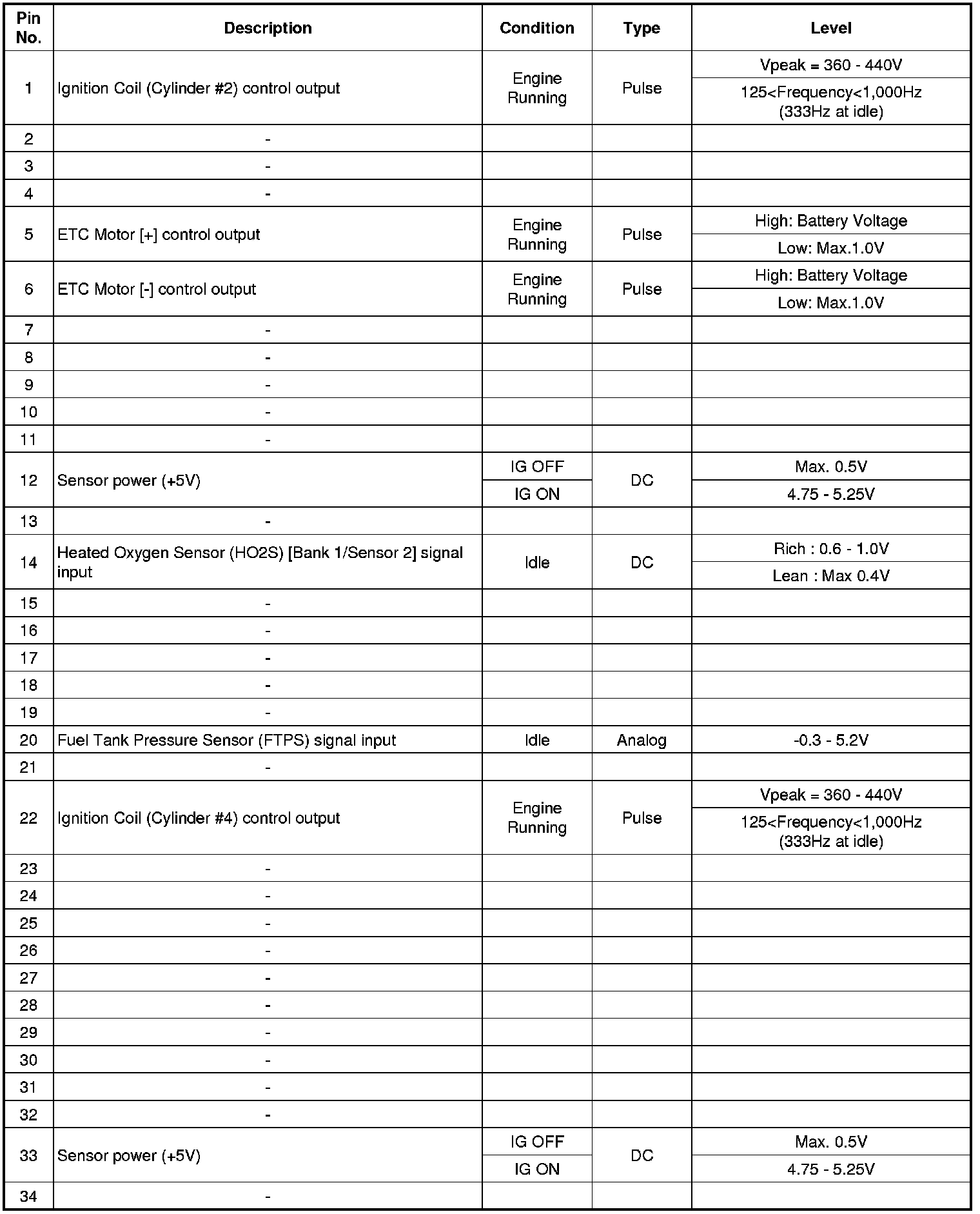

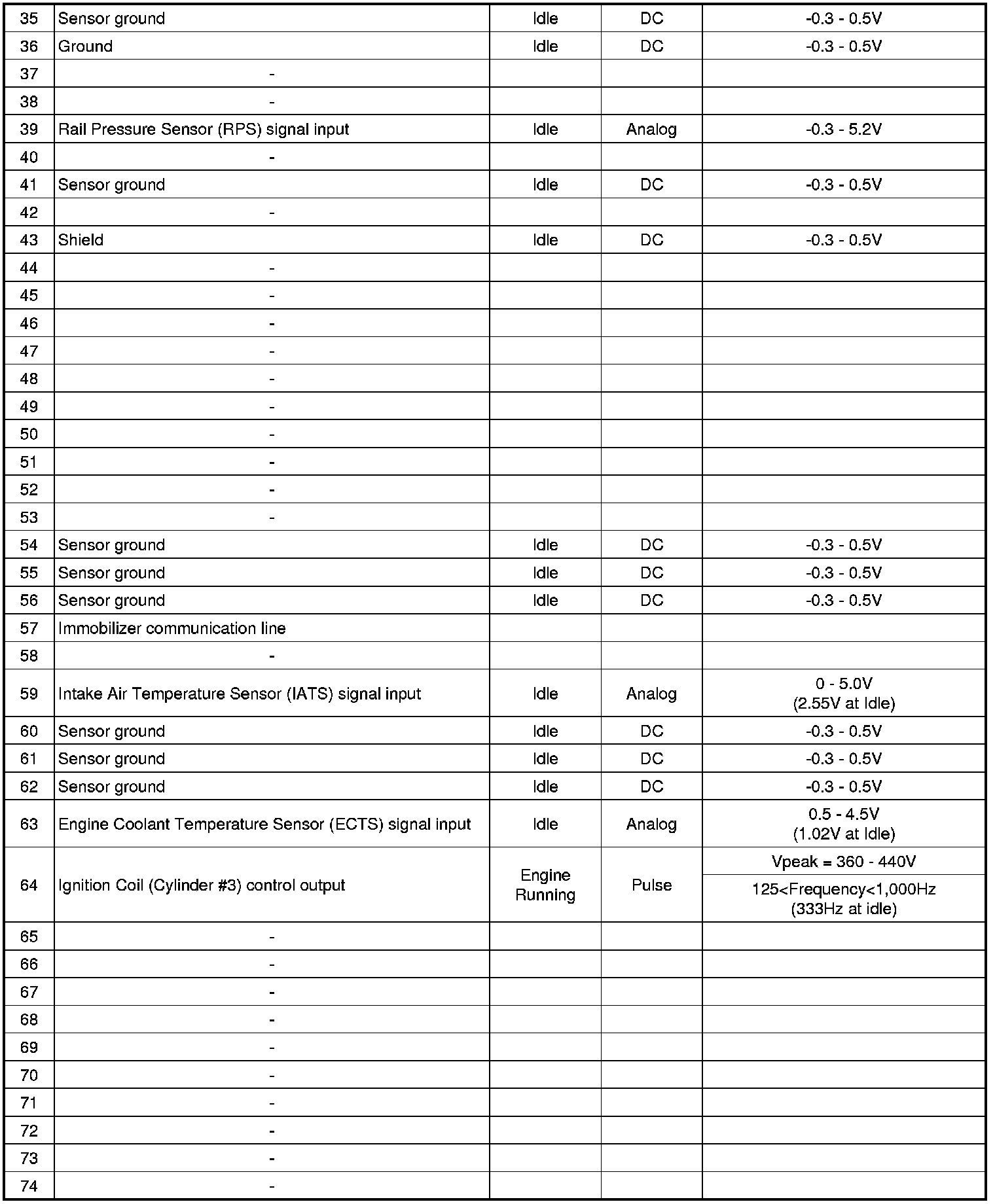

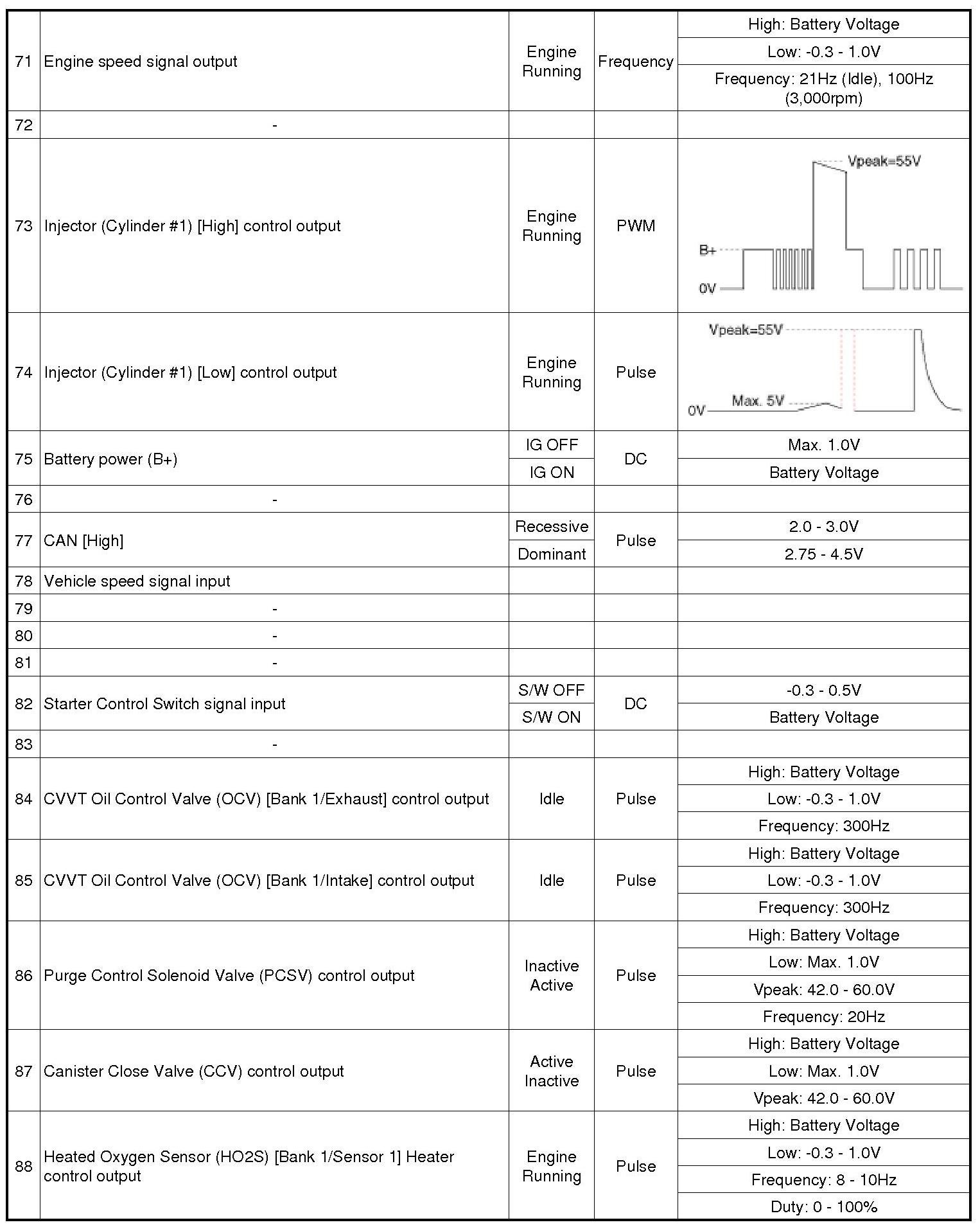

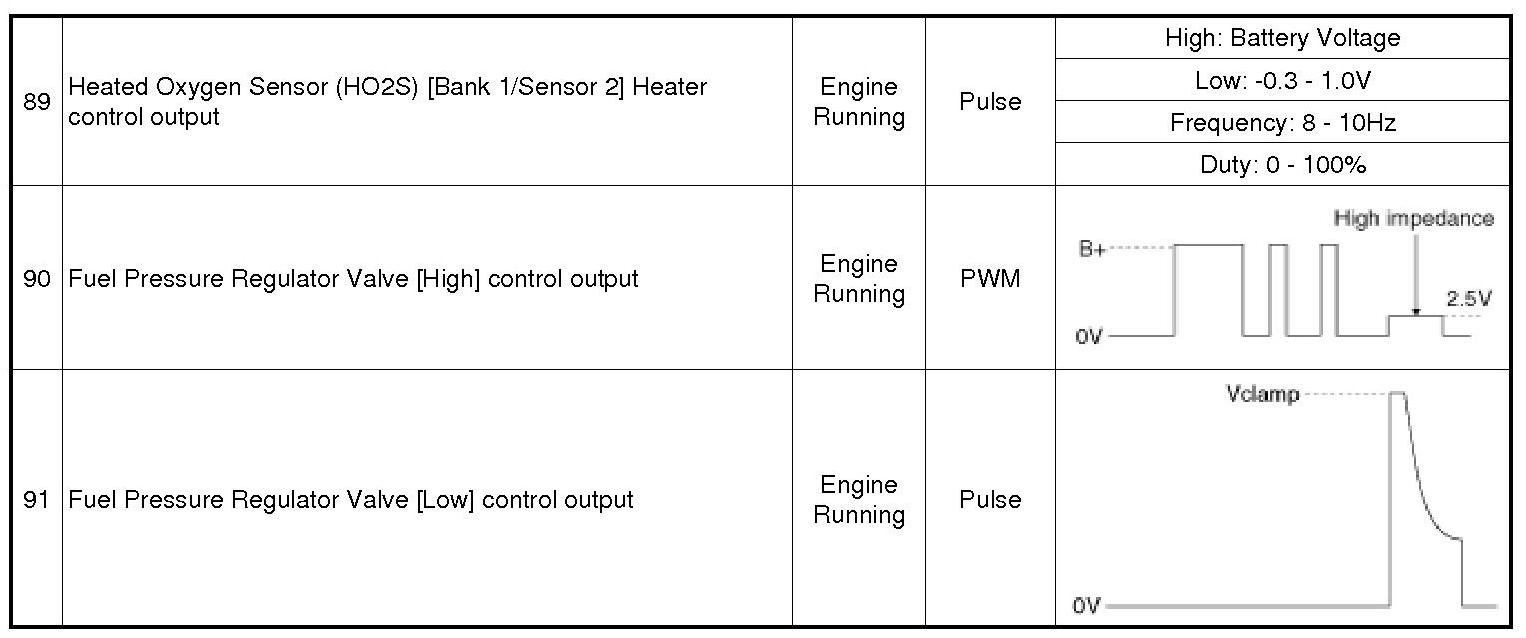

ECM Terminal Input/ Output signal
Connector [CHG-AG]













Connector [CHG-BG]

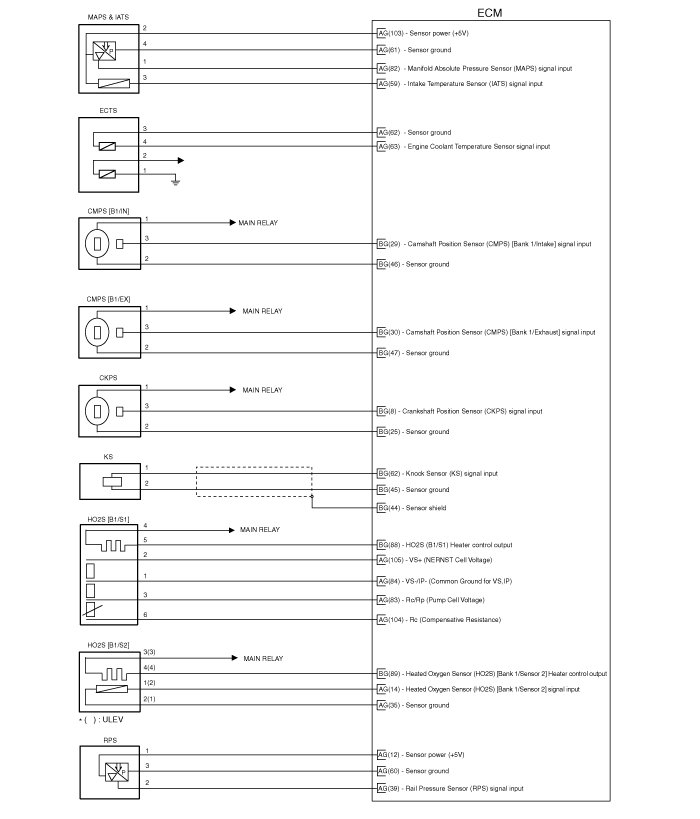

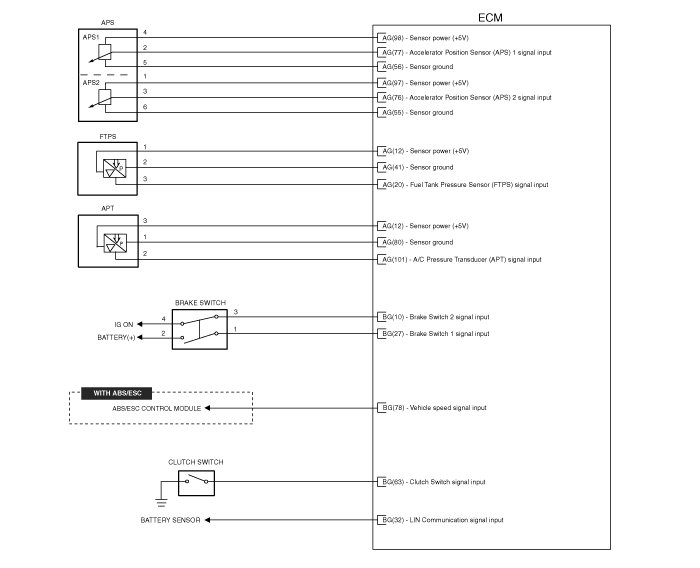

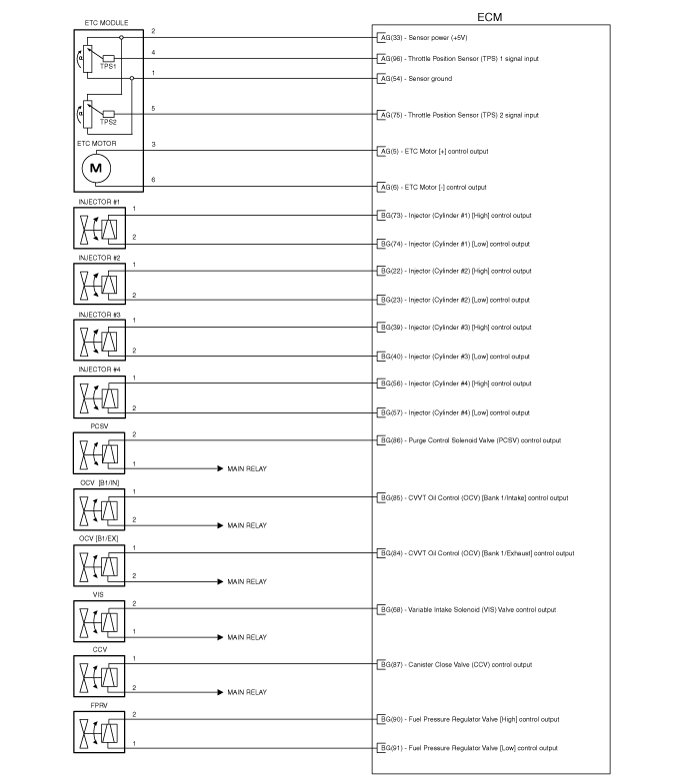

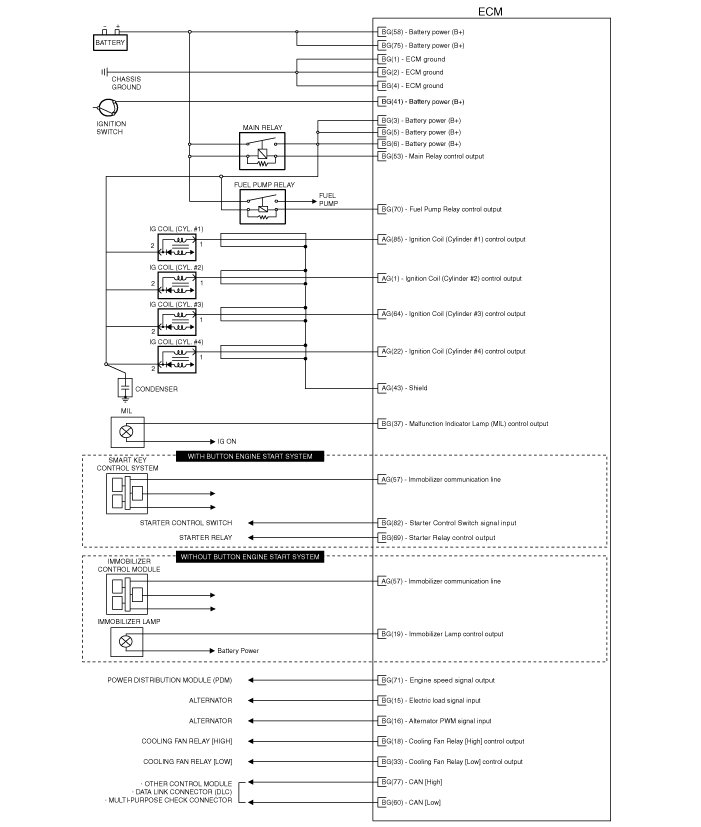

Circuit Diagram
