Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 1.6L
>>
Components and Component Locations
>>
Components Location
Components Location
Download the full database via torrent (~1.1 TB)

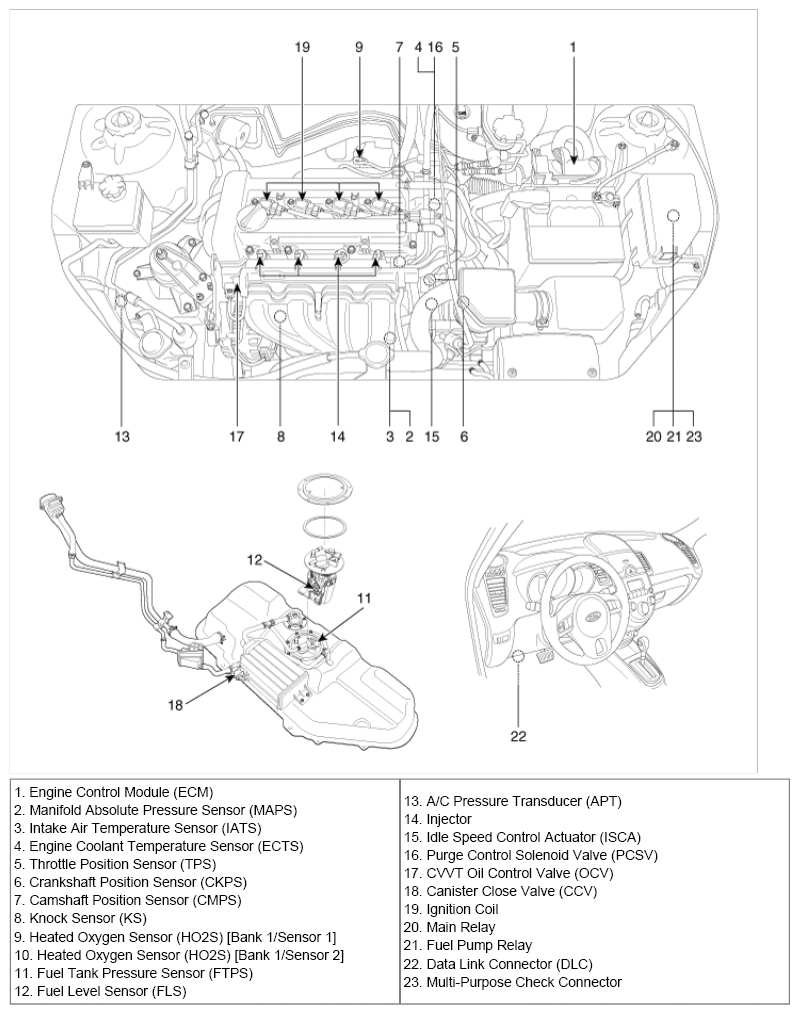

Fig 1: Locating Engine Control System Components (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

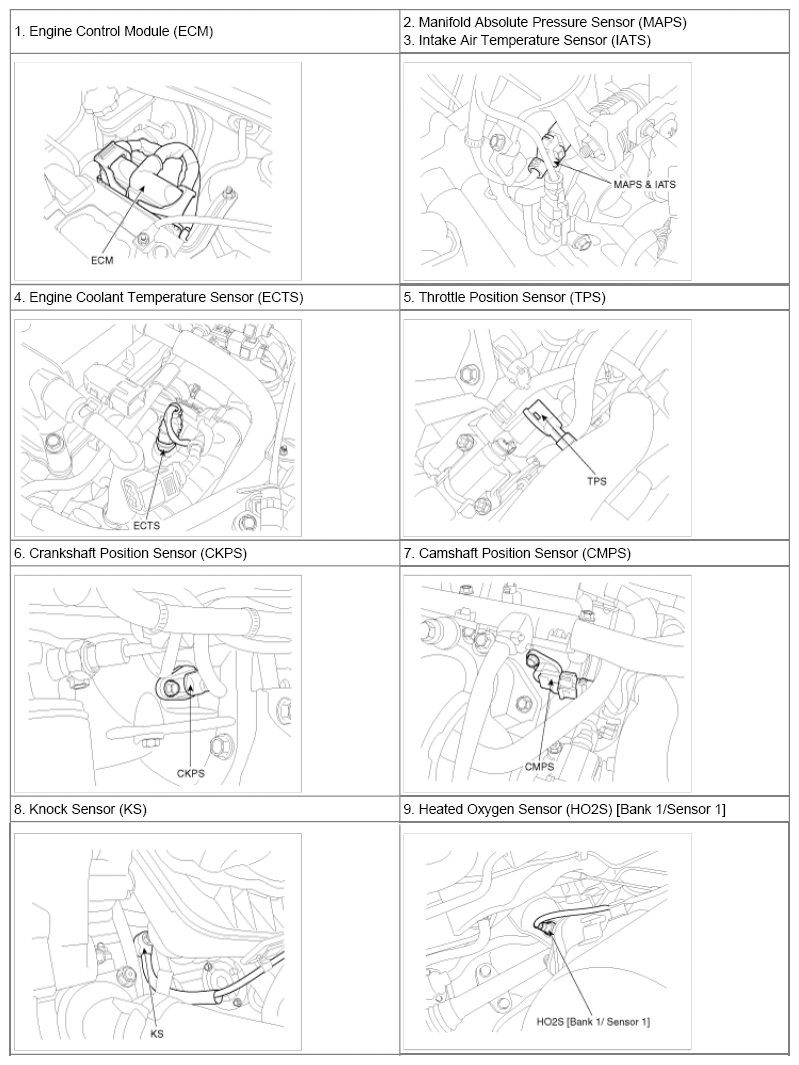

Fig 2: Locating Engine Control System Components (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

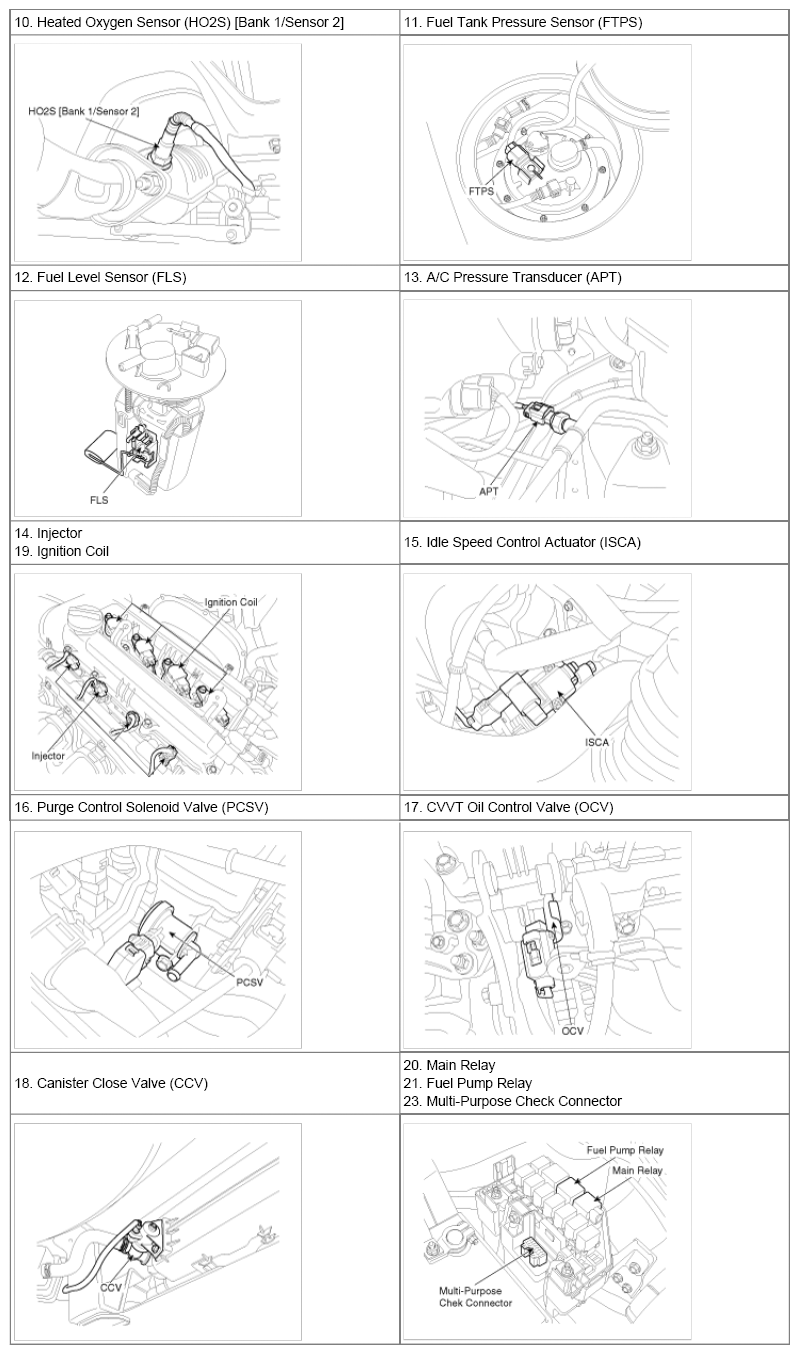

Fig 3: Locating Engine Control System Components (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
