Keyless Starting System: Specifications

Download the full database via torrent (~1.1 TB)

Specification

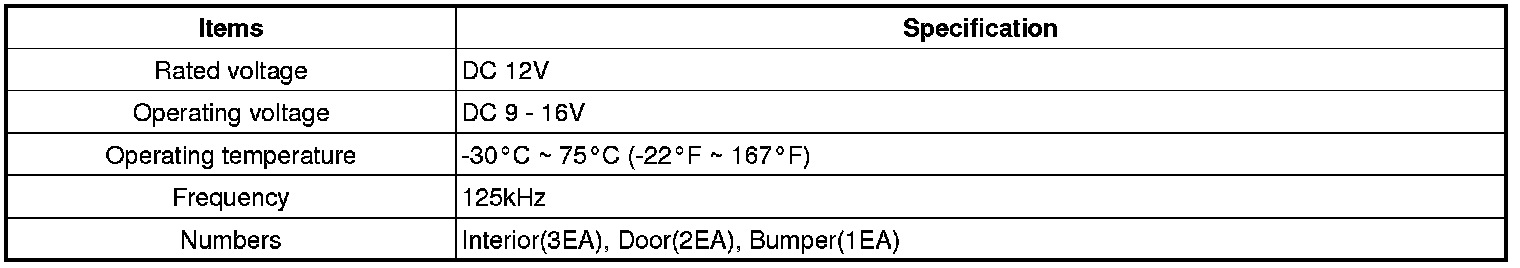

IPM (Smart Key Unit)

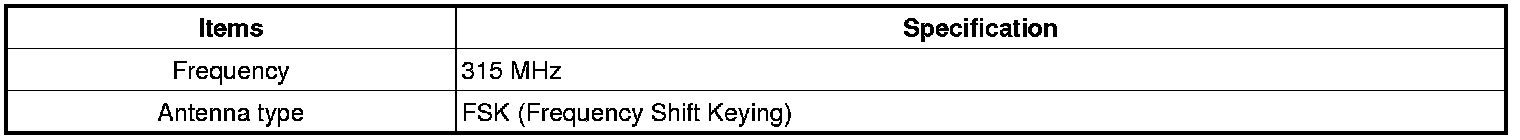

RF Receiver

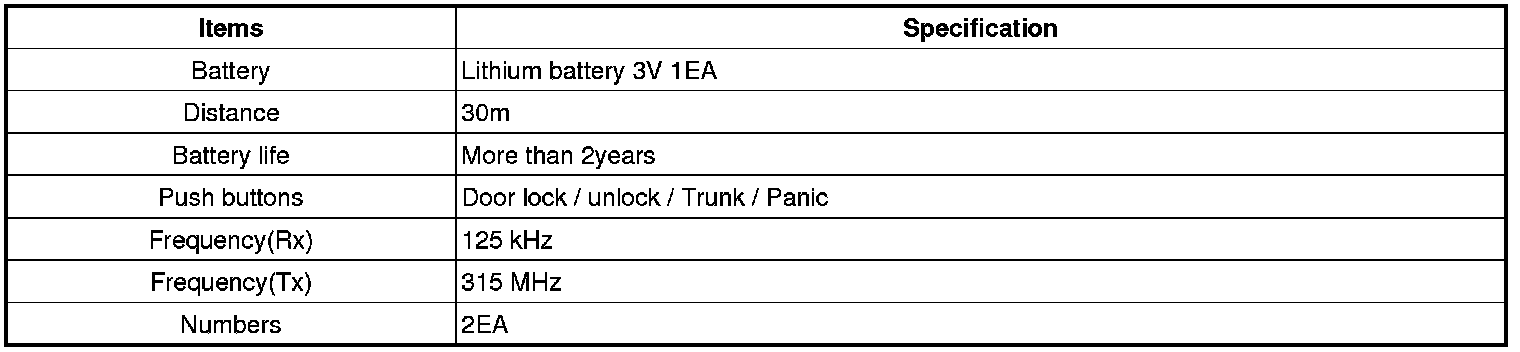

Smart Key FOB

WARNING:
An inappropriately disposed battery can be harmful to the environment and human health.
Dispose the battery according to your local law(s) or regulation.

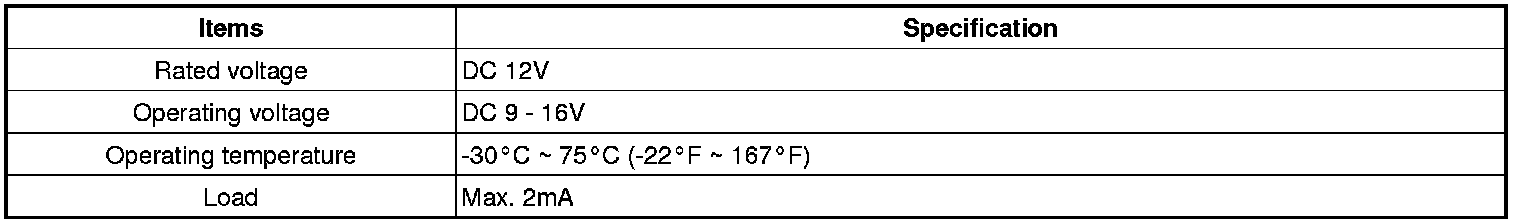

Antenna
