Home >> Kia >> 2012 >> Forte L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Engine Control Module

Engine Control Module

Download the full database via torrent (~1.1 TB)




ECM Terminal And Input/Output signal

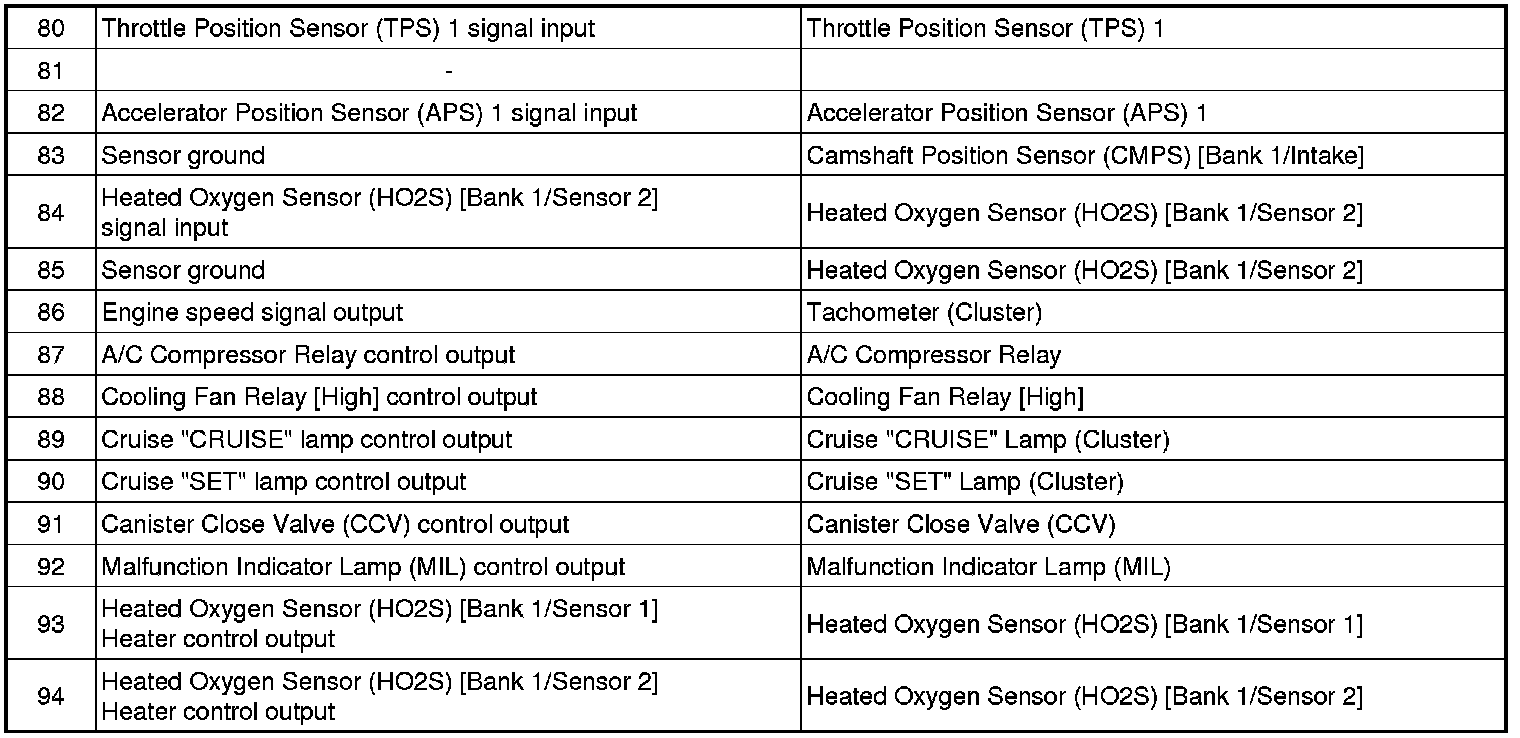

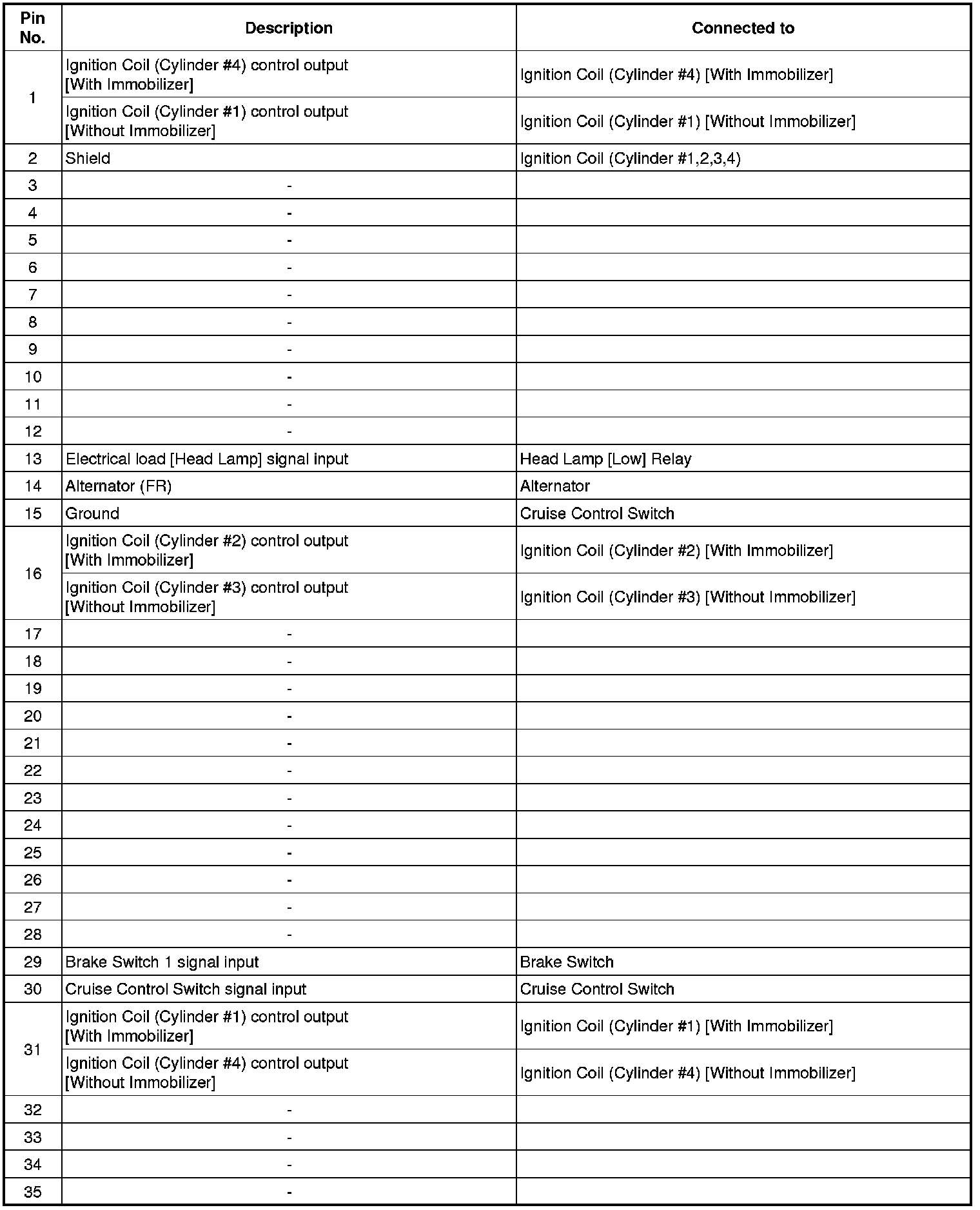

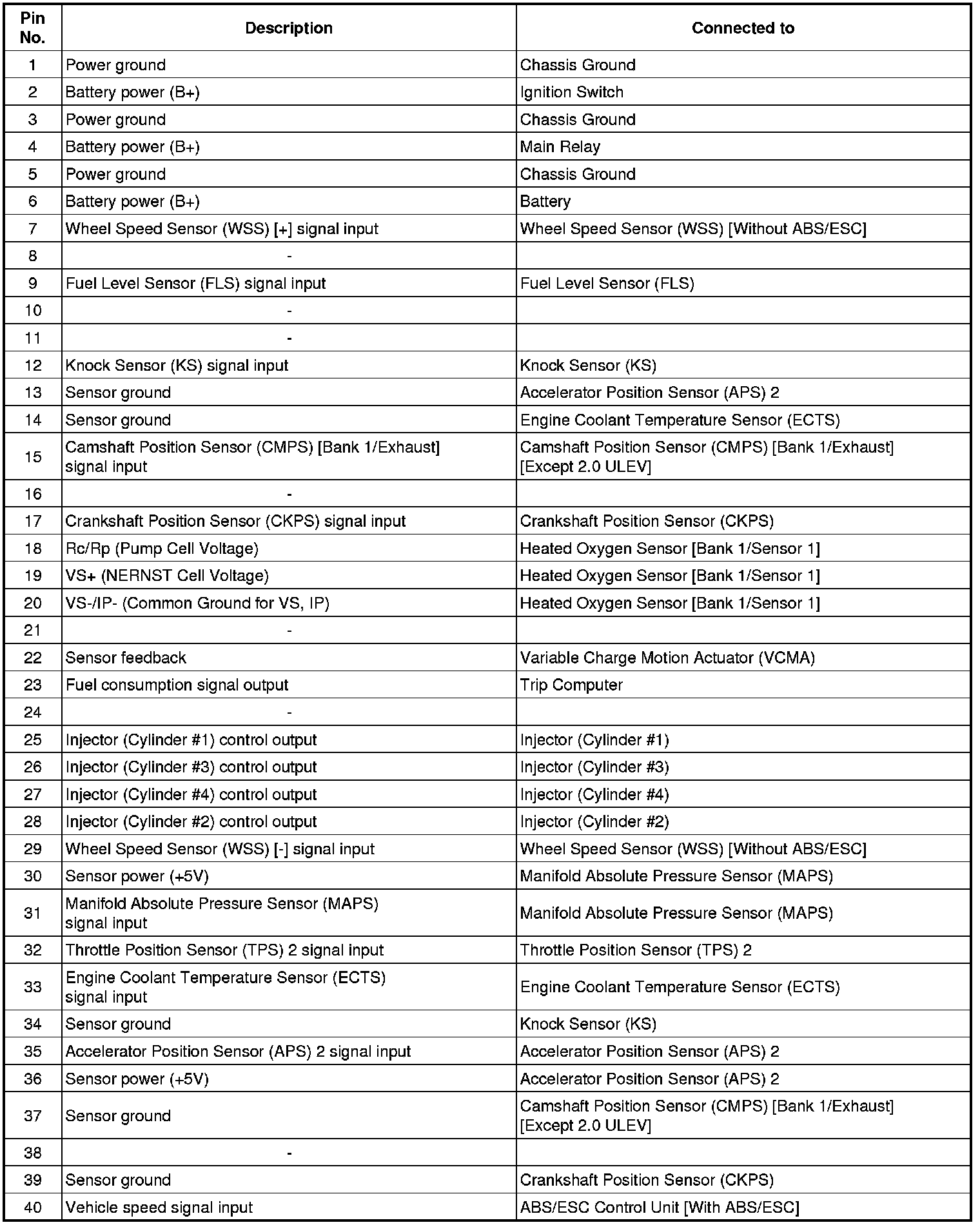

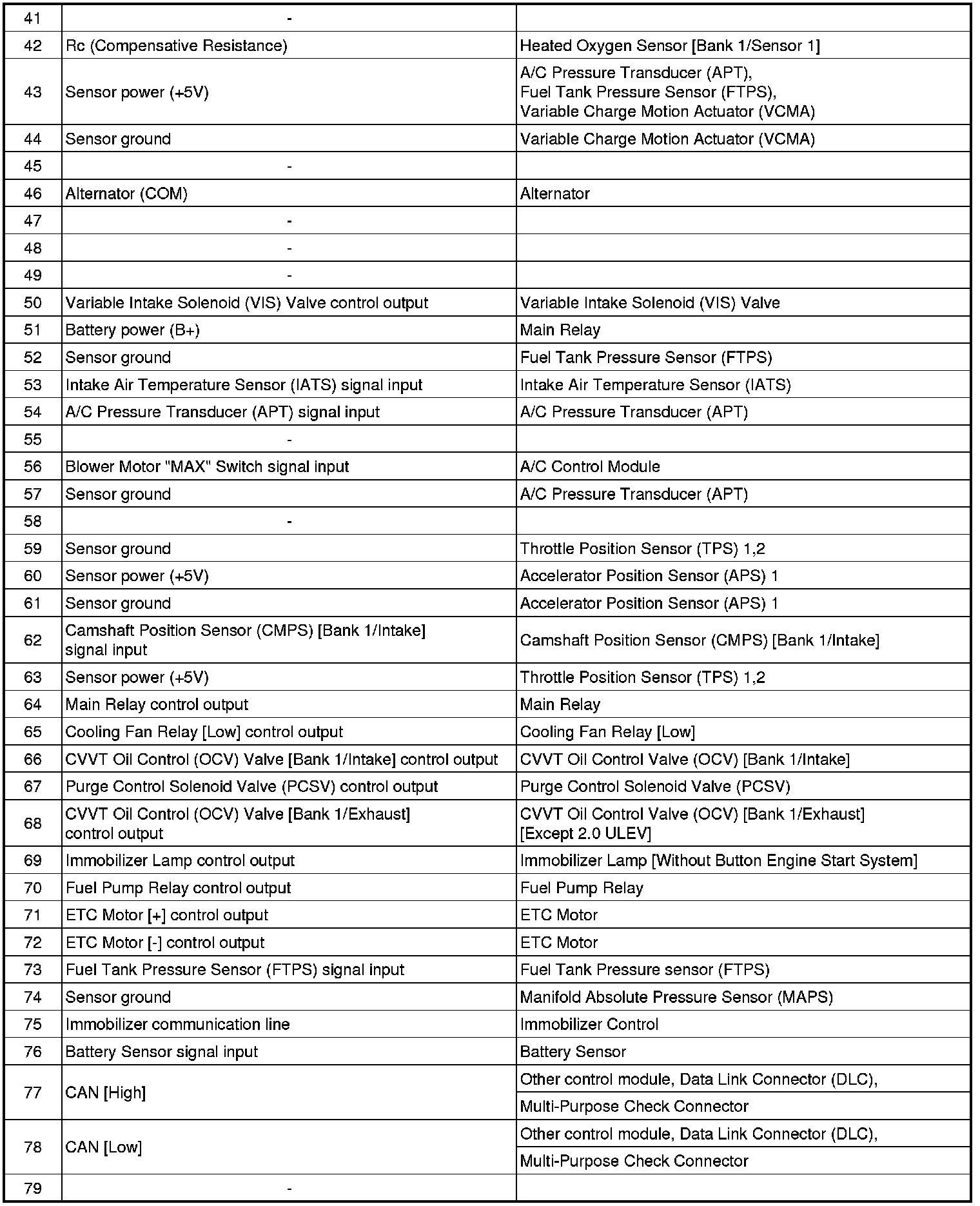

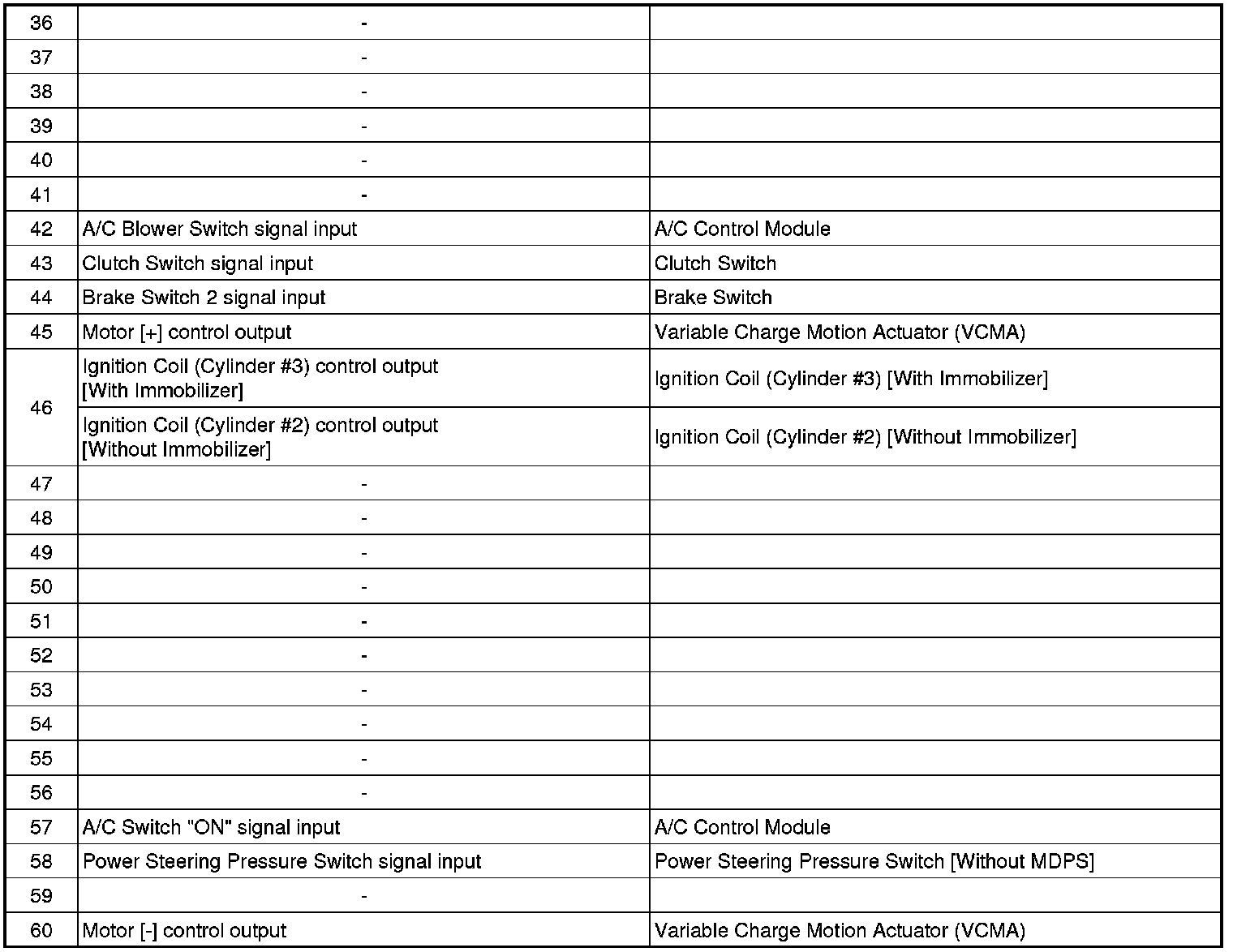

ECM Terminal Function

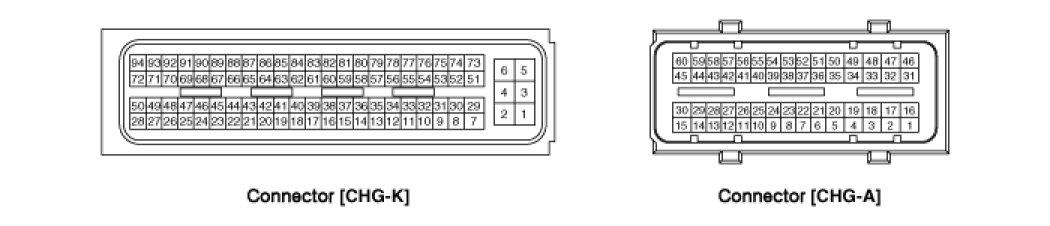

Connector [CHG-K]













Connector [CHG-A]

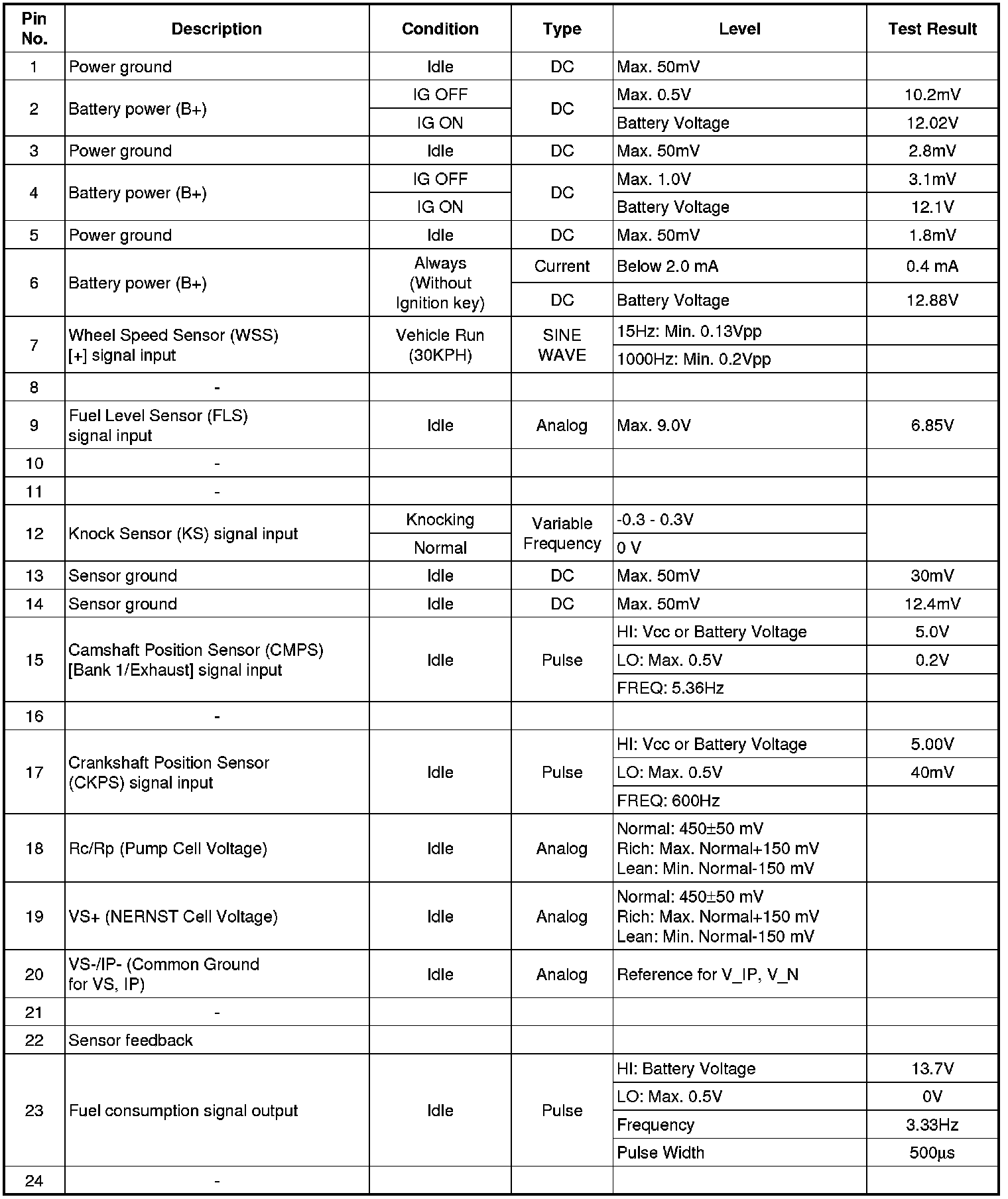

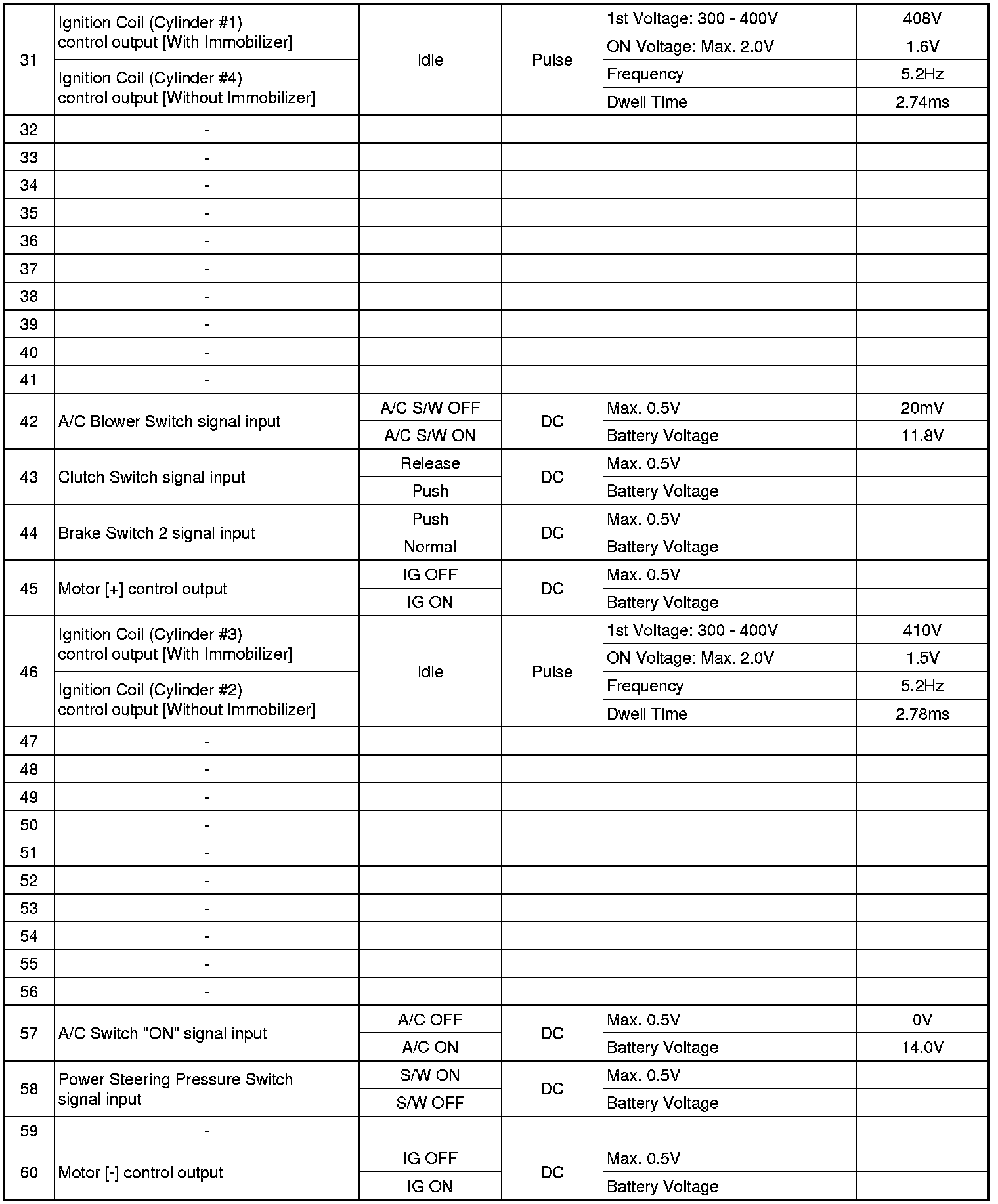

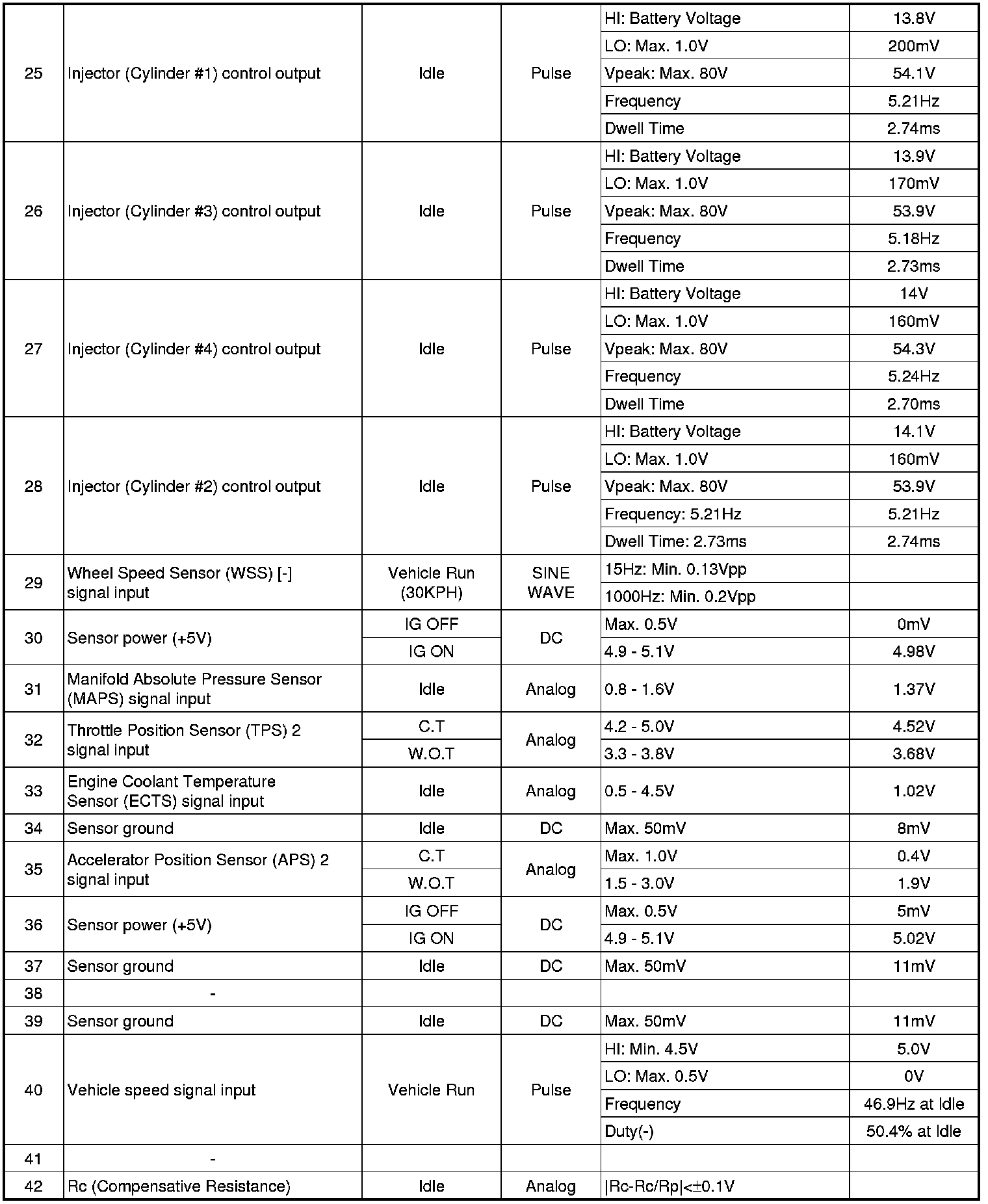

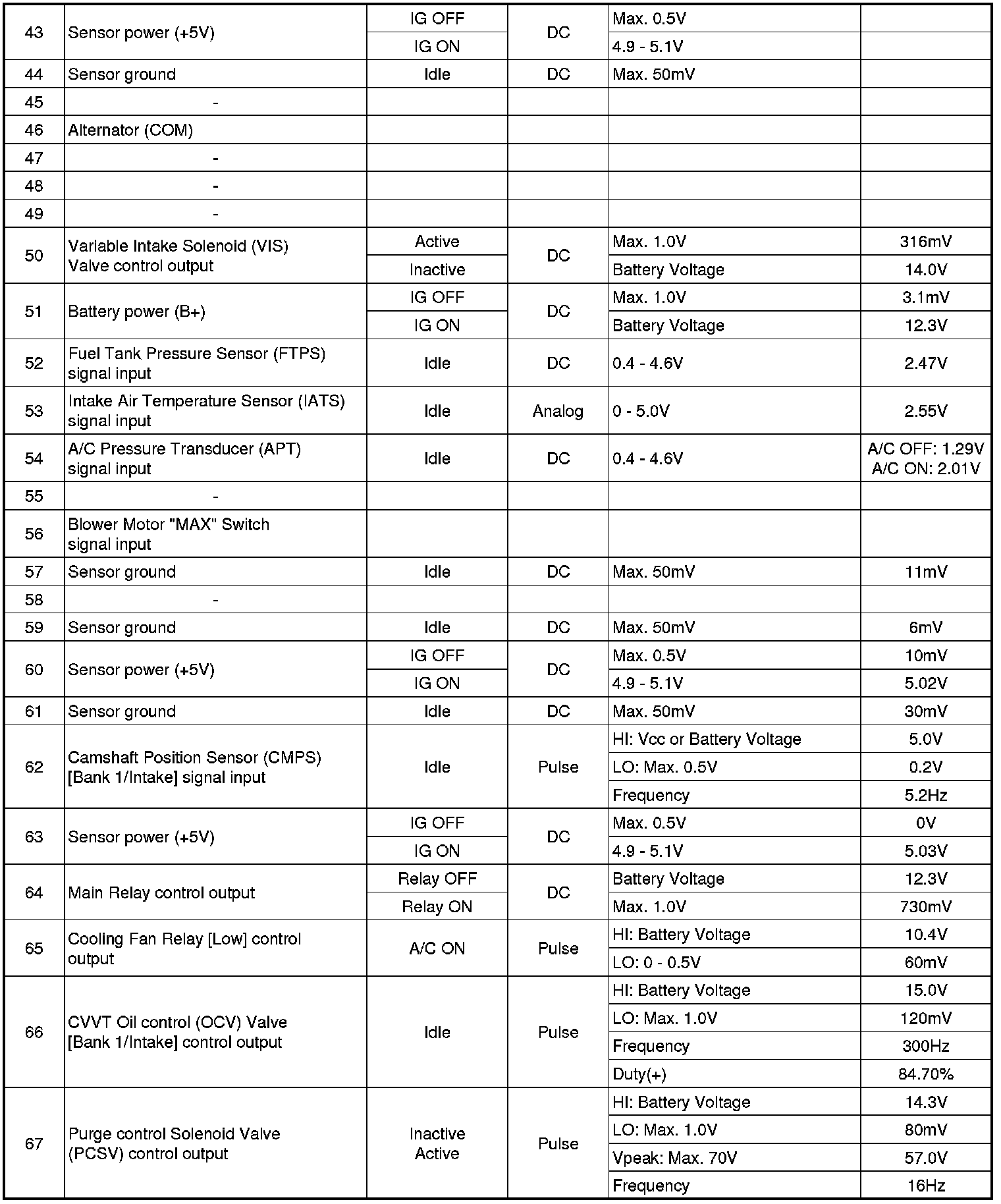

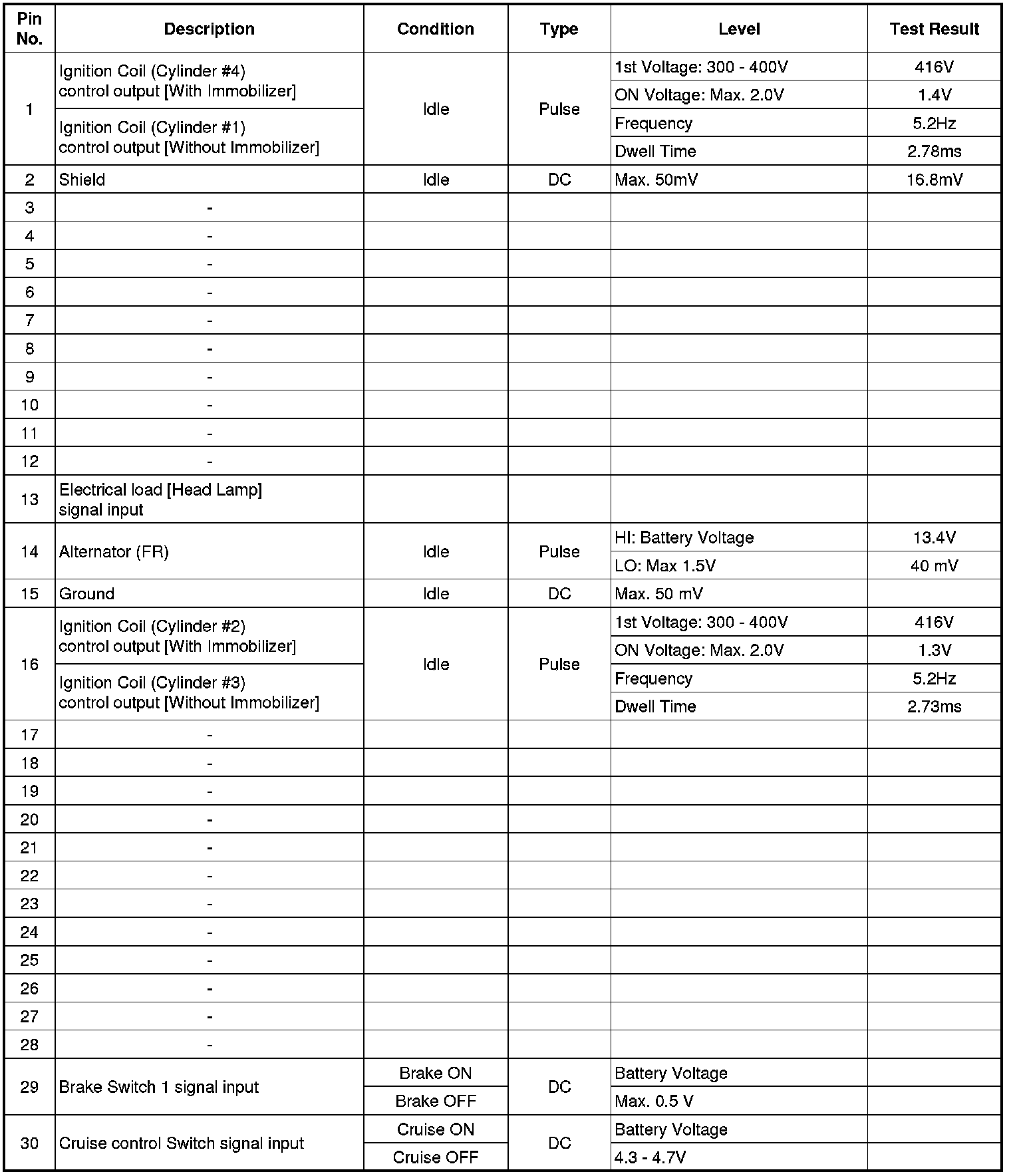

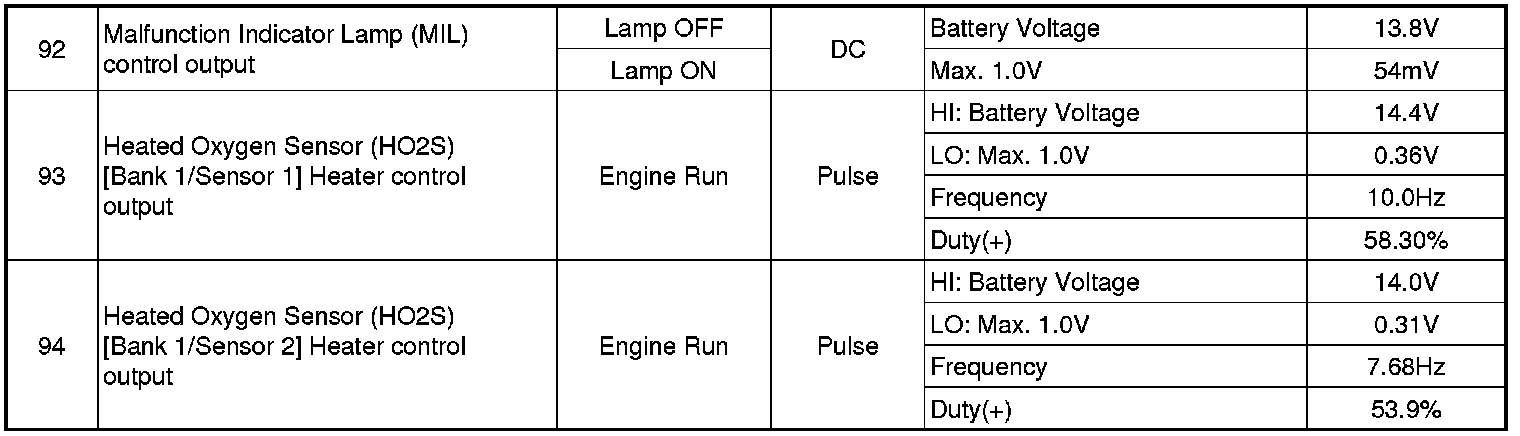

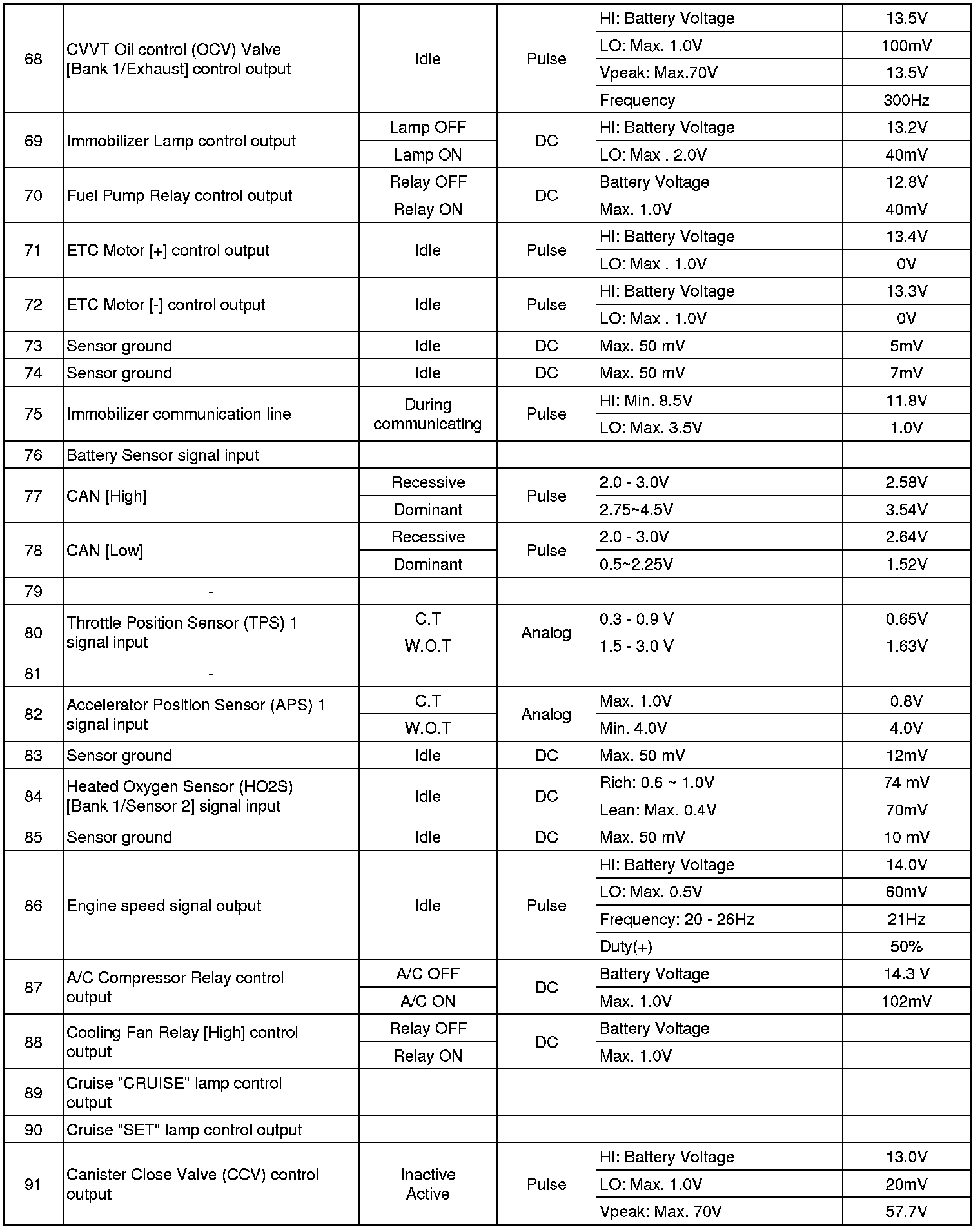

ECM Terminal Input/ Output signal
Connector [CHG-K]





















Connector [CHG-A]

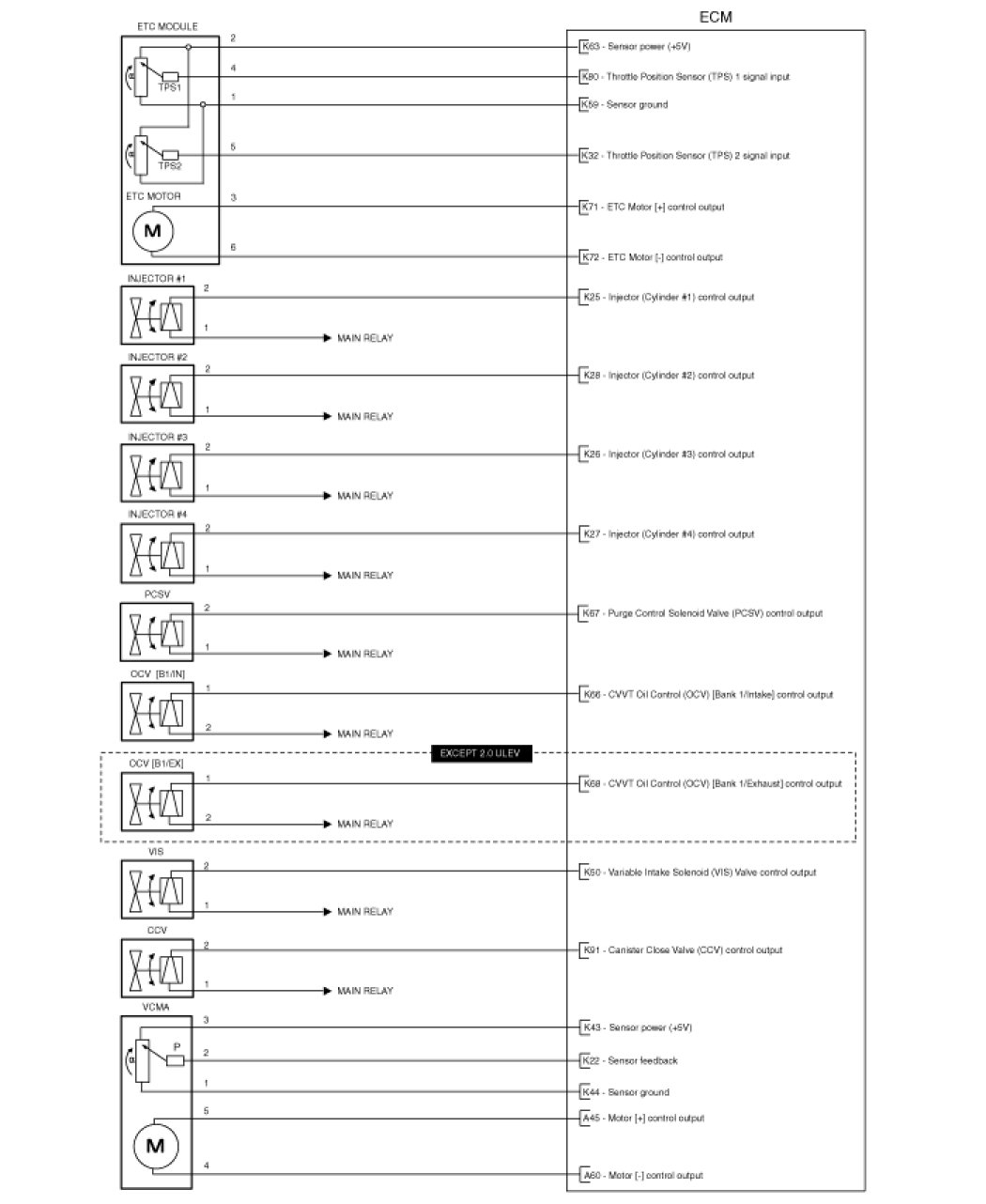

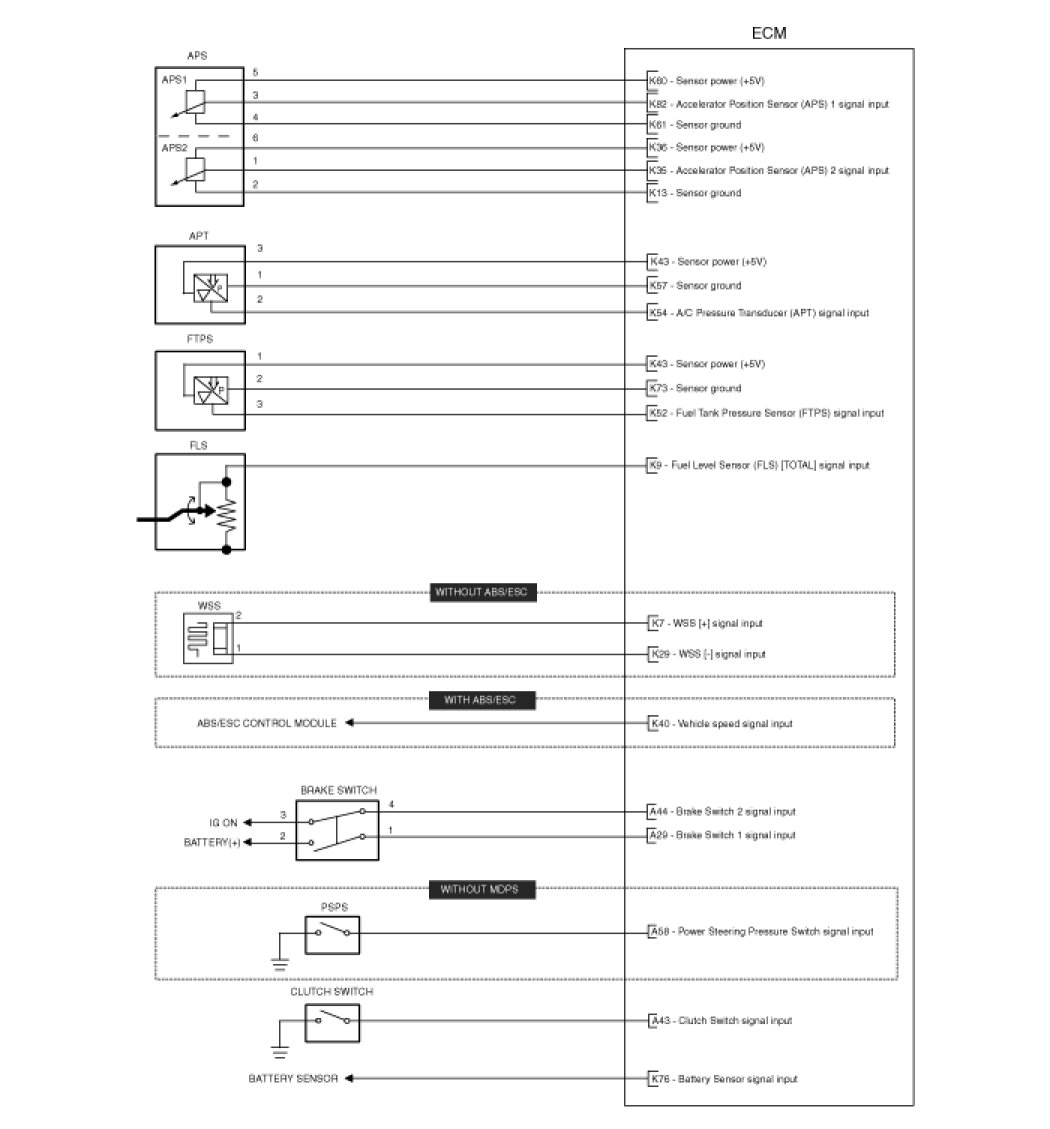

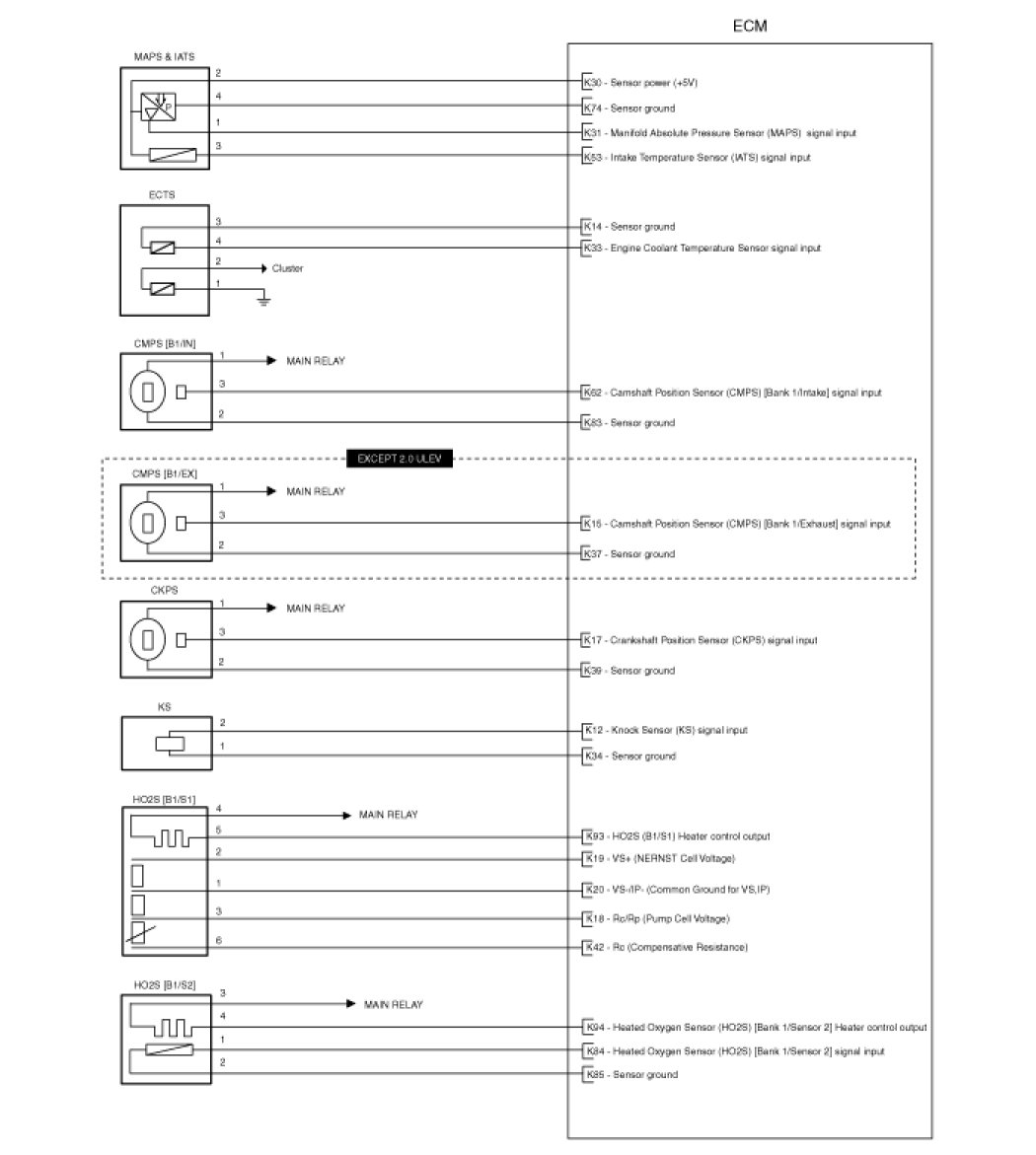

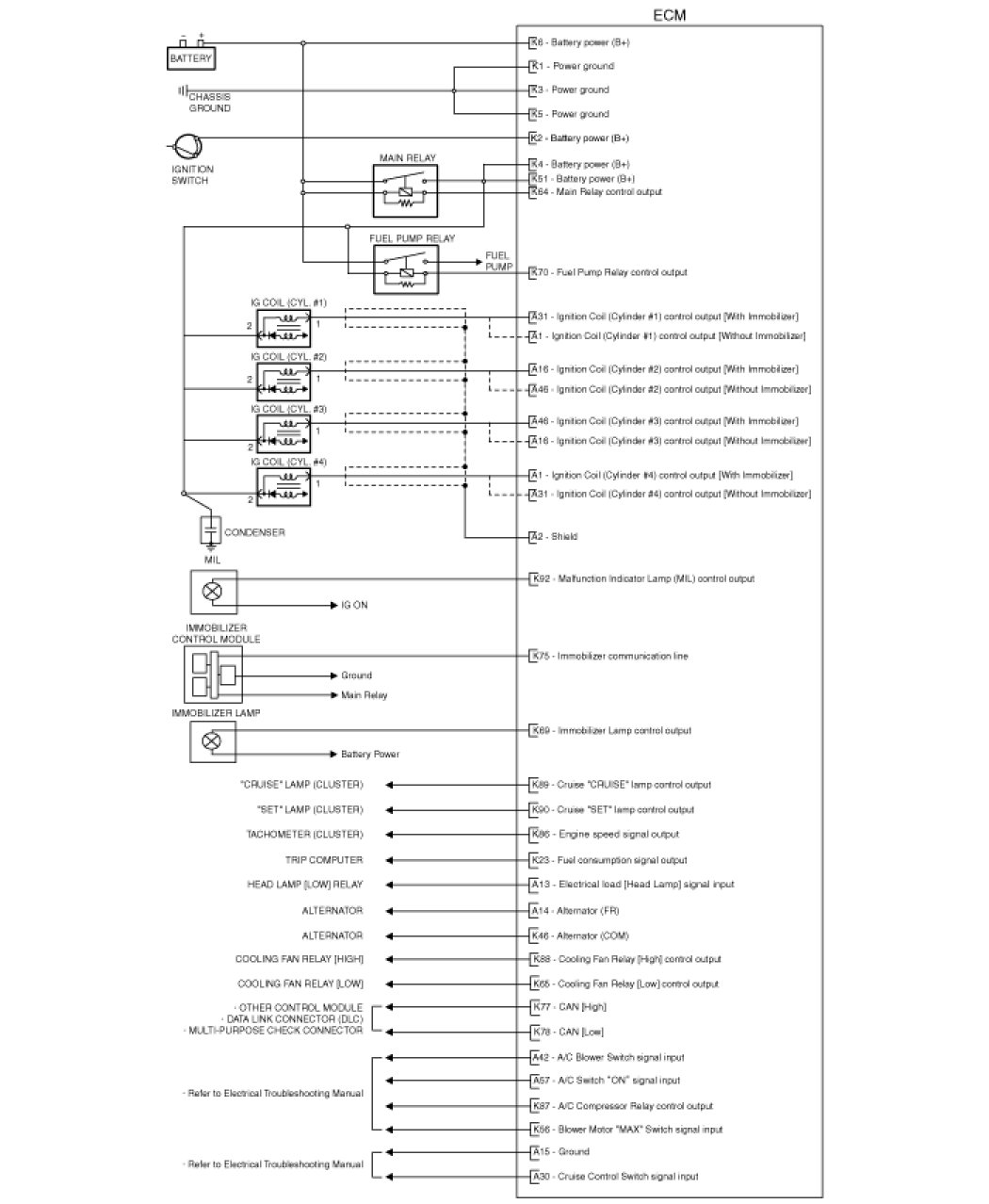

Circuit Diagram
