Forte LX, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Button Engine Start System
>>
PDM (Power Distribution Module)
>>
Component and Components Location
>>
Component
Component and Components Location: Component
Download the full database via torrent (~1.1 TB)

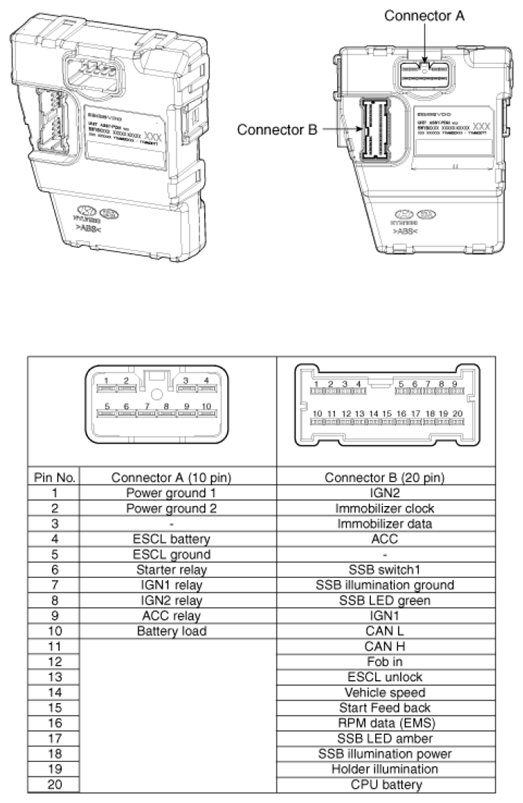

Fig 1: Power Distribution Module Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
