Engine Control Module

Download the full database via torrent (~1.1 TB)




ECM Terminal And Input/Output signal

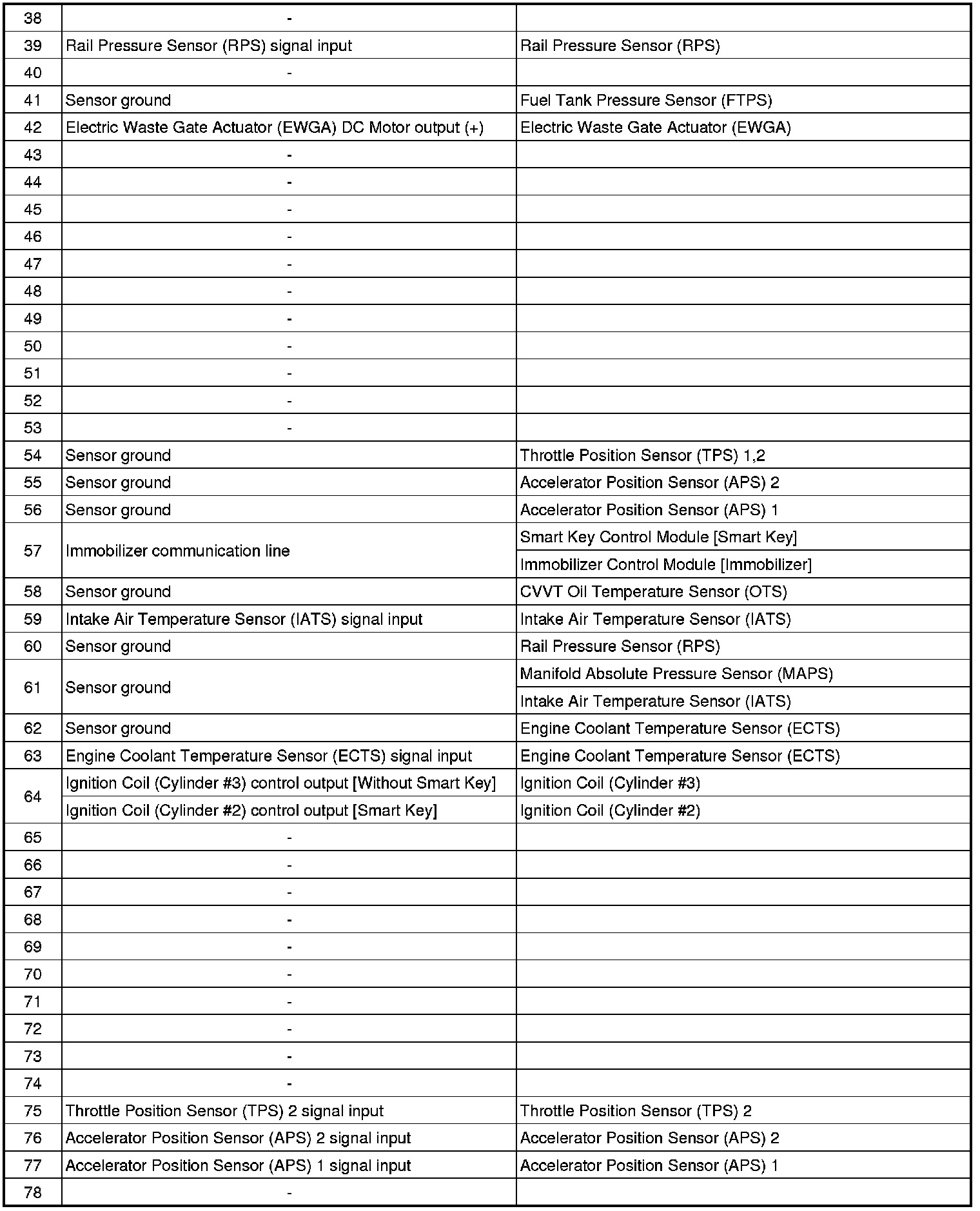

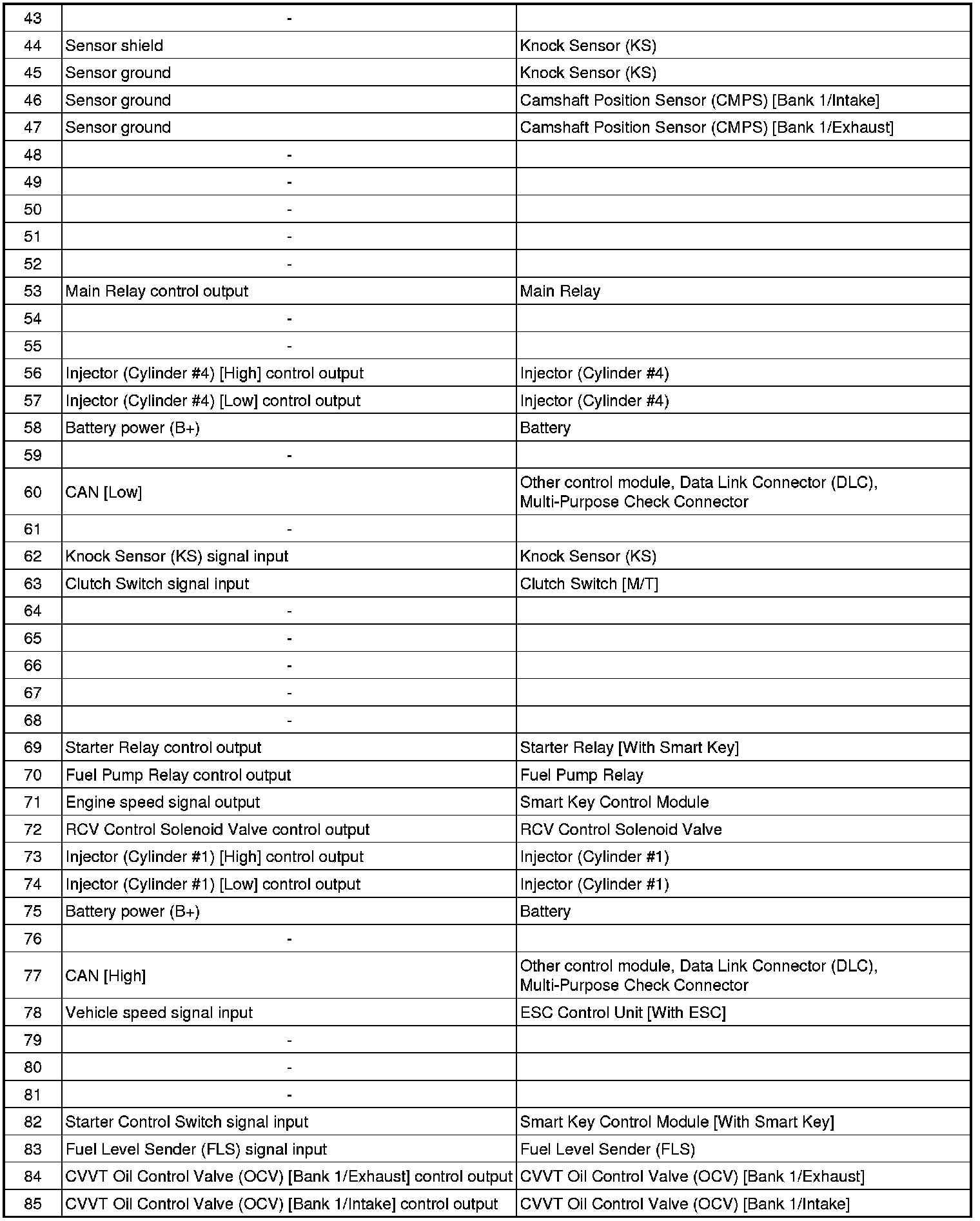

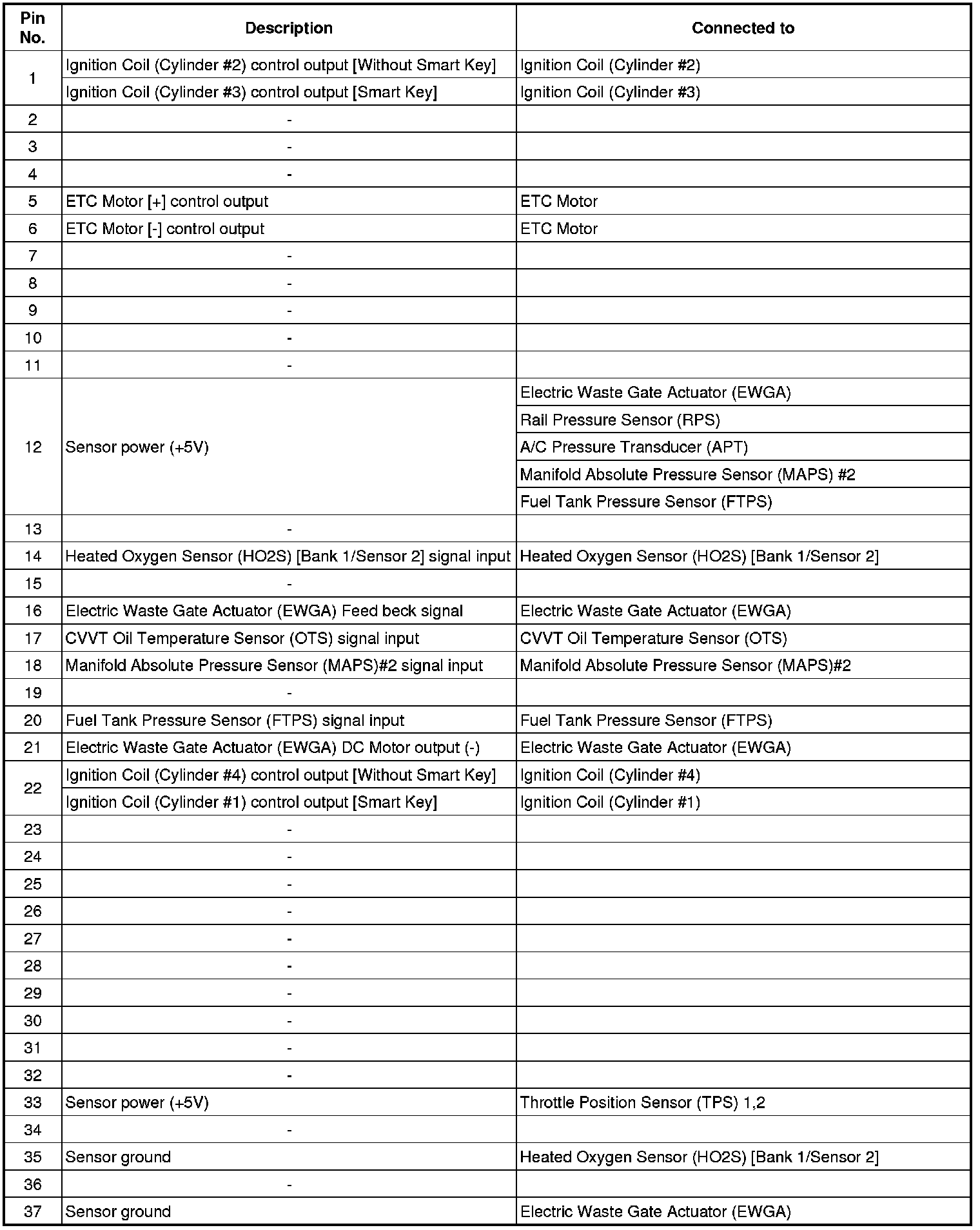

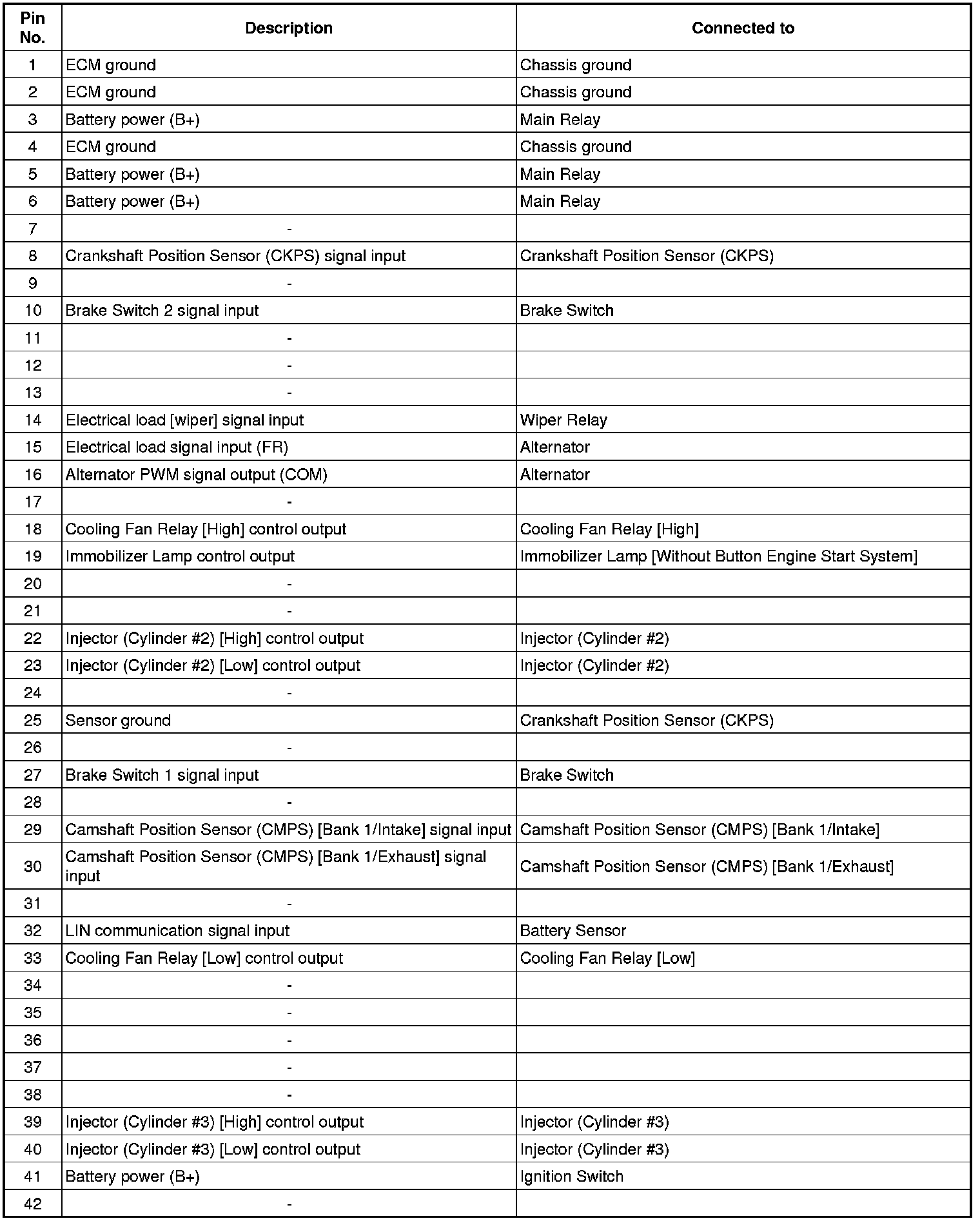

ECM Terminal Function
Connector [CHTG-AG]













Connector [CHTG-BG]

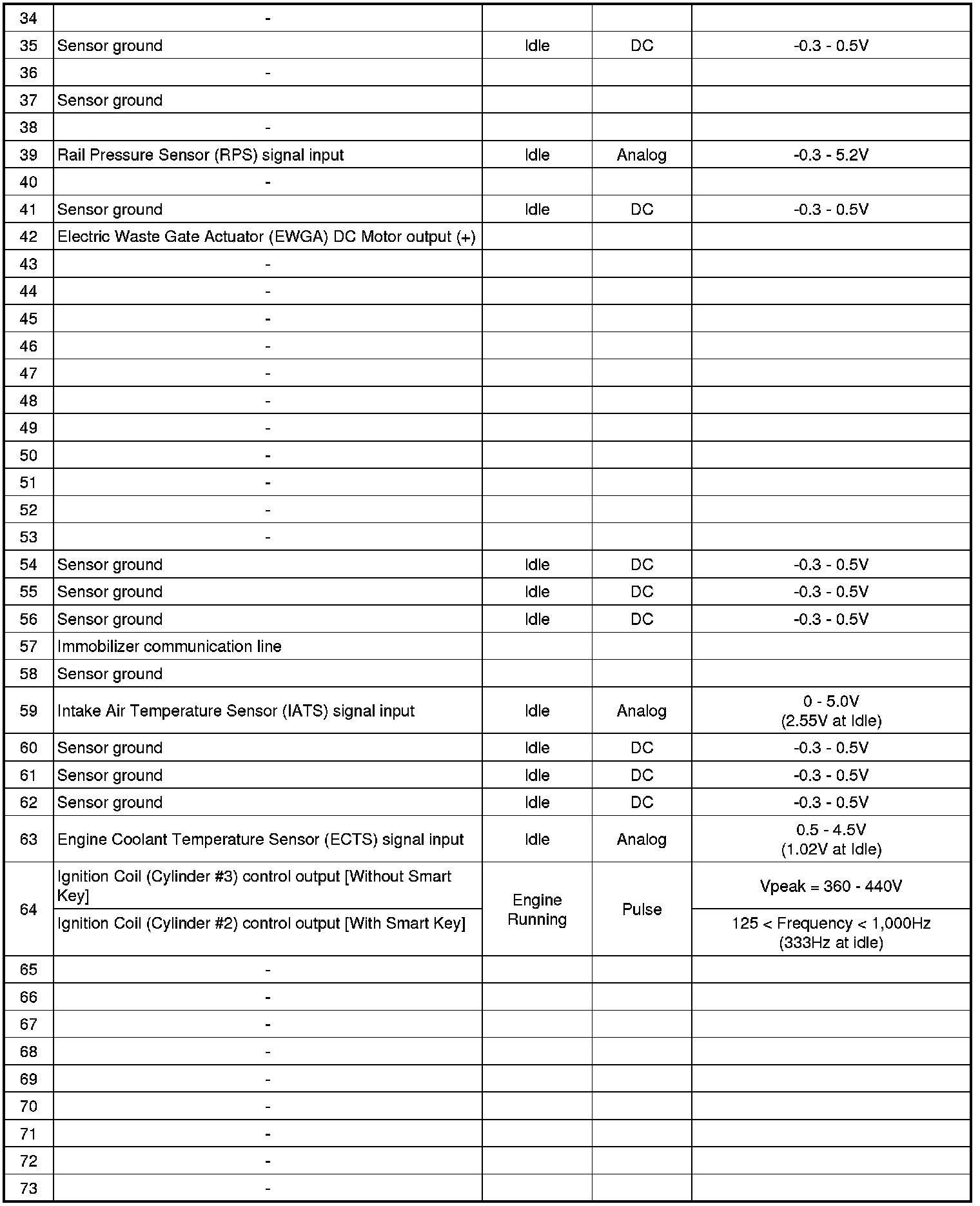

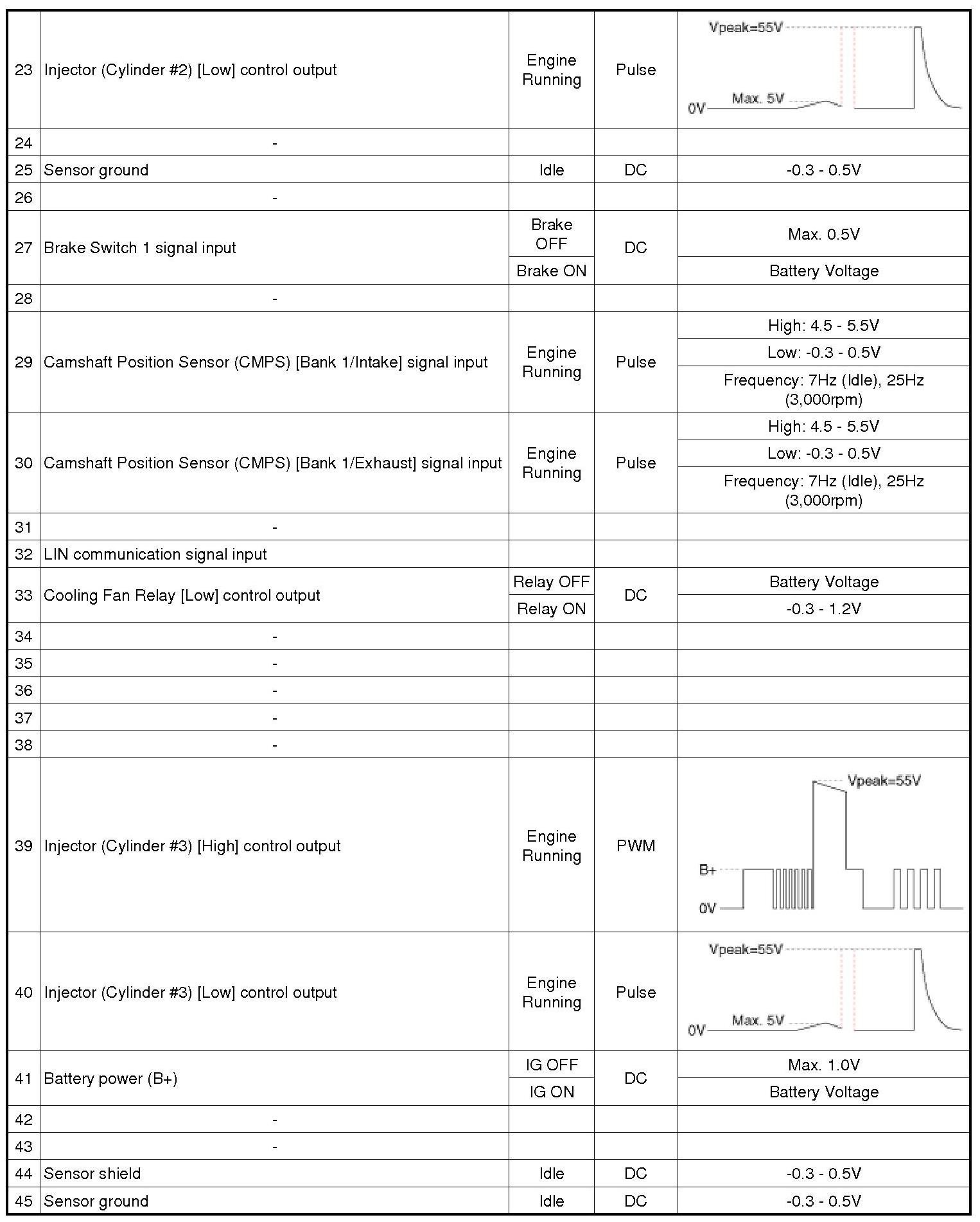

ECM Terminal Input/ Output signal
Connector [CHTG-AG]

















Connector [CHTG-BG]

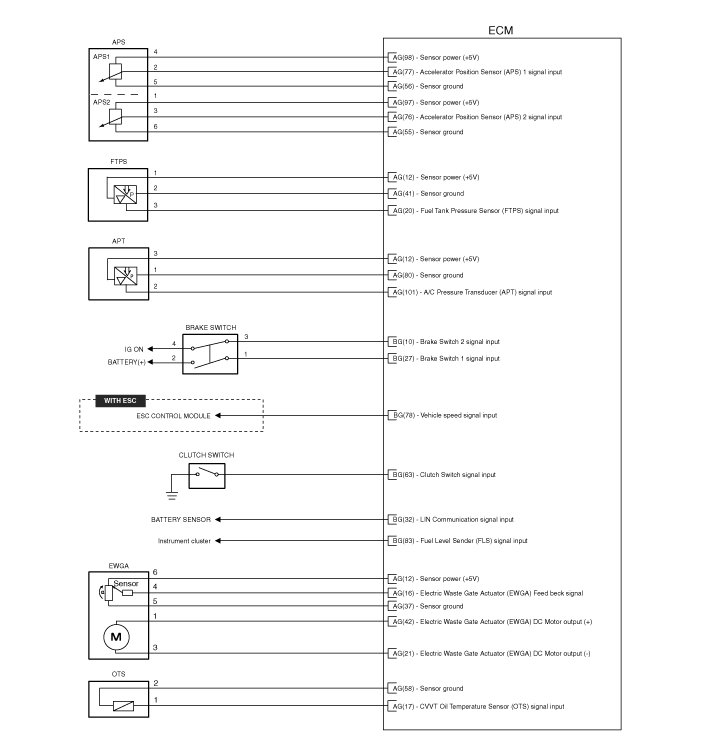

Circuit Diagram
