Brad's Car Manuals
: A 3rd party mirror of CHARM + LEMON car manuals
Home
>>
Kia
>>
2012
>>
Optima L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
EMS Box
EMS Box
Download the full database via torrent (~1.1 TB)

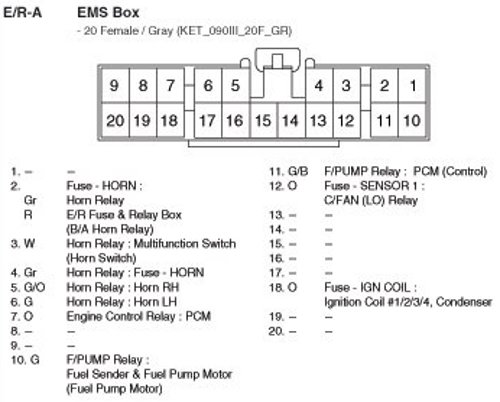

E/R-A EMS Box:

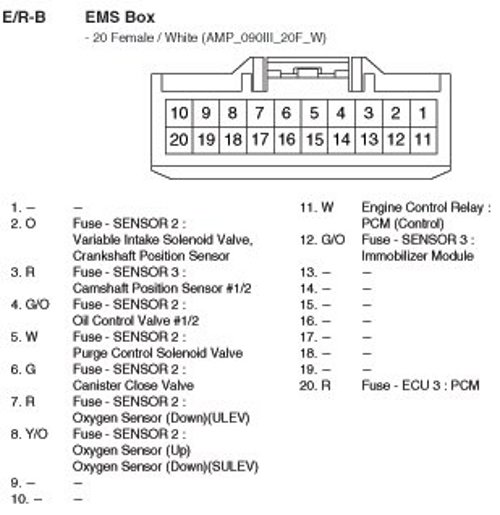

E/R-B EMS Box:
