Components and Components Location: Component
Download the full database via torrent (~1.1 TB)

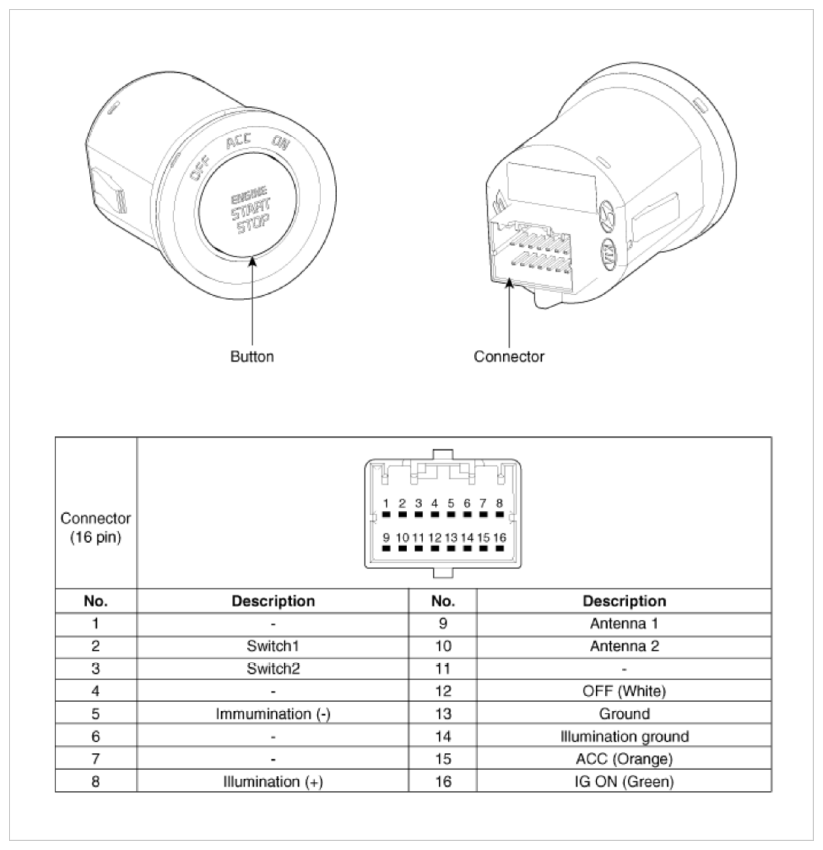

Fig 1: Start Stop Button Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
