Home >> Kia >> 2016 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Engine Control Module (ECM) >> Schematic Diagrams >> Circuit Diagram

Circuit Diagram

Download the full database via torrent (~1.1 TB)

(M/T)

G11950048Courtesy of
G11950049Courtesy of
G11950050Courtesy of
G11950051Courtesy of

(A/T)

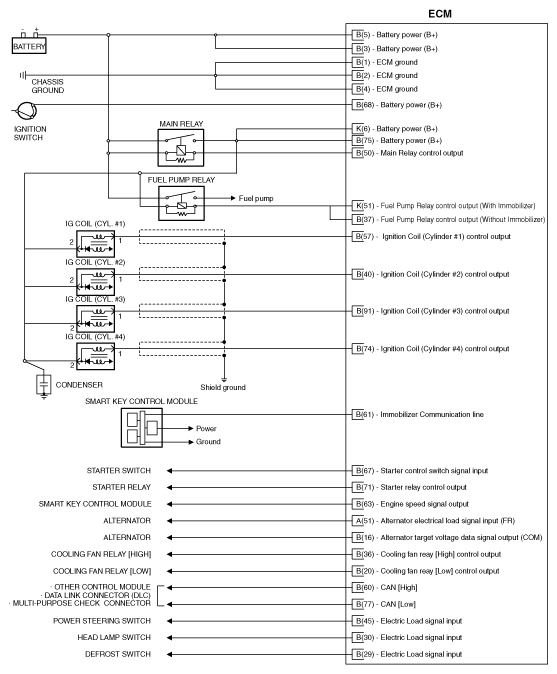

G11950052Courtesy of
G11950053Courtesy of
G11950054Courtesy of
G11950055Courtesy of
