Repair Procedures: Removal

Download the full database via torrent (~1.1 TB)
  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.

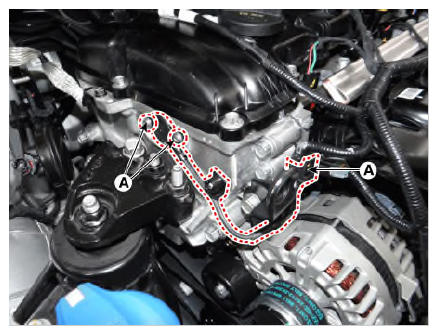

  2. Disconnect the VFS connector (A).
  3. Remove the mounting screws (B), and then remove the VFS from the engine.
    G12830290Courtesy of KIA MOTORS AMERICA, INC.
