Repair Procedures: Replacement

Download the full database via torrent (~1.1 TB)

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

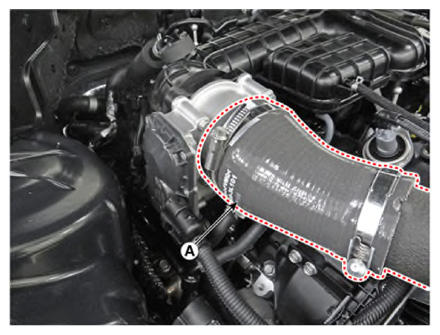

Disconnect the intake hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

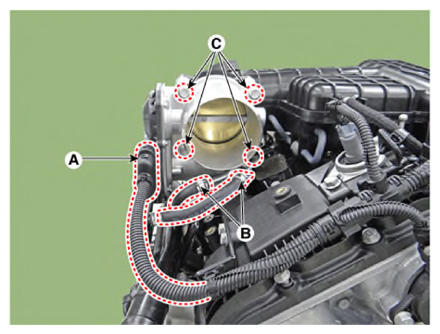

Disconnect the ETC module connector (A).
Disconnect the coolant hose (B).
Remove the ETC module from the engine after loosening the installation bolt (C).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

NOTE:

Install the component to the specified torques.
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
