Repair Procedures: Removal

Remove the air cleaner assembly.
(Refer to " Removal And Installation ")

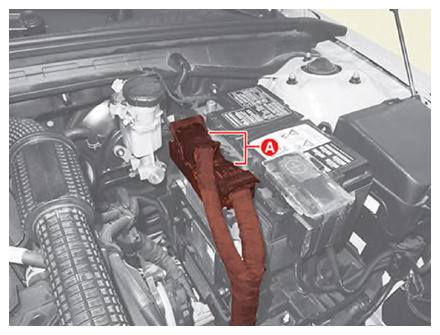

Disconnect the ECM connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

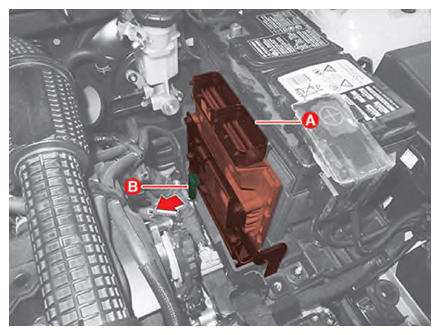

Remove the ECM (A) by pulling it upward while pulling the hook (B) in the direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

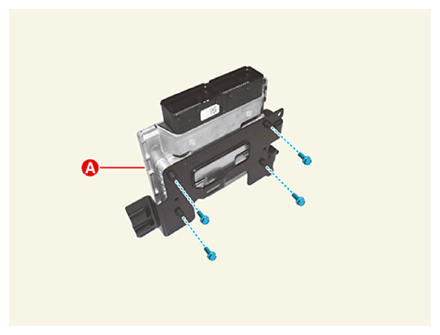

Remove the bracket (A) from the ECM after removing the mounting bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
