Repair Procedures: Installation

Download the full database via torrent (~1.1 TB)
NOTE:
  • Install the component with the specified torques.
  • Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
  • Apply the engine oil to the O-ring.

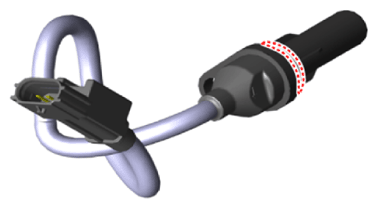

    G13704668Courtesy of KIA MOTORS AMERICA, INC.
  • Insert the sensor in the installation hole and be careful not to damage.
  1. Install in the reverse order of removal.
