Repair Procedures: Installation

Download the full database via torrent (~1.1 TB)

Install in the reverse order of removal.
NOTE:
- Always use new gasket.
- When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.

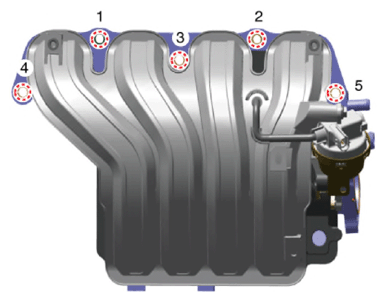

  Fig 1: Intake Manifold Bolts And Nuts Tightening Sequence
  Courtesy of KIA MOTORS AMERICA, INC.
