Rear Wheel Alignment: Toe

Download the full database via torrent (~1.1 TB)

Courtesy of HYUNDAI MOTOR AMERICA

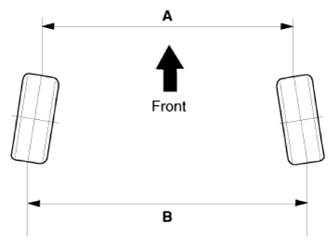

B - A > 0: Toe in (+)

B - A < 0: Toe out (-)

Toe is pre-set at the factory, so it does not need to be adjusted. If the toe is not within the standard value, replace or repair the damaged parts and then inspect again.

Toe:

Total: 0.36° (+ 0.24°/- 0.36°)

individual: 0.18° (+ 0.12°/- 0.18°)
