Discovery
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - System & Component Testing
>>
Component Locations
Component Locations
Download the full database via torrent (~1.1 TB)

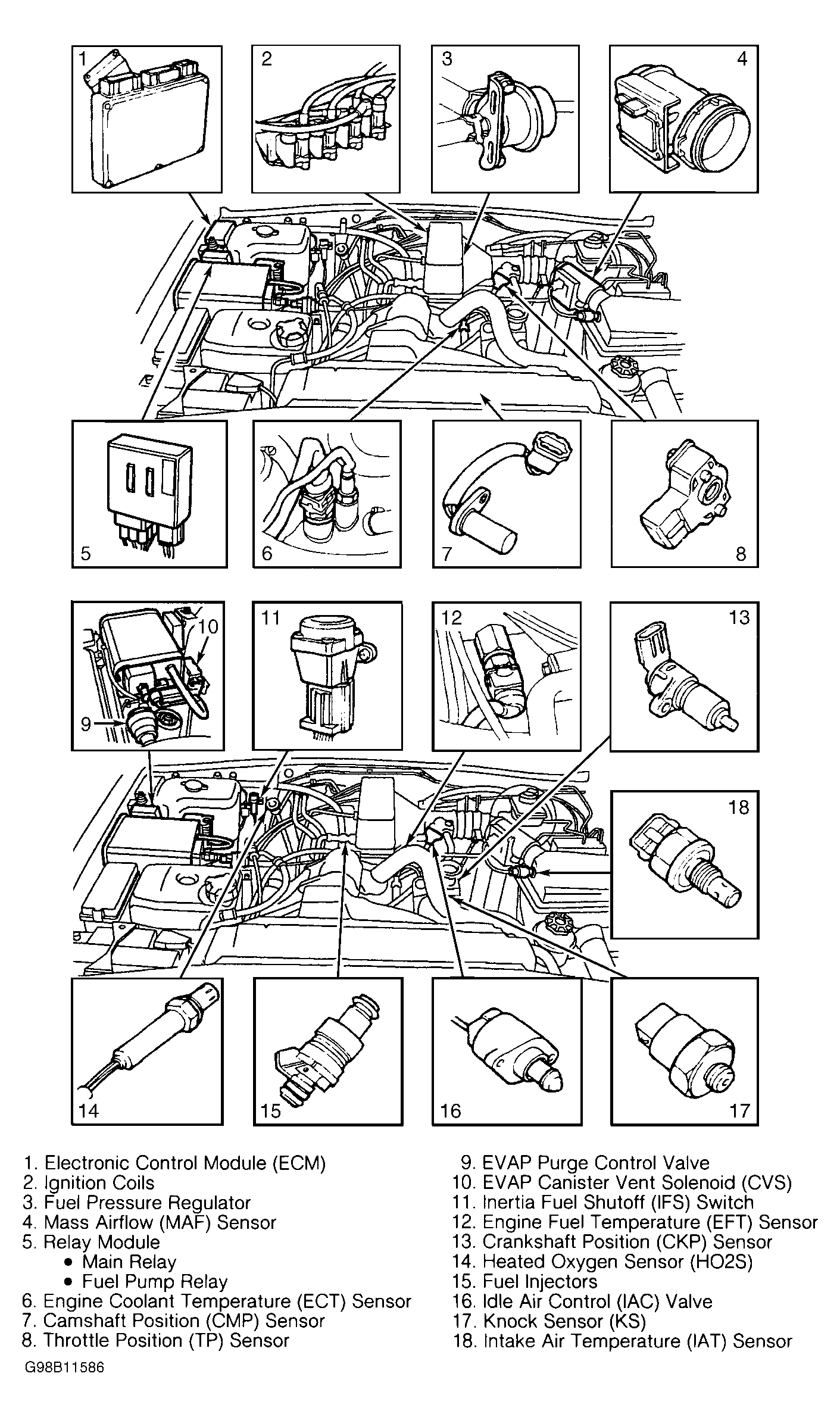

Fig 1: Locating Computerized Engine Components (Discovery - GEMS)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 2: Locating Computerized Engine Control Components (Discovery Series II - Bosch)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 3: Locating Computerized Engine Control Components (Range Rover - Bosch - 1 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 4: Locating Computerized Engine Control Components (Range Rover - Bosch - 2 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
