General Data: Steering

Download the full database via torrent (~1.1 TB)

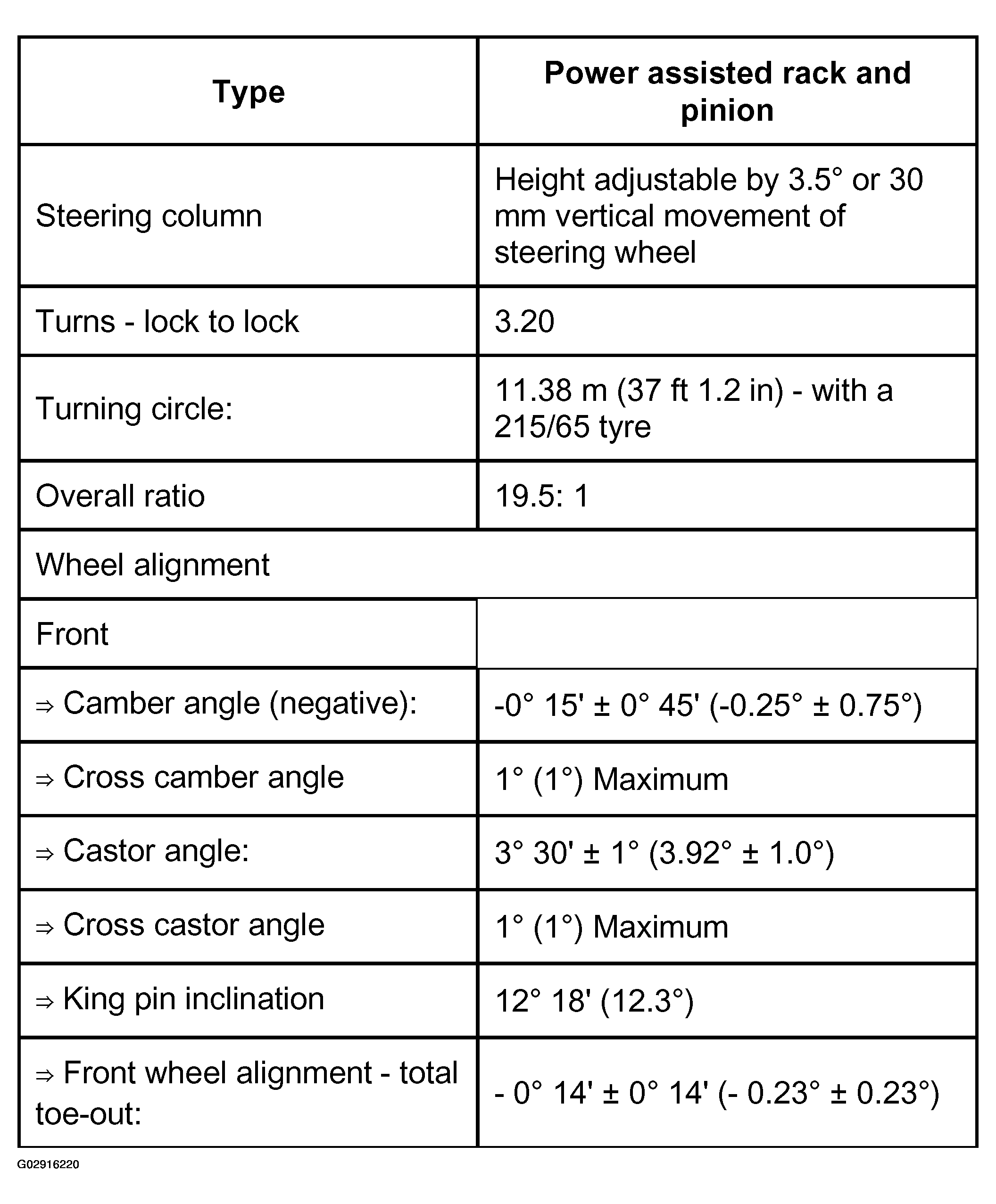

Fig 1: Steering Specification (1 Of 2)
G02916220Courtesy of LAND ROVER NORTH AMERICA, INC.

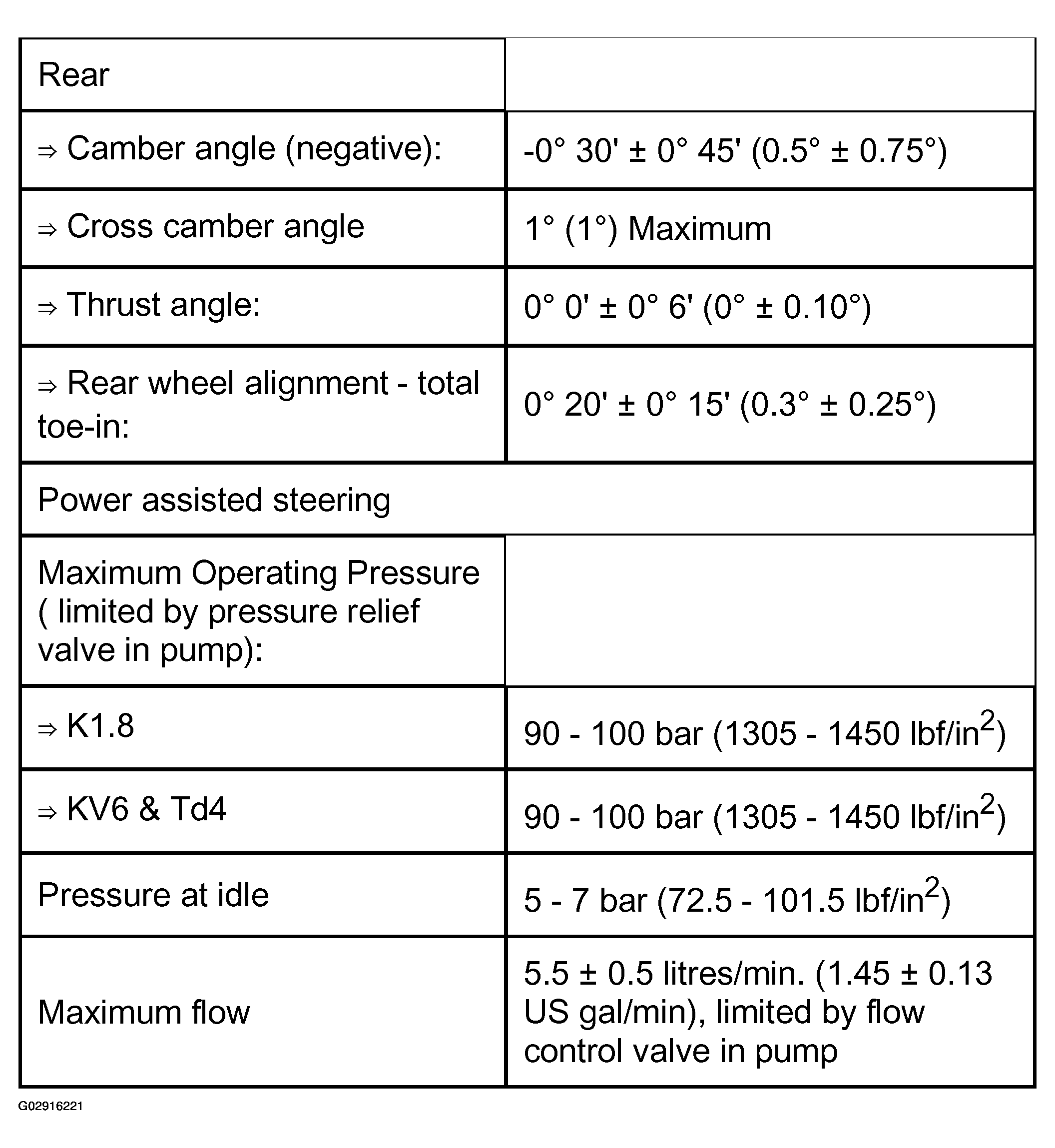

Fig 2: Steering Specification (2 Of 2)
G02916221Courtesy of LAND ROVER NORTH AMERICA, INC.
