Mode 6 Data
Mode 6 Data
Download the full database via torrent (~1.1 TB)

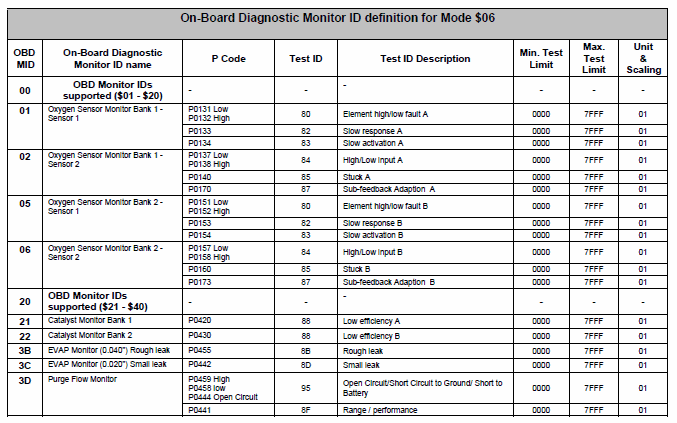

Fig 1: Mode 6 Data (1 Of 3)
Courtesy of LAND ROVER NORTH AMERICA, INC.

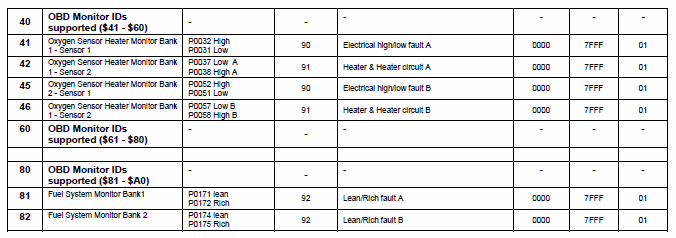

Fig 2: Mode 6 Data (2 Of 3)
Courtesy of LAND ROVER NORTH AMERICA, INC.

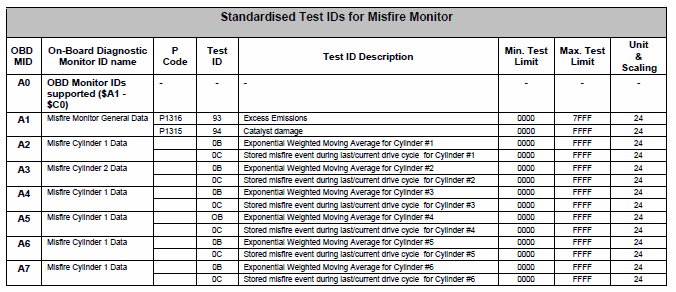

Fig 3: Mode 6 Data (3 Of 3)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
