Code 12: Rpm Signal
Code 12: Rpm Signal
Download the full database via torrent (~1.1 TB)

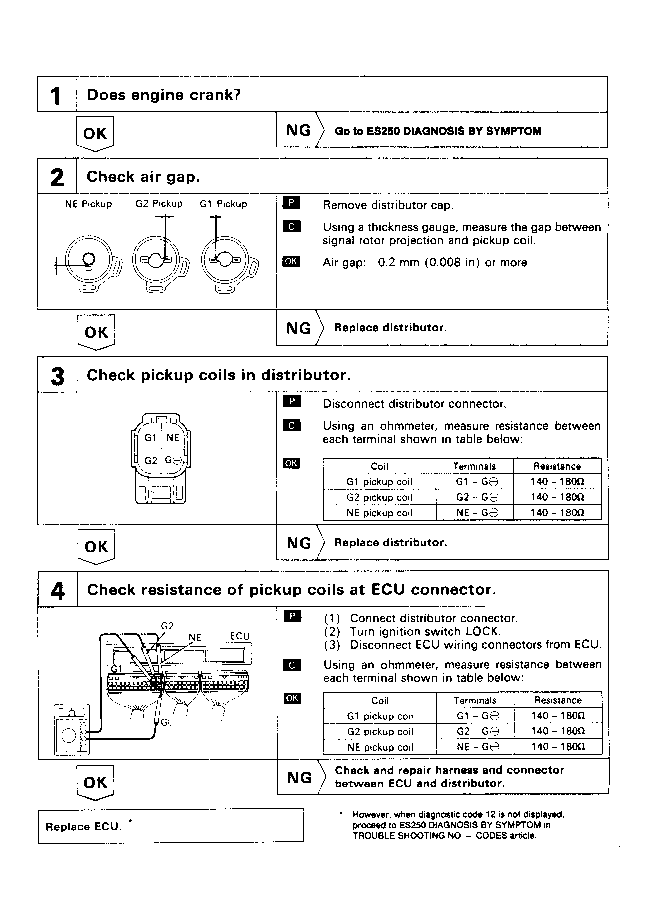

Fig 1: Code 12: RPM Signal Test
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
