Engine Controls - Tests W/Codes
>>
Code 14: Ignition Signal
Code 14: Ignition Signal
Download the full database via torrent (~1.1 TB)

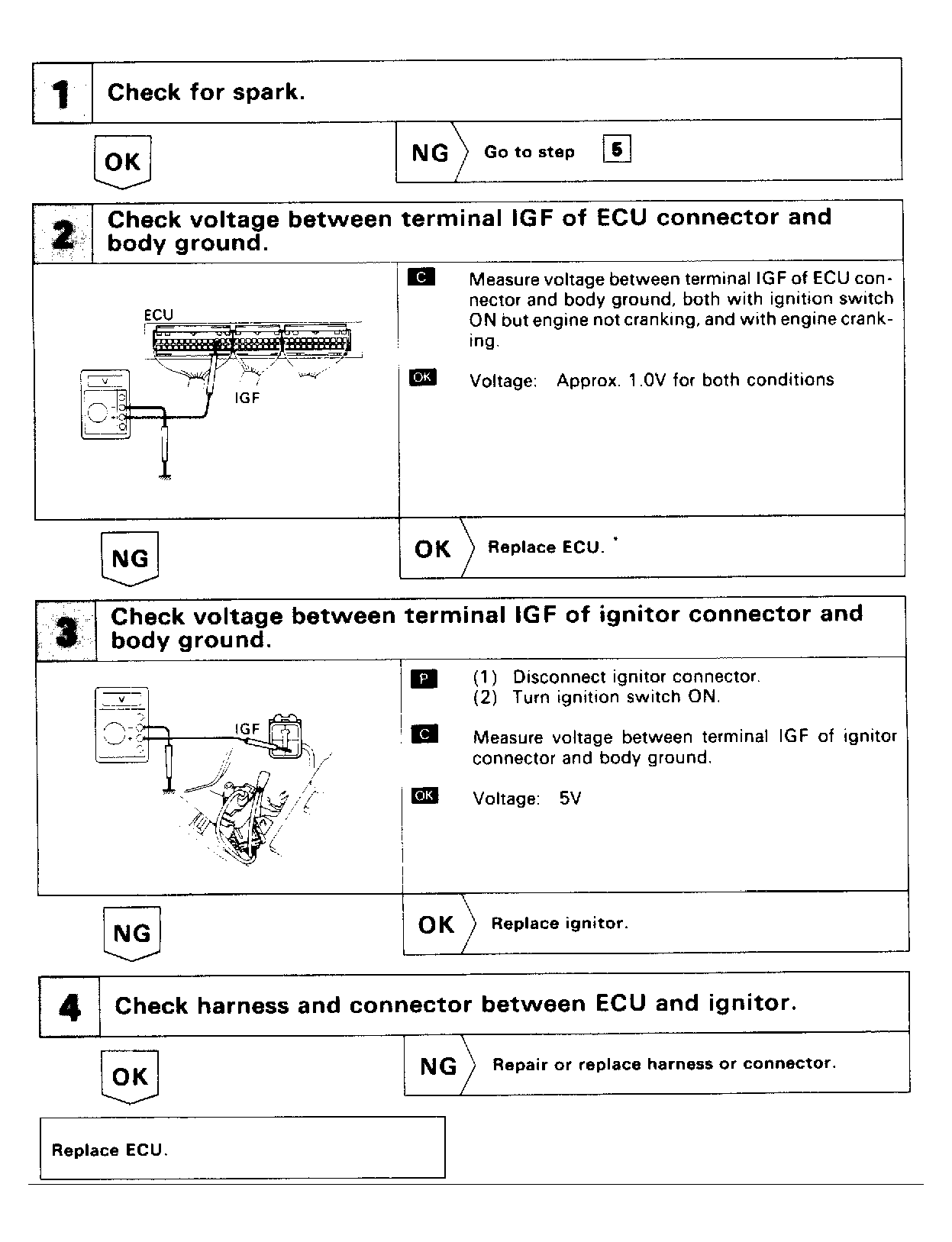

Fig 1: Code 14: Ignition Signal Steps 1-4 (1 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

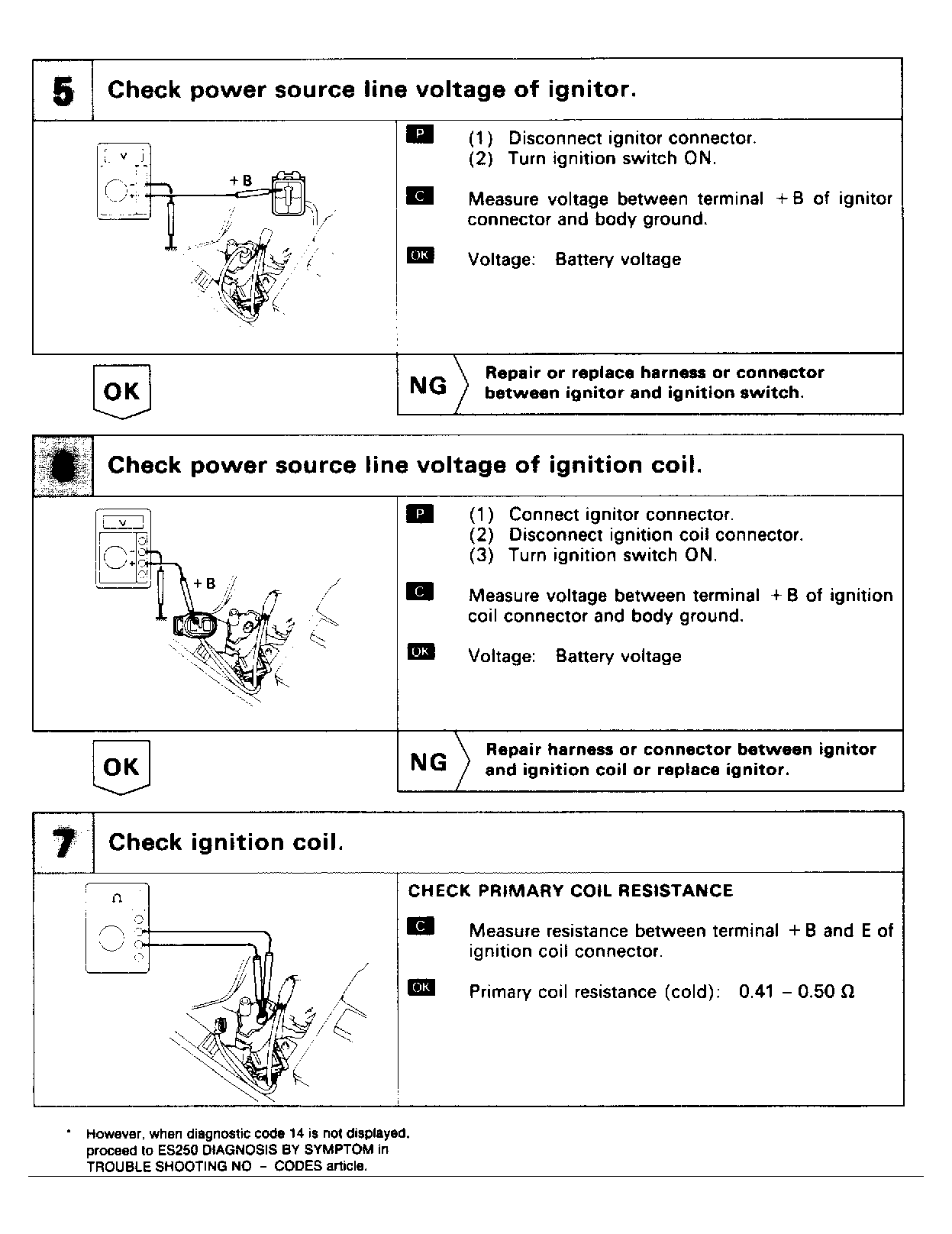

Fig 2: Code 14: Ignition Signal Steps 5-7 (2 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

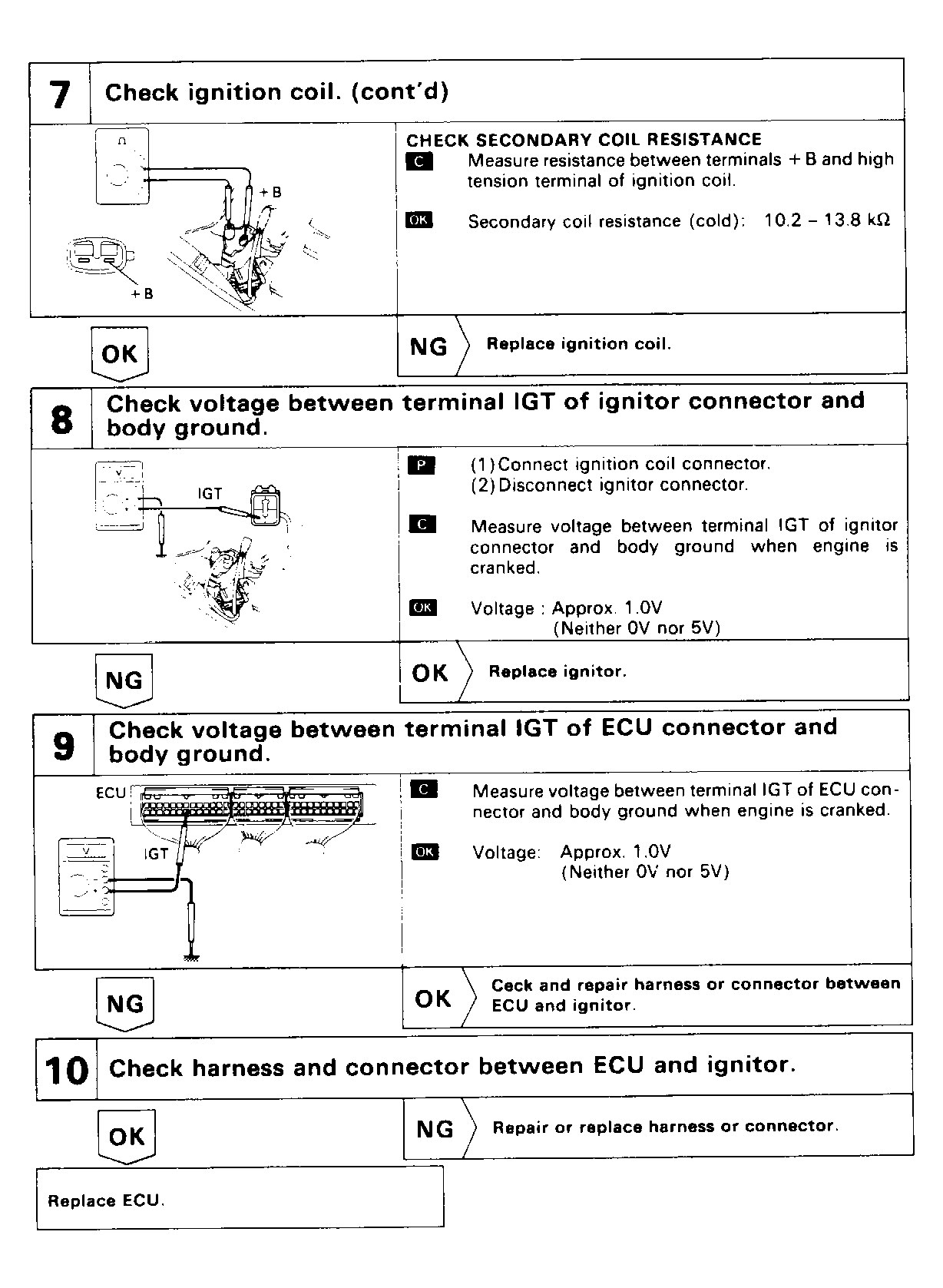

Fig 3: Code 14: Ignition Signal Steps 7 (Cont.)-10 (3 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
