Component Location Graphics

Download the full database via torrent (~1.1 TB)
NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Dash
G00102289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

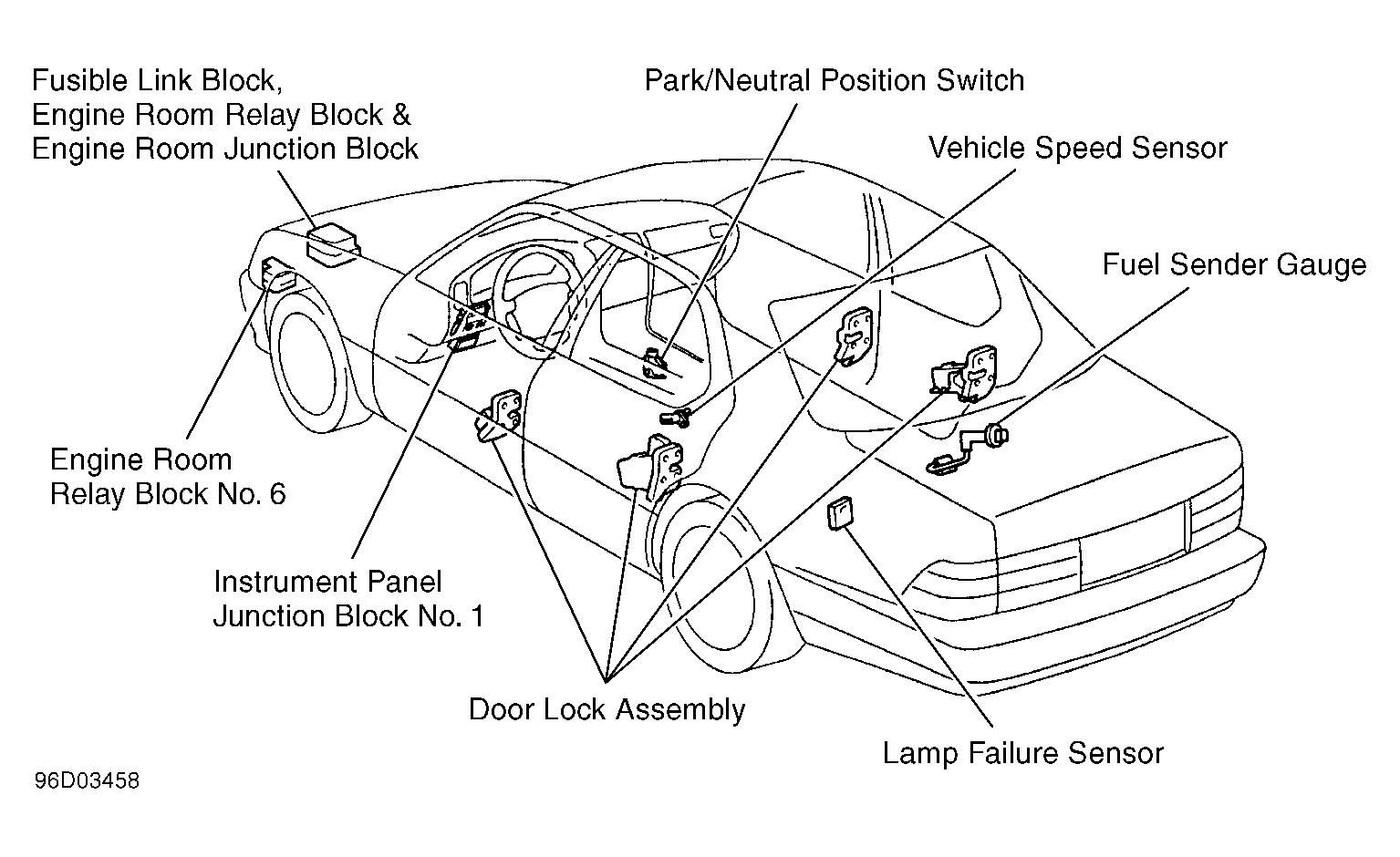

Fig 2: Vehicle Overview
G96D03458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Vehicle Overview
G00102290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: HVAC Components
G96H03460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
