Throttle Opener

Download the full database via torrent (~1.1 TB)
  1. Warm engine to normal operating temperature. Ensure idle speed is within specification. See IDLE SPEED & MIXTURE in ADJUSTMENTS article.
  2. Disconnect and plug vacuum hose at throttle opener located on throttle body. See Fig 1. Start engine and note engine speed. Engine speed should be 700-1000 RPM.
  3. Replace throttle body if engine speed is not within specification. Shut engine off. Reinstall vacuum hose on throttle opener. Start engine and ensure engine returns to proper idle speed.

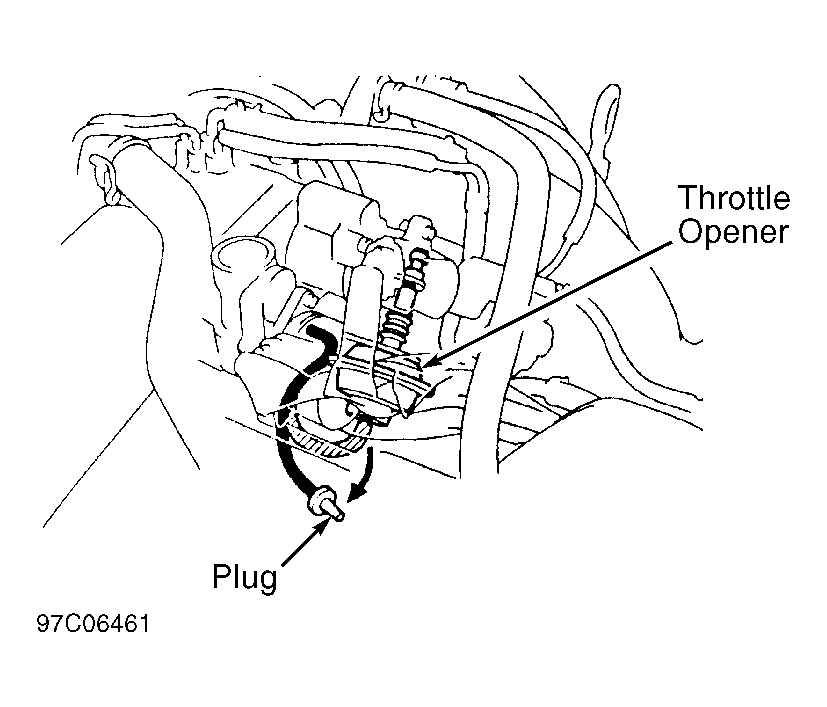

Fig 1: Locating Throttle Opener & Components
G97C06461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
