Charging Systems: Charging: Components

Download the full database via torrent (~1.1 TB)

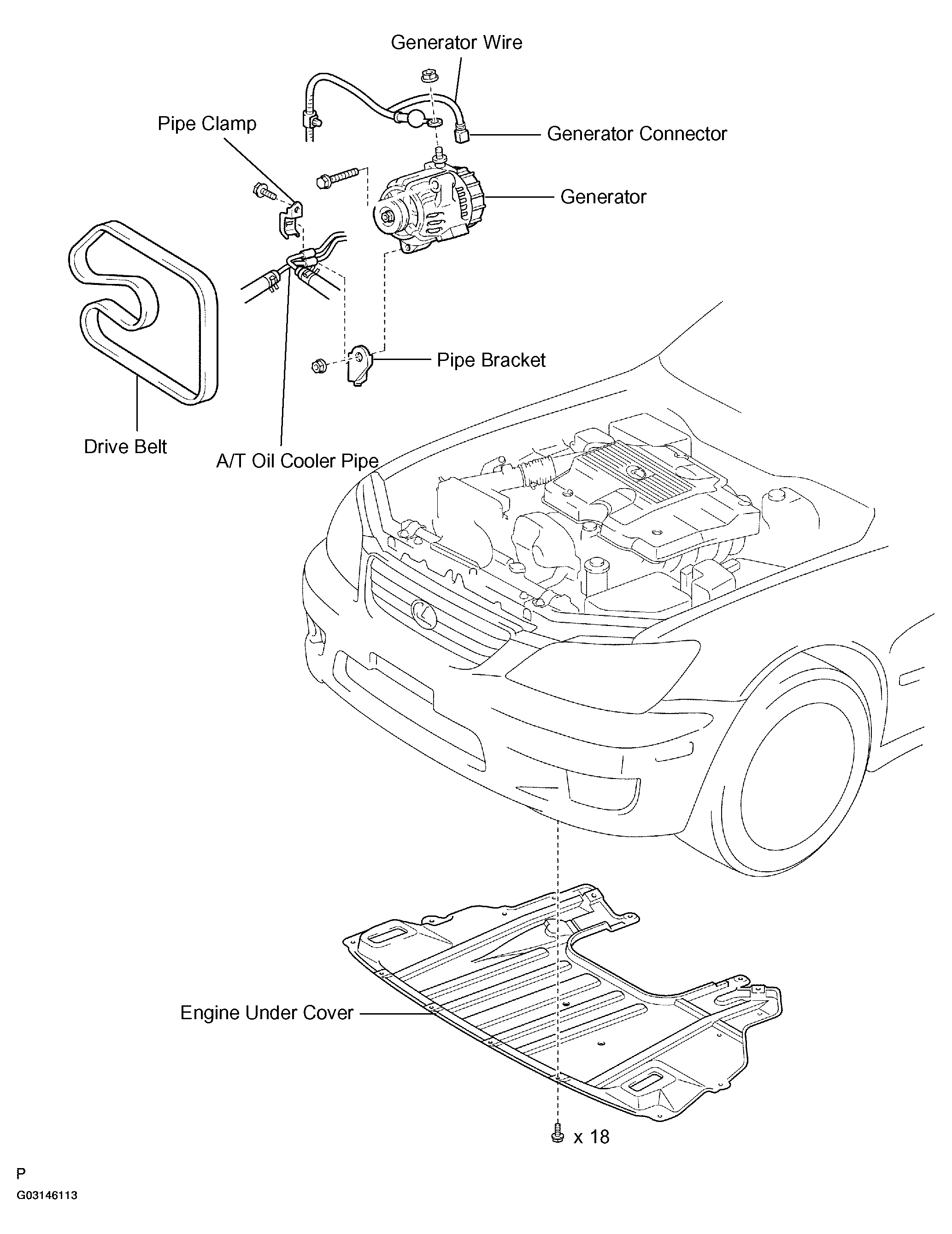

Fig 1: Identifying Components For Generator Removal
G03146113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

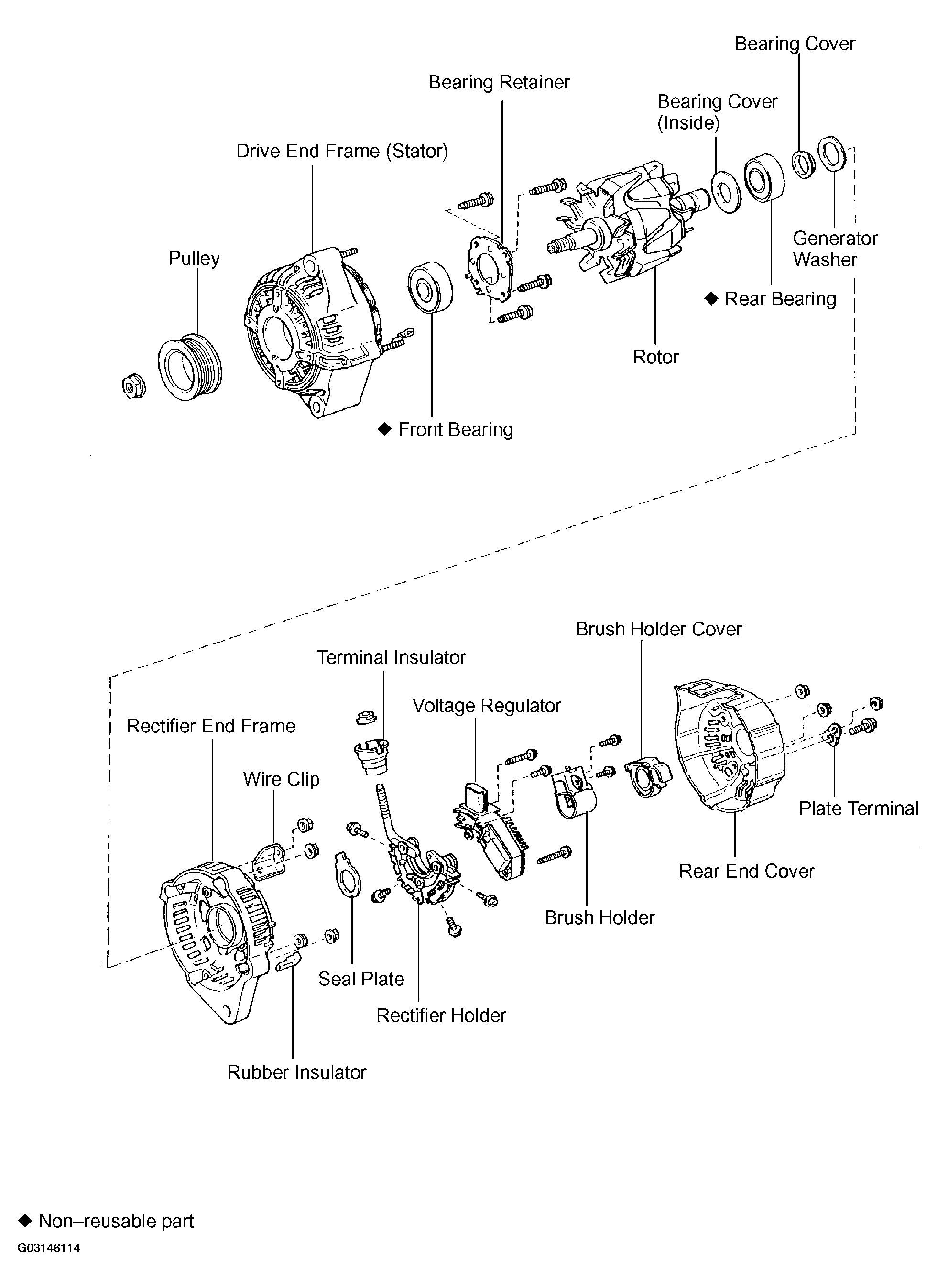

Fig 2: Exploded View Of Generator
G03146114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
