Pattern Select Switch

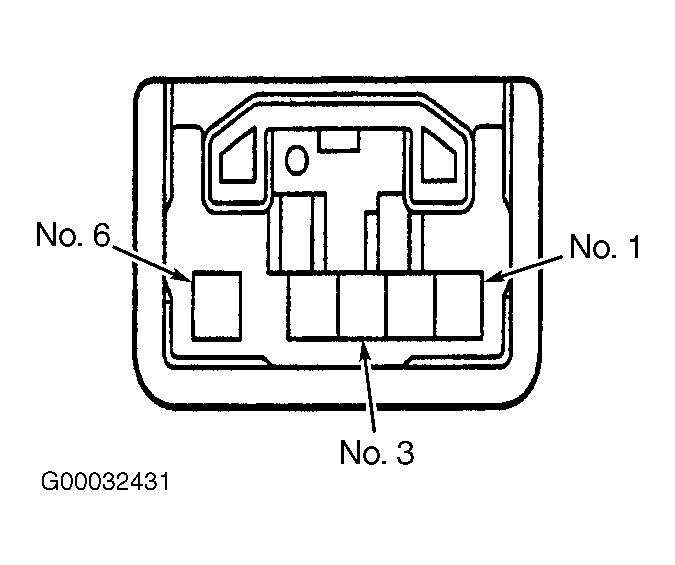

Disconnect pattern select switch connector. See Fig 1. Check continuity between switch terminals with switch at specified positions. See PATTERN SELECT SWITCH TEST table. Replace switch if continuity is not to specification.
PATTERN SELECT SWITCH TEST
| Switch Position | Terminals No. | Specification |
|---|---|---|
| PWR | 1 & 6 | Continuity |
| NORM | 1 & 3; 1 & 6 | No Continuity |
| SNOW | 1 & 3 | Continuity |
