Throttle Body Assembly: Components: Notes
Download the full database via torrent (~1.1 TB)

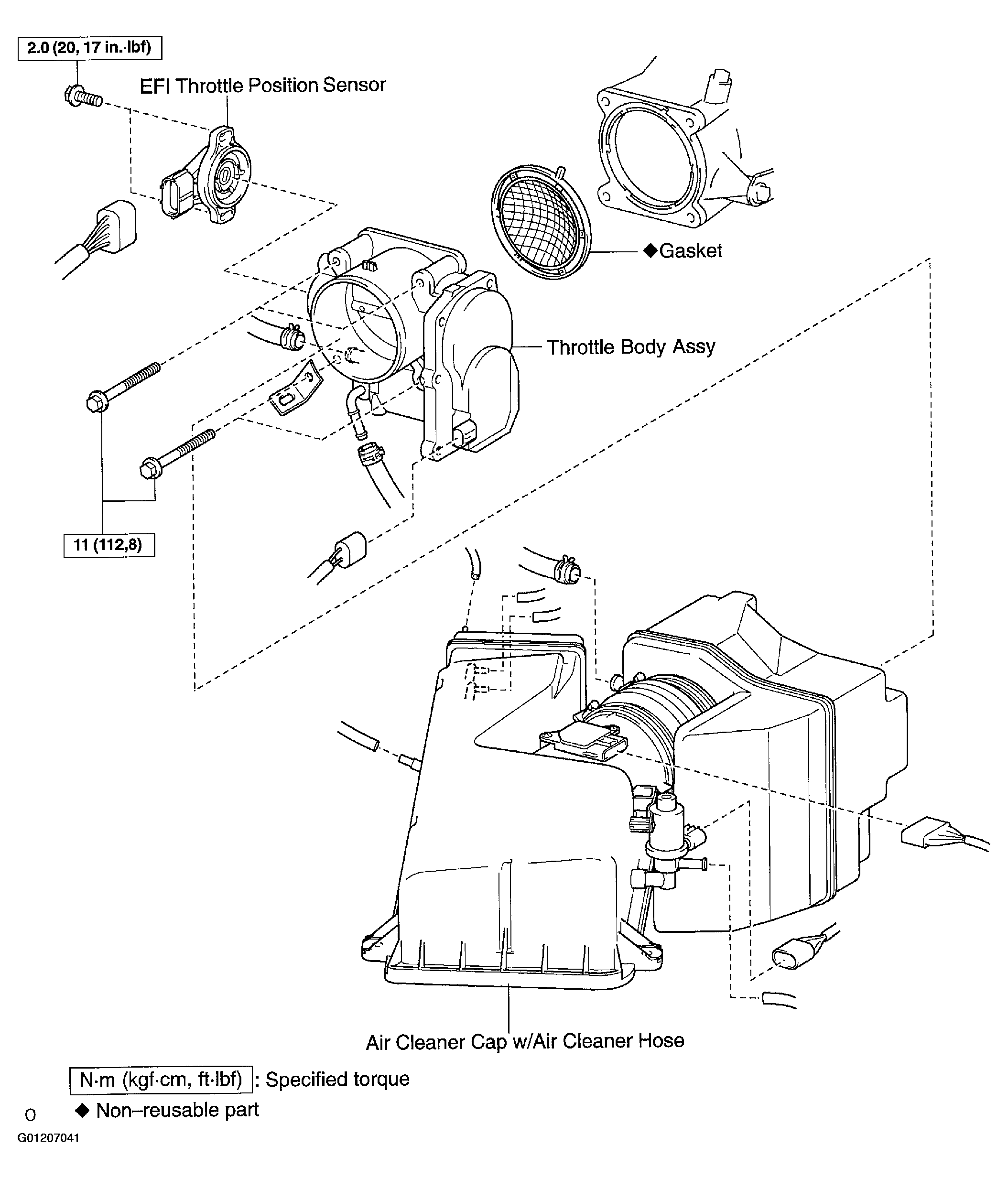

Fig 1: Displaying Throttle Body Assembly Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
