Fuel Pump ASSY: Components: Notes
Download the full database via torrent (~1.1 TB)

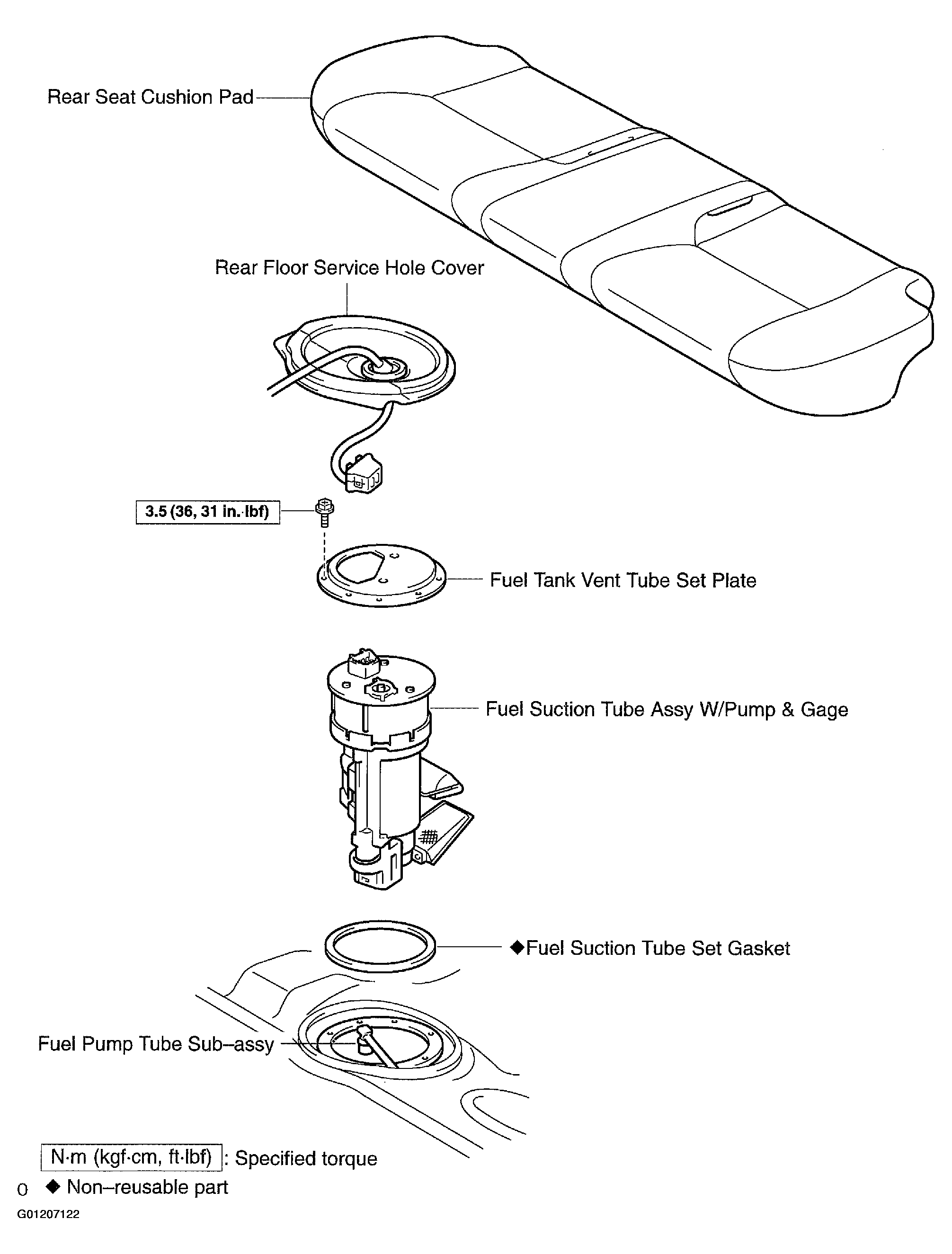

Fig 1: Displaying Fuel Pump Assy Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

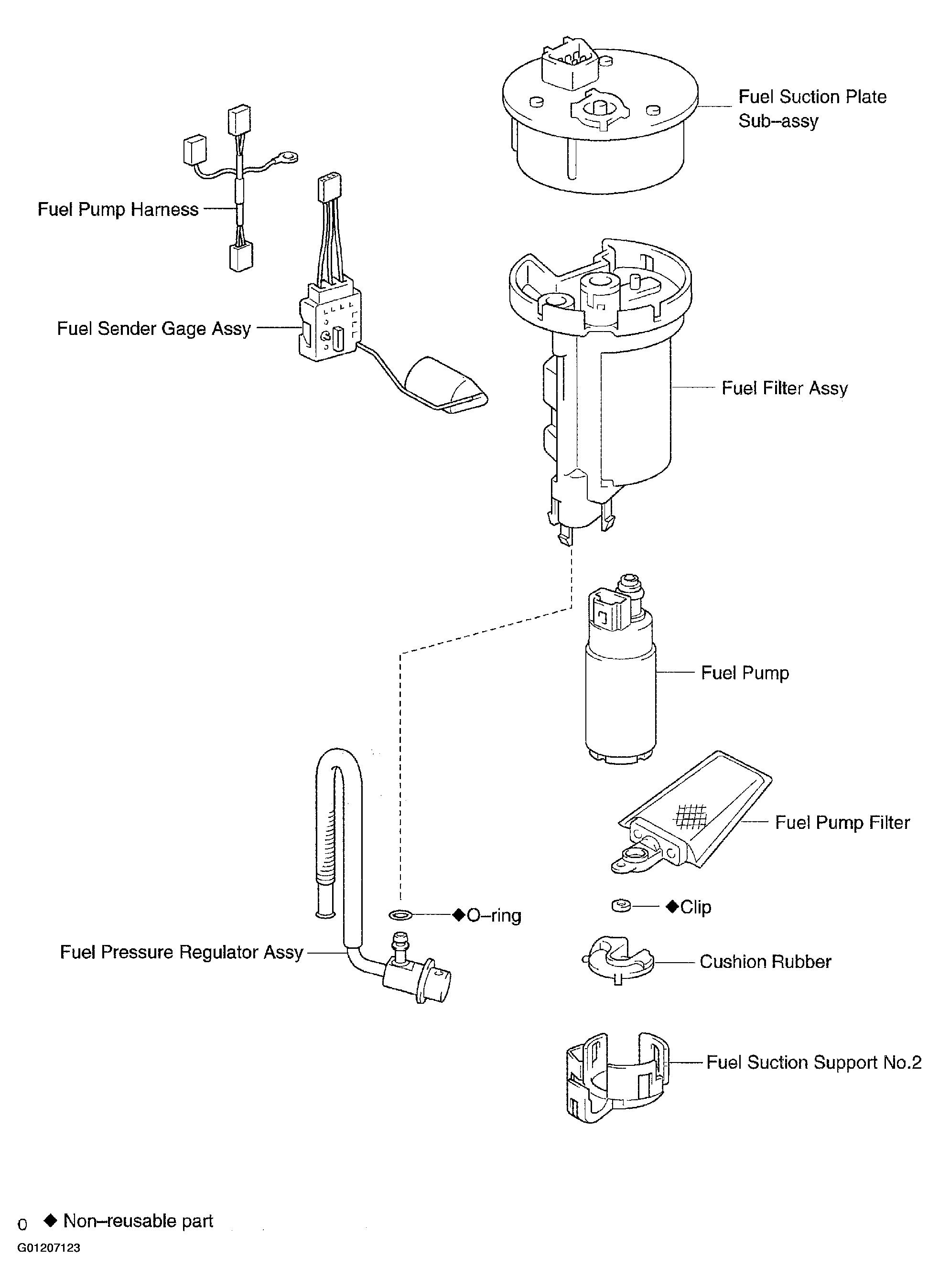

Fig 2: Displaying Fuel Pump Assy Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
